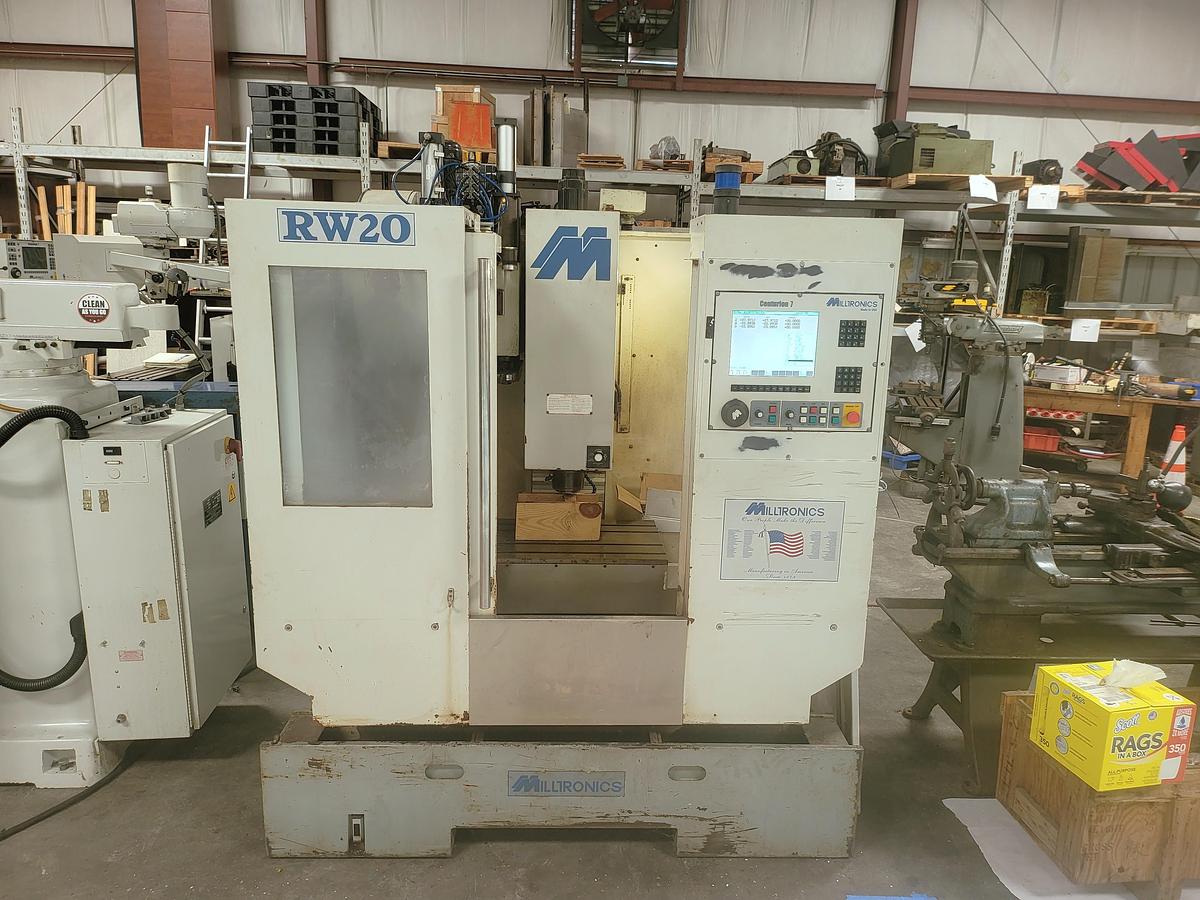

2005 Milltronics RW20 3 Axis VMC with 16 Pos. Side Mount ATC, Centurion 7 Control, Boxed Ways, G Code & Conversational Programming

16 Station Side Mounted Tool Changer

Boxed Way Design

PC Based CPU w/ 6 MB Memory

Conversational or G & M Code Programming

Rigid Tapping

Flood Coolant

Coolant Tank with Pump

3.5" Floppy Disk Drive Interface

RS-232 Port with DNC Interface

The 2005 Milltronics RW20 3 Axis VMC is a reliable used Vertical Machining Center featuring the Milltronics Centurion 7 control system. This machine is equipped with a 30" x 18" table that can handle a maximum load of 1,000 lbs, and offers travel distances of 25" on the X-axis, 20" on the Y-axis, and 20.5" on the Z-axis. It uses a CAT 40 spindle taper, with spindle speeds reaching up to 8,000 RPM and powered by an 18 HP motor. The machine's dimensions are 73" x 78.5" x 102" (LxWxH) and it weighs 8,500 lbs. The RW20's side-mounted 16 position Automatic Tool Changer enhances machining efficiency and supports maximum tool dimensions of 4" in diameter and 9" in length, with a tool weight limit of 15 lbs. The distance from the spindle nose to the table top ranges from 4.5" to 25", allowing versatility in handling different workpieces. Rapid traverse rates reach 1,000 IPM on the X and Y axes, and 800 IPM on the Z-axis, facilitating swift movement during operations. Designed with boxed ways for improved stability and accuracy, this machine also supports both G Code and conversational programming for flexible machining capabilities. Its construction ensures robust performance, making it a dependable choice for a variety of manufacturing applications.
