2014 Haas VF2TR with 30,000 RPM Spindle & TR160 Trunnion Table
2014 Haas VF2TR with 30,000 RPM Spindle & TR160 Trunnion Table
$42,500 (USD)
New York, NY
Description

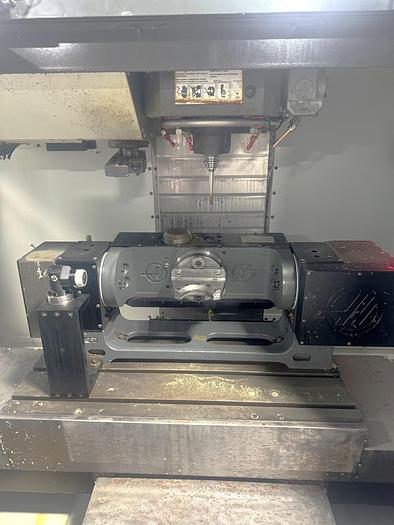

Haas TR160 Trunnion Style Table - Removable
4th Axis Drive & Wiring
5th Axis Drive & Wiring
30,000 RPM Spindle Option
BT30 Taper Spindle
Haas Wireless Probing Package - Both Tool & Part
Table Mounted Tool Probe Extension
Auger Style Chip Conveyor - Not currently being used on machine, but is available
24 Station Side Mounted Tool Changer
Coordinate Rotation & Scaling
Spindle Orientation
User Definable Macros
High Speed Machining
Remote Jog Handle
Rigid Tapping
High Intensity Lighting
Ethernet Interface/Hard Drive
USB Port Interface
RS 232 Port Interface
Wired 195V/260V Electrics
Complete Coolant System with Tank & Pump
**Machine has been used to only cut acrylic and plastic. It does not use coolant often**
**Chip auger is available to go with machine, currently not in use and in storage**

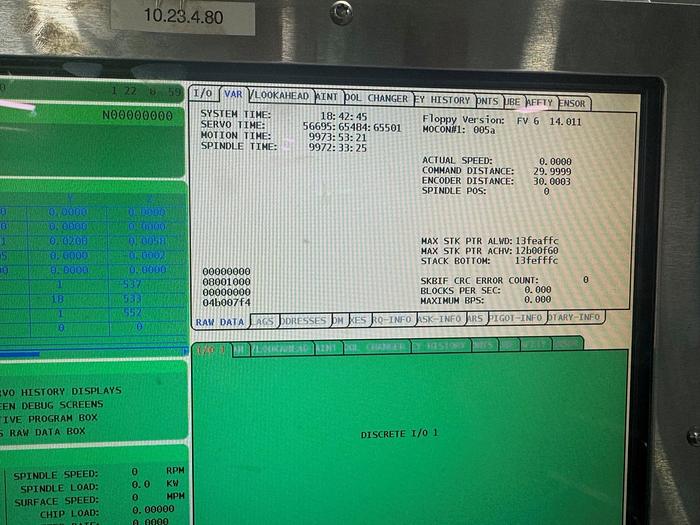

**Spindle Hours 9,972**
Specifications
| Manufacturer | Haas |
| Model | VF2TR with 30,000 RPM Spindle & TR160 Trunnion Table |
| Year | 2014 |
| Condition | Used |
| Stock Number | 119279 |
| Control | Haas CNC Control |
| Table Size | 36" x 14" |
| Maximum Table Load | 1,000 lbs |
| X-Axis Travel | 30" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 20" |
| Spindle Speed | 30,000 RPM |
| Spindle Taper | BT 30 Taper |
| Spindle Motor | 20 HP |
| Tool Magazine Capacity | 24 Station Side Mounted ATC |
| Rapid Traverse Rates | 1,000 IPM |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Maximum Tool Diameter / Length / Weight | 3.5"/ NA / 12 lbs |
| Machine Dimensions LxWxH | 88"x92.5"x104" |
| Machine Weight | 8,000 lbs |
