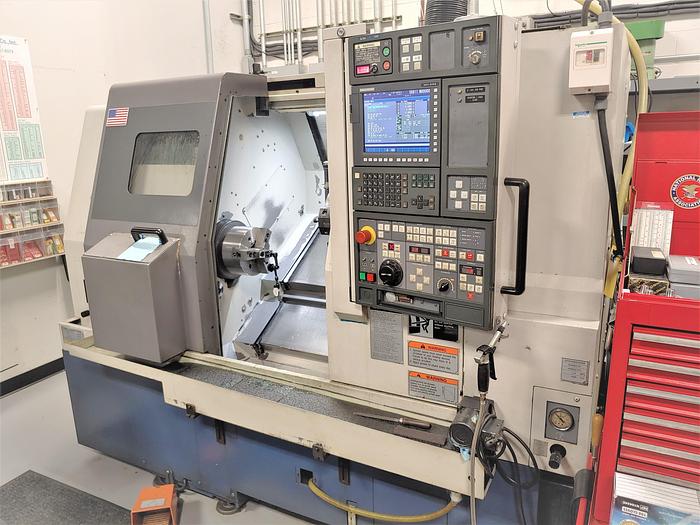

2001 Mori Seiki SL-204SMC
Sold
2001 Mori Seiki SL-204SMC
$32,500 (USD)
Location:New Jersey
Description
Live Milling/Drilling Capability
Subspindle
Full "C" Axis Spindle Rotation on Main & Subspindle
Parts Catcher
Parts Exit Conveyor
Chip Conveyor
8" 3 Jaw Hydraulic Chuck on Main Spindle
6" Chuck for subspindle
MHP 550 High Pressure Coolant
3 Color Machine Status Lights
RS 232 Port for DNC Interface
3.5" Floppy Disk Interface
Slant Bed Design
Boxed Ways
Some Static Tooling
(1) Live Tool Holder Included
All Available Manuals
About 10,000 Run Hours
Specifications
| Manufacturer | Mori Seiki |
| Model | SL-204SMC |
| Year | 2001 |
| Condition | Used |
| Stock Number | 116994 |
| Control | Mori Fanuc MSX-805 III |
| Chuck Sizes Main / Subspindle | 8" Hydraulic Chuck / 6" Chuck |
| Maximum Swing/Over Carriage | 26.8" / 20.09" |
| Maximum Turning Diameter | 15.36" |
| Maximum Turning Length | 12.7" |
| Maximum Distance Between Centers | 29.6" |
| Maximum Bar Capacity | 2.5" |
| X-axis travel | 9.3" |
| Z-Axis Travel | 20.5" |
| C1 Axis Spindle Rotation/C2 Axis Spindle Rotation | .001 / .001 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 2.9" |
| Spindle Speeds | 45 - 4,500 RPM |
| Spindle Motor | 15 HP |
| Subspindle Speed / Subspindle Motor | 60 - 6,000 RPM / 10 HP |
| Rotary Tool Speed / Rotary Motor | 3,000 RPM / 8 HP |
| Number of Turret Positions | 12 Station Turret |
| Machine Dimensions | 92" x 74" x 73" |
| Machine Weight | 10,500 lbs. |
