2019 Haas DS-30Y
Sold
2019 Haas DS-30Y
$137,500 (USD)
Location:Ohio
Description

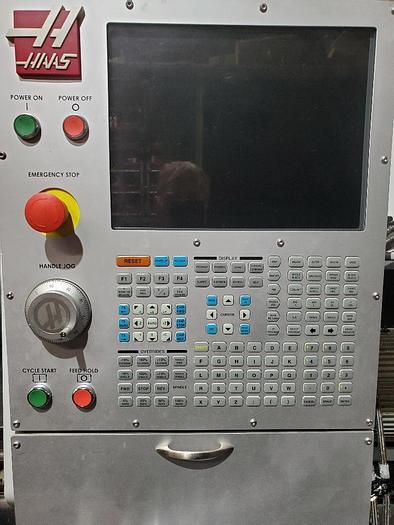

Haas Control w/ WiFi Connection
Y-Axis
Live Milling (4,000 RPM)
Full C Axis Spindle Rotation

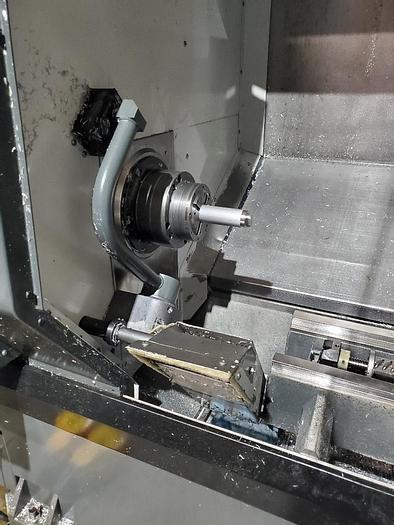

Subspindle
12 Position Turret w/Live Milling

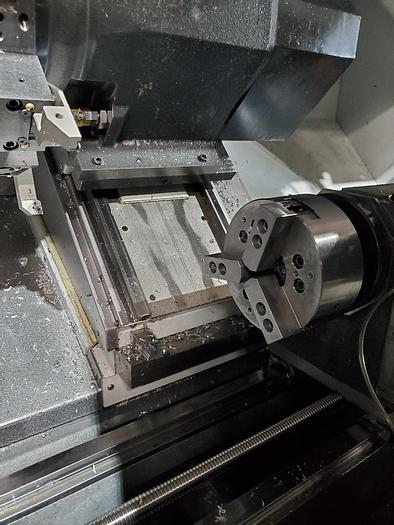

Collet Chuck & 10" 3-Jaw Chuck for Main Spindle
8" 3-Jaw Chuck for Subspindle
Tool Presetter
Parts Catcher

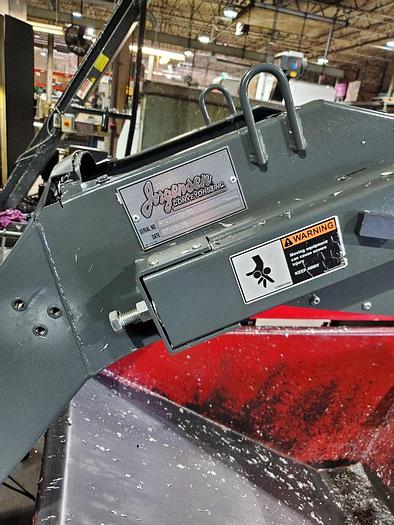

Belt Style Chip Conveyor
Spindle Orientation
Rigid Tapping
CNC Control Cabinet Cooler
Visual Part Programming System
USB Port Interface

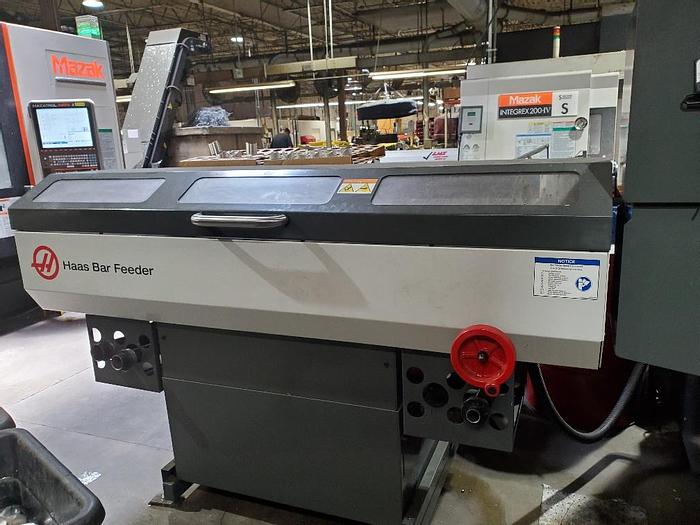

Haas Magazine Barfeed
(1) Axial & (1) Radial Live Tool Holder
(9) Static Tool Holders
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | DS-30Y |
| Year | 2019 |
| Condition | Used |
| Stock Number | 117629 |
| Chuck Sizes Main / Subspindle | 10" / 8" |
| Maximum Swing over Bed | 31.75" |
| Maximum Swing Over Cross Slide | 20.75 |
| Maximum Cutting Diameter | 18" |
| Maximum Cutting Length | 23" |
| X-Axis Travel | 12.5" |
| Y-Axis Travel | +/- 2" |
| Z-Axis Travel | 23" |
| C-Axis Rotation | Full C-Axis |
| Spindle Nose / Bore / Bar Capacity | A2-6 / 3.5" / 3" |
| Spindle Motor | 30 HP |
| Spindle Speeds | 0-4,800 rpm |
| Subspindle Nose / Bore / Bar Capcity | A25 / 2.4" / 2" |
| Subspindle Motor | 20 hp |
| Subspindle Speed | 4,800 rpm |
| Turret Type | 12 Position BMT65 |
| Rotary Tool Speed / Rotary Motor | 4,000 rpm / 5 hp |
| Rapid Traverse Rates X, Y / Z | 472 ipm / 1,200 ipm |
| Machine Dimensions LxWxH | NA |
| Machine Weight | 14,600 lbs |
