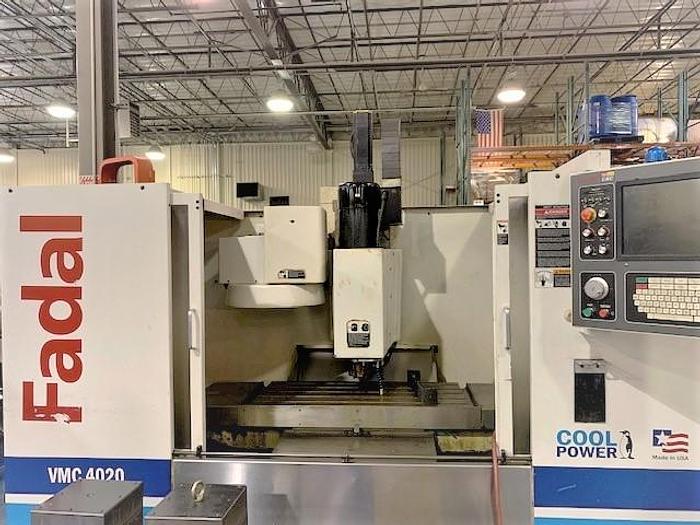

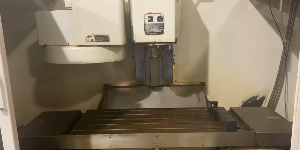

2004 Fadal VMC4020HT
2004 Fadal VMC4020HT
$19,500 (USD)
Location:New Jersey
orCall (863) 439-6066
Description

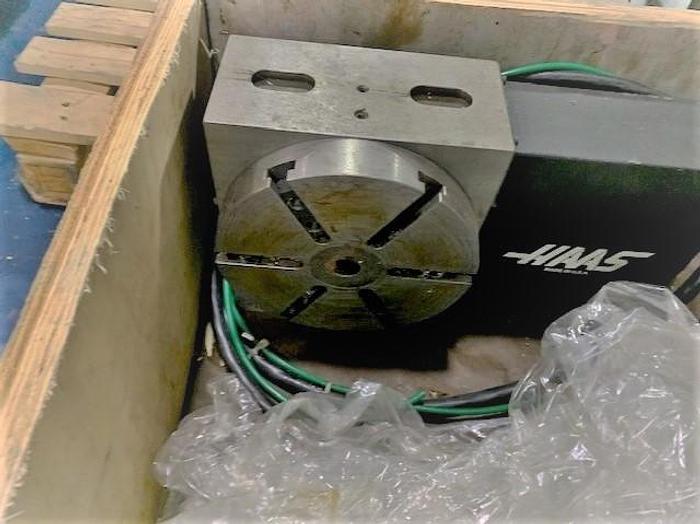

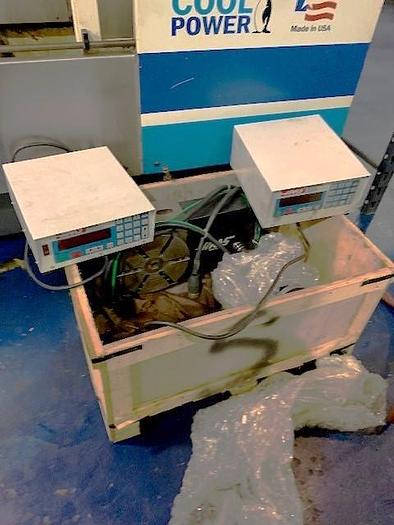

Haas 4th Axis Indexer Unit
Tailstock for Indexer

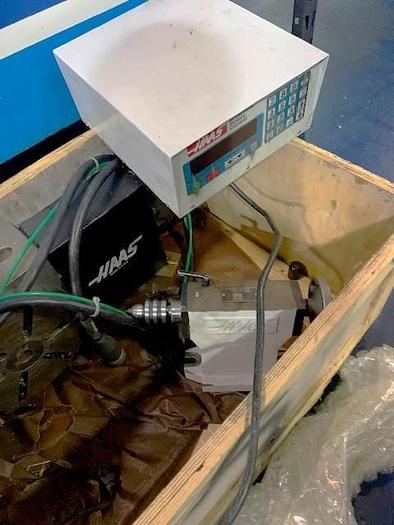

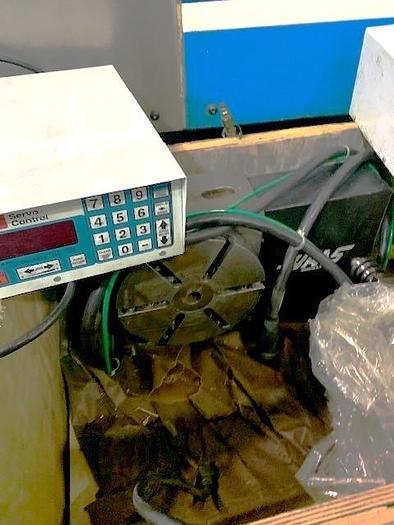

Control Box for Indexer Unit
21 Station Tool Changer
10,000 RPM Spindle
Boxed Ways
High Torque Spindle Motor 2 Speed Spindle Drive RS 232 Port Interface

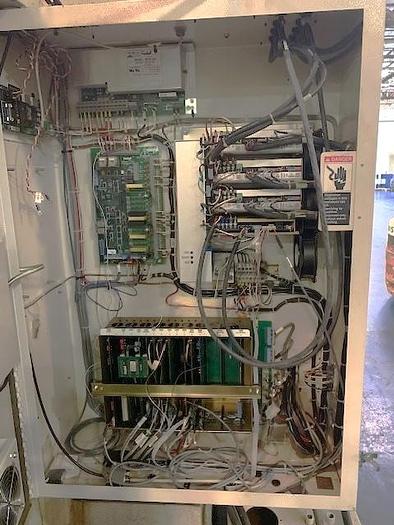

Multi Processor Control

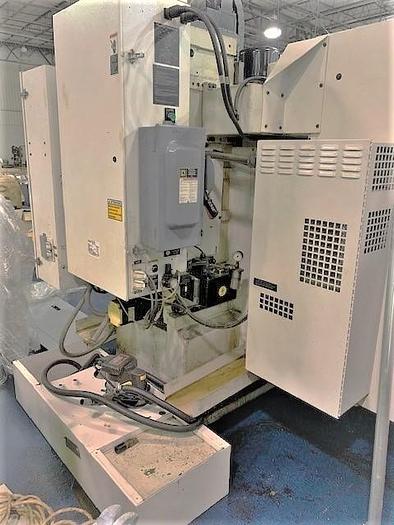

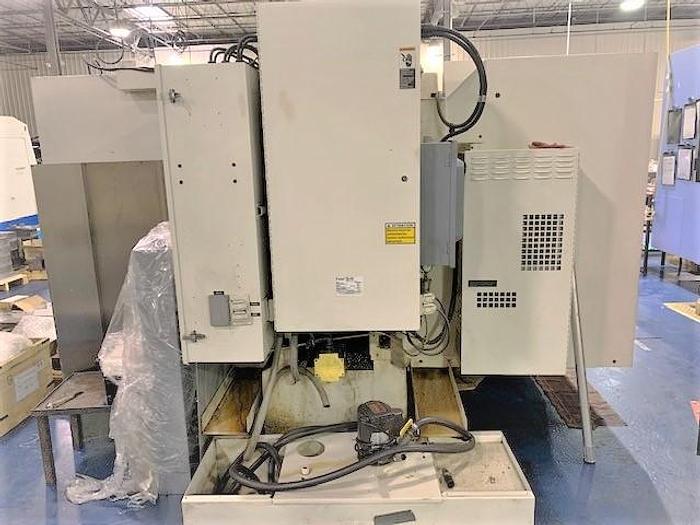

Coolant System with Tank & Pump
Wired 220V Electrics

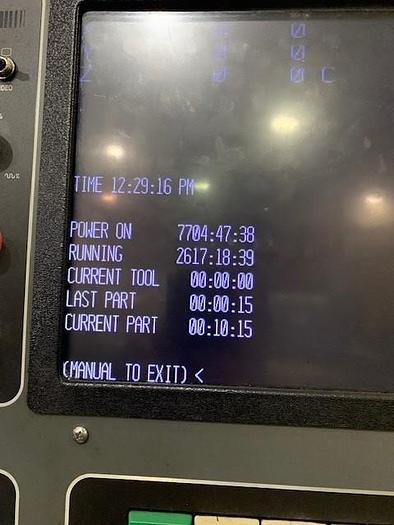

**ONLY 7,704 Power On Hours**
**Just 2,617 Running Hours**
Specifications
| Manufacturer | Fadal |
| Model | VMC4020HT |
| Year | 2004 |
| Condition | Used |
| Stock Number | 117764 |

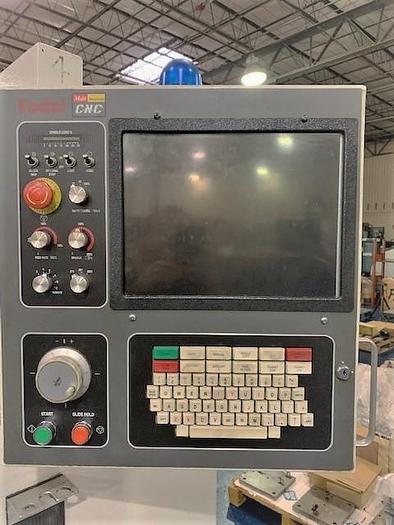

| Control | Fadal Multi Processor Control |
| Table Size | 48" x 20" |
| Maximum Table Load | 3,000 lbs. |
| Distance Spindle Nose to Table Top | 4" - 24" |
| X-Axis Travel | 40" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 20" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 10,000 rpm |
| Spindle Motor | 22.5 HP |
| Tool Magazine Capacity | 21 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 4.5" / 15" / 15 lbs |
| Rapid Traverse Rates (X, Y, Z) | 800 IPM |
| Machine Dimensions LxWxH | 116" x 87" x 104" |
| Machine Weight | 11,550 lbs. |
