2000 Mazak Integrex 200SY
Sold
2000 Mazak Integrex 200SY
$27,500 (USD)
Location:Florida
Description

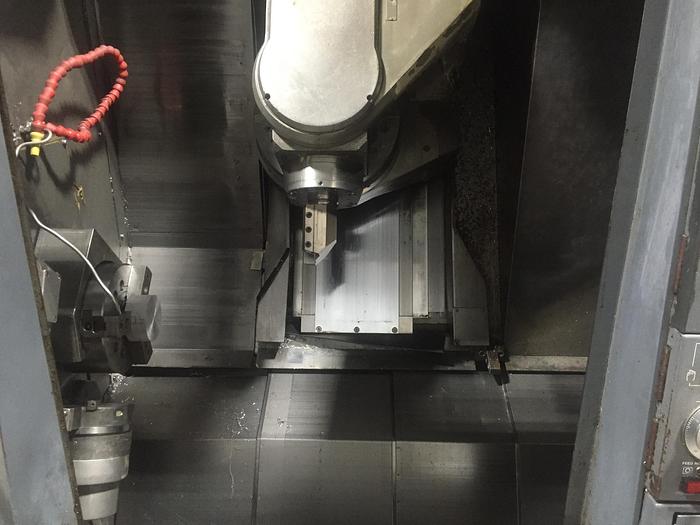

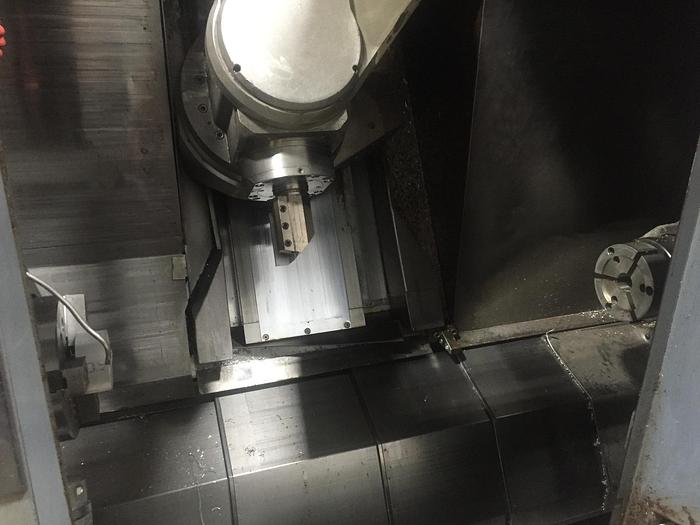

B Axis Pendulum Head
Y Axis Capability
Subspindle
Full C Axis on Both Spindles
Live Milling on Upper Turret
10,000 RPM Spindle on Mill Head
80 Position Toolchanger
Chip Conveyor
Automatic Tool Eye
Complete Coolant System
Chuck Air Blast
Milling Spdl Synch. Tapping
3.5" Floppy Disk Drive
PCMCIA Interface - 2 Slots
IC Memory Card Interface
RS-232C Port for DNC Interface
All Available Manuals
*This machine was originally fitted with a Mazak gantry robot loader, which has been removed, it is now being used as a stand alone machine.
Specifications
| Manufacturer | Mazak |
| Model | Integrex 200SY |
| Year | 2000 |
| Condition | Used |
| Stock Number | 117773 |
| Machine Control | Mazatrol Fusion 640MT |

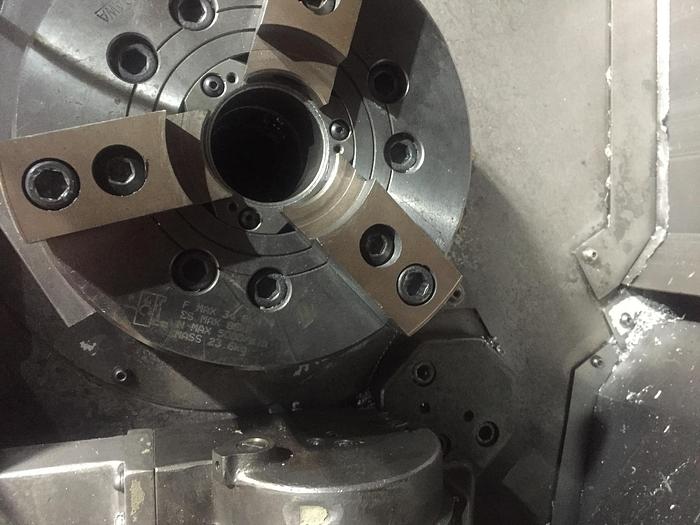

| Chuck Sizes Main / Subspindle | 8" 3-Jaw Hydraulic / 6" 3-Jaw Hydraulic |
| Maximum Swing | 26" |
| Maximum Cutting Diameter | 26" |
| Maximum Machining Length | 40" |
| Spindle Nose / Bore / Bar Capacity | A2-6 / 2.99" / 2.5" Both Spindles |
| Spindle Motor | 30/20 hp |
| Subspindle Motor | 25/20 HP |
| Spindle Speed / Sub Spindle Speed | 35-5,000 RPM / 35-5,000 RPM |
| Milling Spindle Motor | 25 hp |
| Milling Spindle Speed | 10,000 rpm |
| Tool magazine capacity | 80 atc |
| X-Axis Travel | 22.83" |
| Y-Axis Travel | +/- 3.15" |
| Z-Axis Travel | 41.14" |
| C-Axis Rotation | .001 Degree |
| B-Axis Tilt Movement | 225 Degrees |
| W-Axis Travel Subspindle | 41.34" |
| Rapid Traverse Rates (X, Y, Z) | 1181 ipm / 590 ipm / 1299 ipm |
| Rapid Traverse Rate C Axis | 400 RPM |
| Machine Dimensions LxWxH | 200"x95"x102" |
| Machine Weight | 25,960 lbs |
