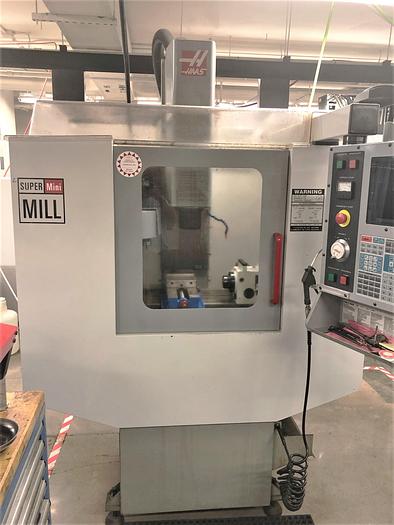

2002 Haas Super Mini Mill
Sold
2002 Haas Super Mini Mill
$34,500 (USD)
Location:Texas
Description

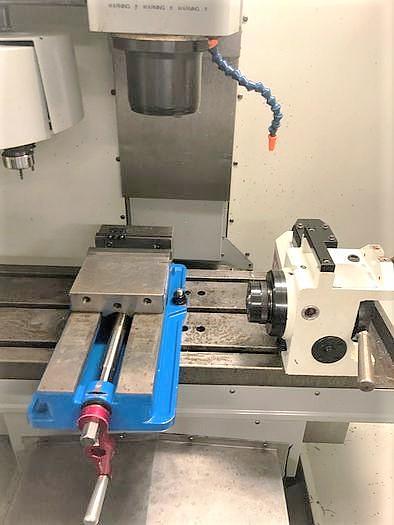

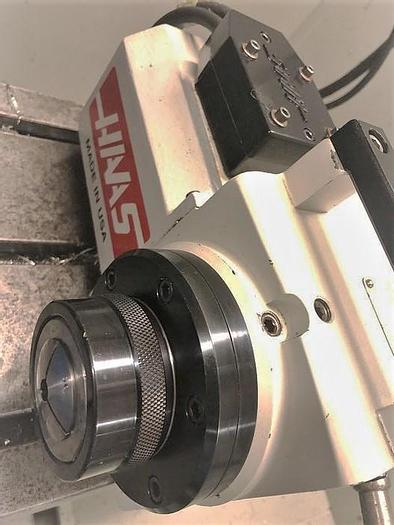

Haas 4th Axis HA5C Collet Indexer
4th Axis Drive & Wiring
16 MB Programming Memory
Rigid Tapping
Visual Quick Code Programming (conversational)
Top Plastic Coolant Splash Guard
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
Coolant Tank with Pump
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | Super Mini Mill |
| Year | 2002 |
| Condition | Used |
| Stock Number | 117811 |

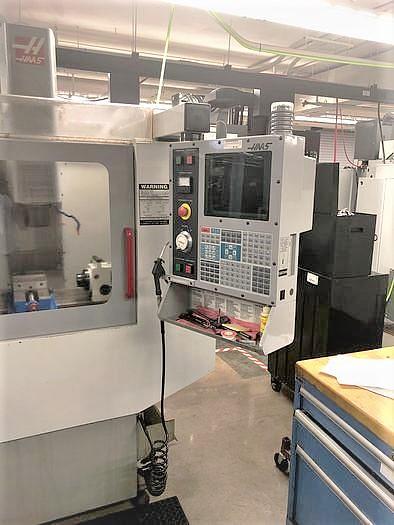

| Machine Control | Haas CNC Control |
| Table Size | 36" x 10" |
| Maximum Table Load | 500 lbs |
| X-Axis Travel | 16" |
| Y-Axis Travel | 12" |
| Z-Axis Travel | 10" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 10,000 RPM |
| Spindle Motor | 15 HP |
| Rapid Traverse Rates | 1200 IPM |
| Tool Magazine Capacity | 10 Station ATC |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Machine Dimensions LxWxH | 91"x88"x100" |
| Machine Weight | 6,000 lbs |
