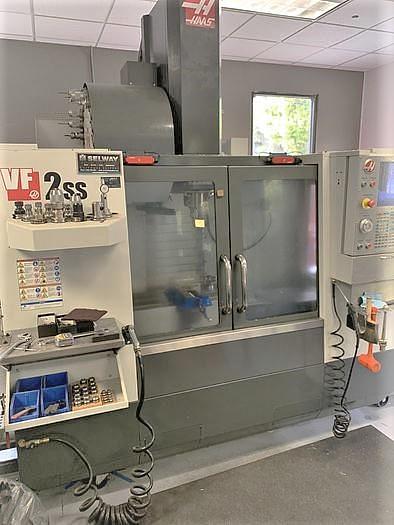

2014 Haas VF2SS
Sold
2014 Haas VF2SS
Location:California
Description
Renishaw Probe System Tool & Part Probing
Auger Style Chip Conveyor
Programmable Coolant Nozzle
24+1 Position Side Mounted Tool Changer
User Definable Macros
M19 Spindle Orientation
Coordinate Rotation & Scaling
Visual Part Programming System
Compensation Tables
Rigid Tapping
3.5" Floppy Disk Drive Interface
RS 232C Port Interface for DNC Operation
Current Software Version M18.18B
All Available Manuals
ONLY 4,351 Run Hours
Approximately 1,500 Spindle Cutting Hours
Price new as equipped at $80,980
Specifications
| Manufacturer | Haas |
| Model | VF2SS |
| Year | 2014 |
| Condition | Used |
| Stock Number | 117850 |
| Table size | 36" x 14" |
| Max table load | 1,500 lbs |
| X axis travel | 30" |
| Y axis travel | 16" |
| Z axis travel | 20" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4" - 24" |
| Number of tool positions | 24 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 98" x 92" x 100" |
| Machine weight (approximately) | 7,800 lbs |
