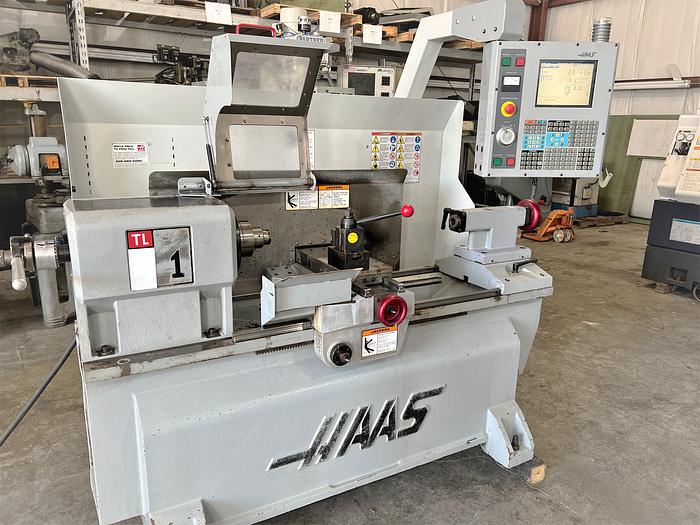

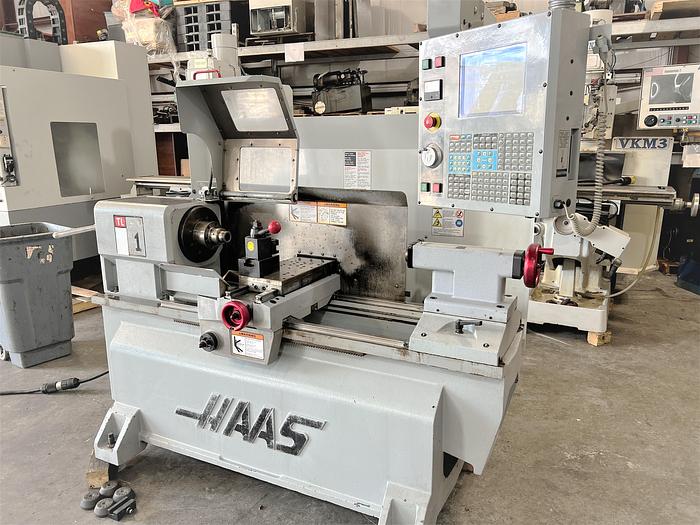

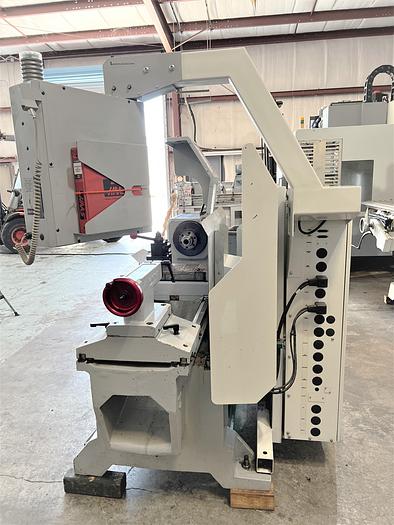

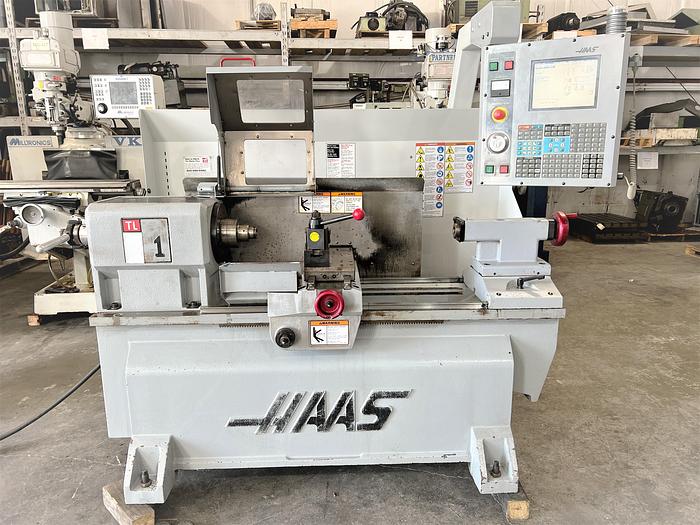

2004 Haas TL-1
Sold
2004 Haas TL-1
$17,950 (USD)
Location:Florida
Description

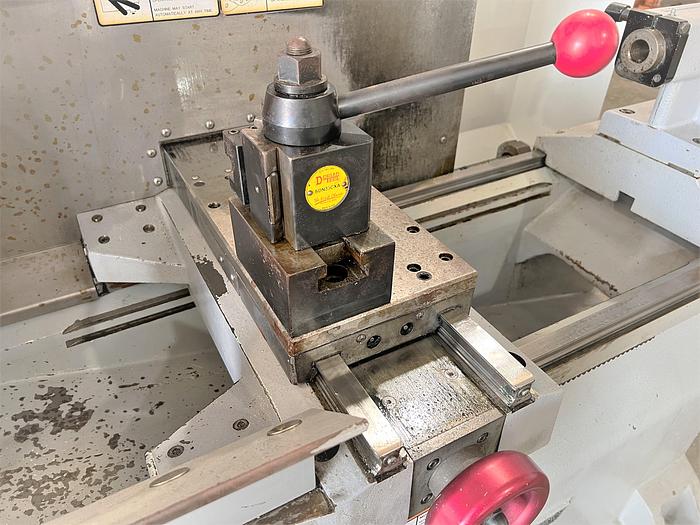

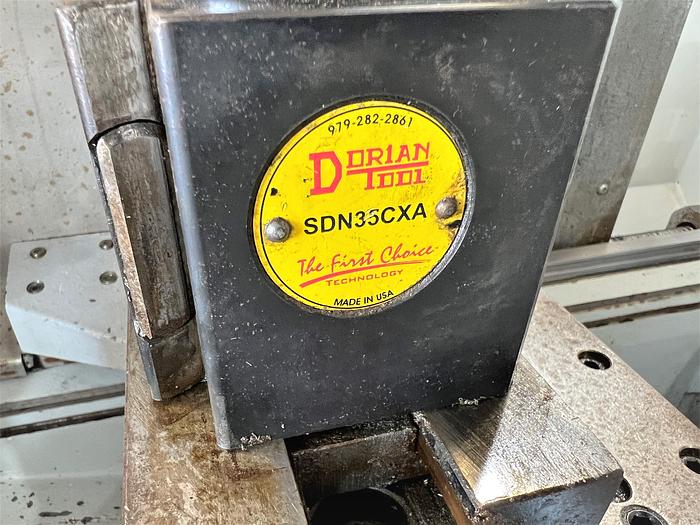

Dorian SDN35CXA 2 Station Tool Post
(2) Dorian D35CXA-1 Holders

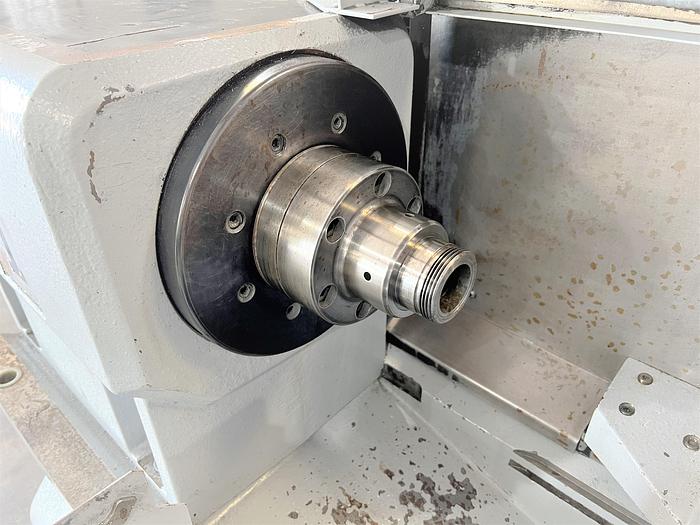

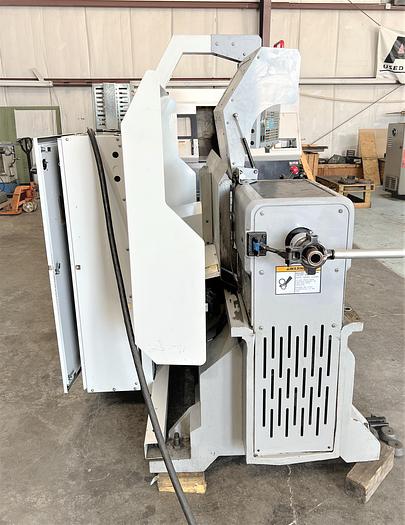

5C Collet Spindle Nose w/Manual Lever

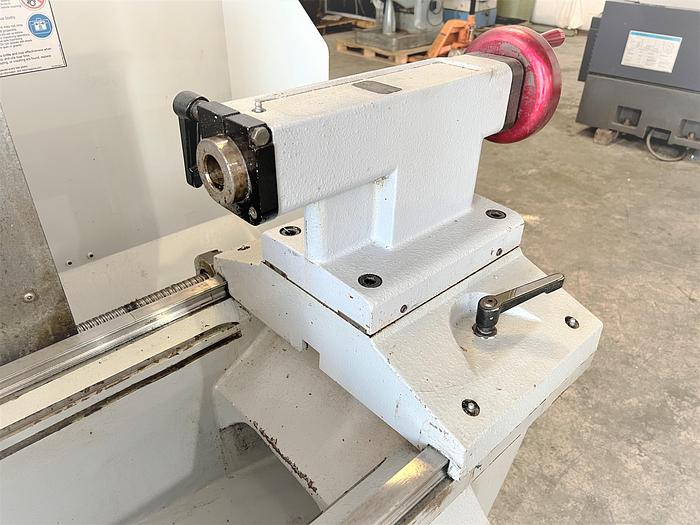

Tailstock
Work Light Flip Down Safety Enclosure Manual Hand Wheels

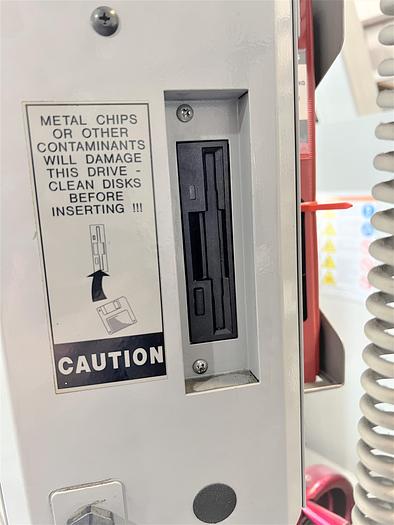

3.5" Floppy Disk Drive Interface

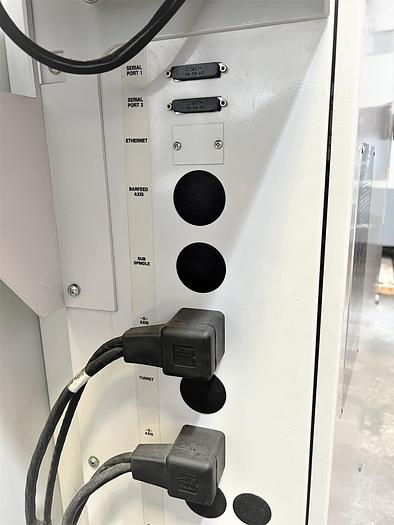

(2) RS 232 Port Interface Ports Vector Drive Spindle
Integral Chip-Flow Channel

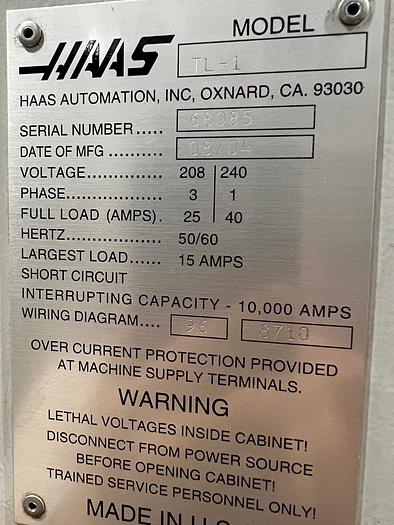

Capable of either 208V Three Phase or 240V Single Phase Power

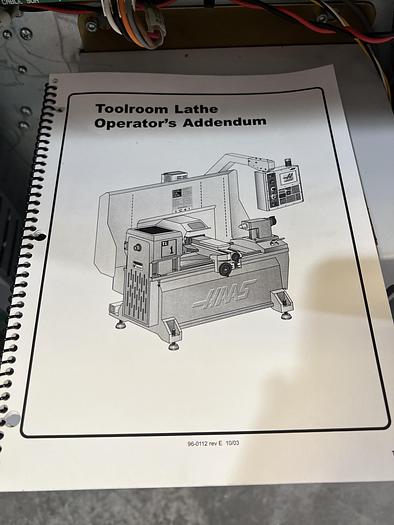

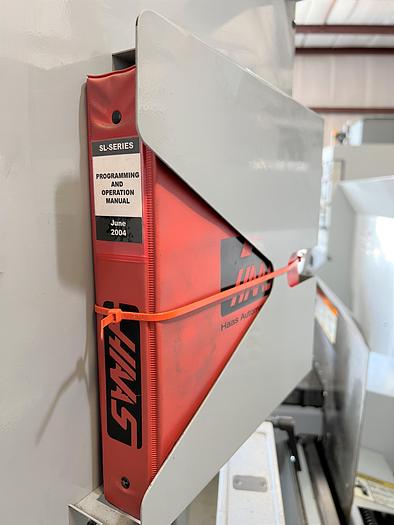

Haas Manual as well as Tool Room Lathe Addendum Book

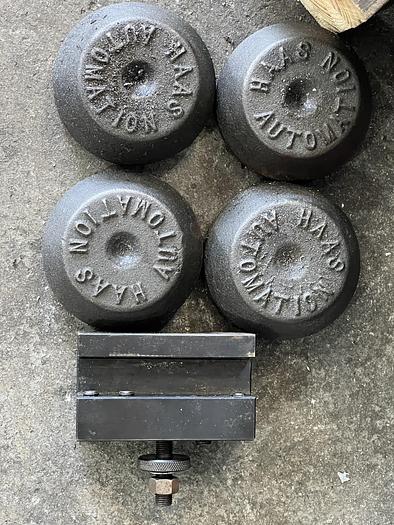

(4) Leveling Pads

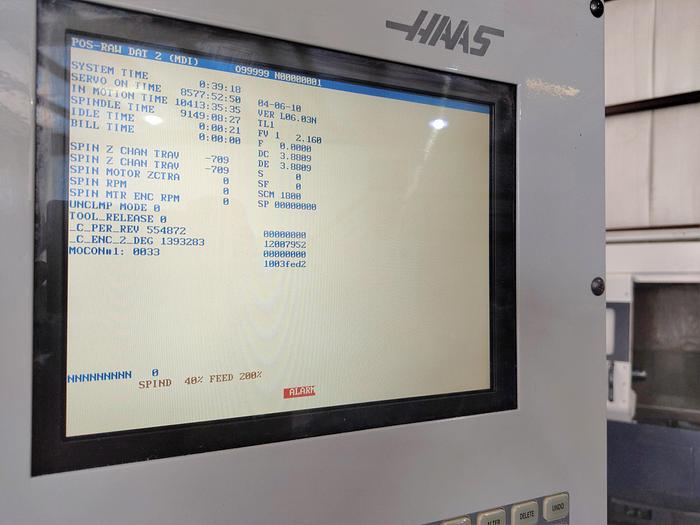

Spindle Hours 9,149
Specifications
| Manufacturer | Haas |
| Model | TL-1 |
| Year | 2004 |
| Condition | Used |
| Stock Number | 117910 |

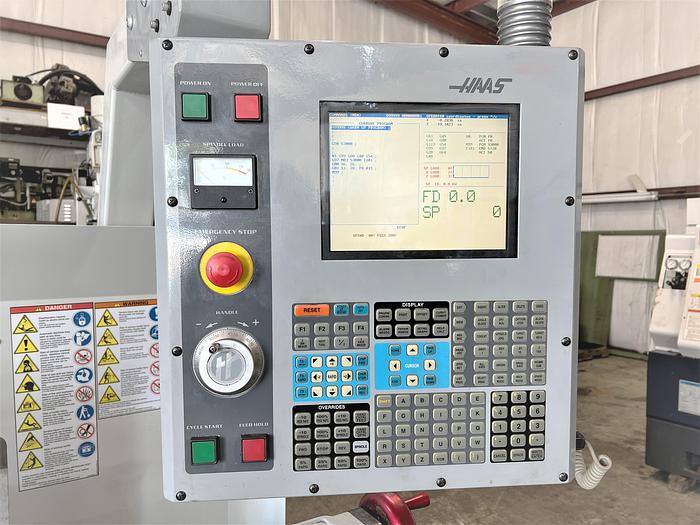

| Control | Haas CNC Control |
| Chuck Size | 5C Collet Nose |
| Maximum Swing over Bed | 16" |
| Maximum Swing Over Cross Slide | 8.5" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 30" |
| X-axis travel | 8" |
| Z-Axis Travel | 30" |
| Spindle Nose / Spindle Bore | A2-5" / 2.31" |
| Spindle Speeds | 1,800 RPM |
| Spindle Motor | 7.5 HP |
| Number of Turret Positions | Dorian Tool Post |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Machine Dimensions | 84" x 52" x 82" |
| Machine Weight | 4,000 lbs. |
