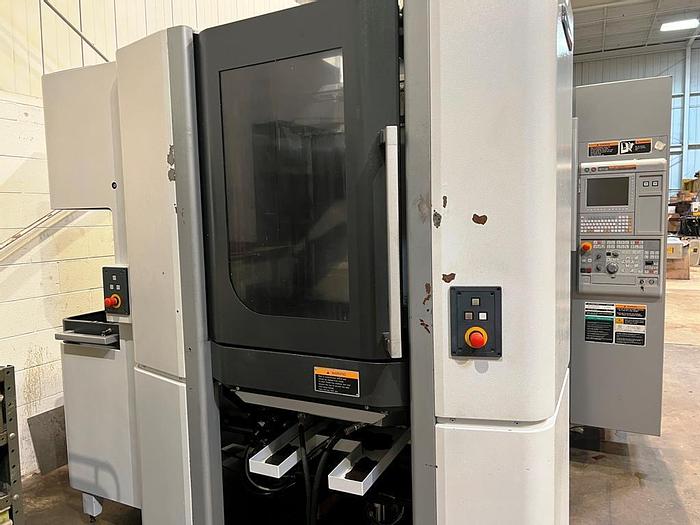

2013 Mori Seiki NHX4000
2013 Mori Seiki NHX4000
Contact us for price
Location:Illinois
orCall (863) 439-6066
Description

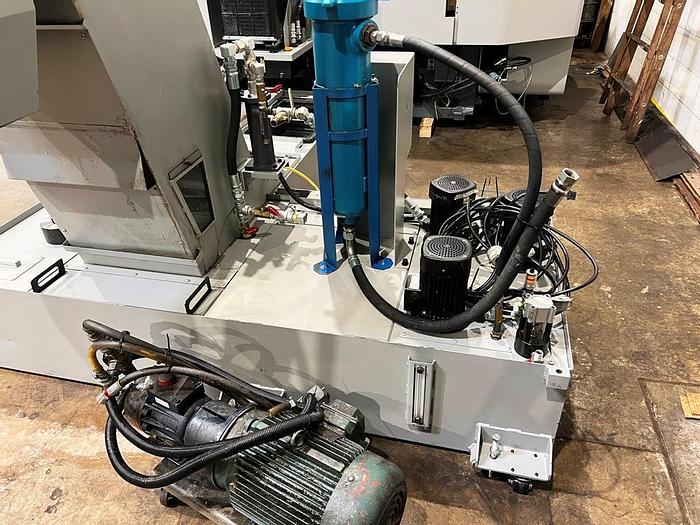

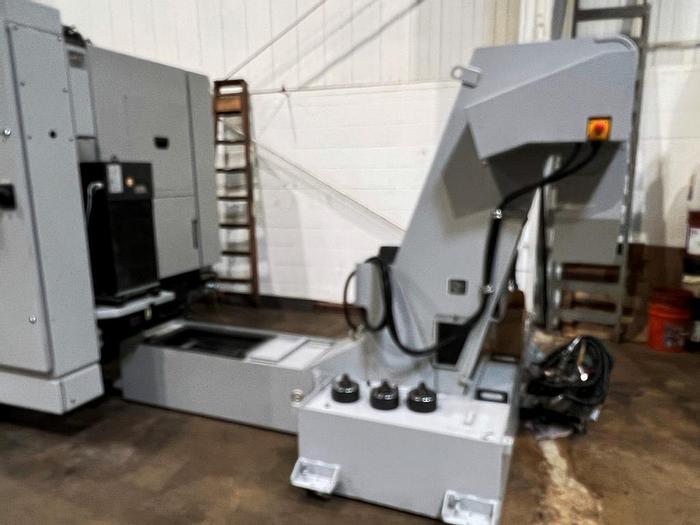

2 Pallet Changer System Full 4th Axis Rotary Table Coolant Through the Spindle Tool Life Management System Flood Coolant Chip Conveyor Rigid Tapping All Available Manuals
220V 3 Ph 60 Hz
Full Load 129 Amps
Specifications
| Manufacturer | Mori Seiki |
| Model | NHX4000 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 118059 |

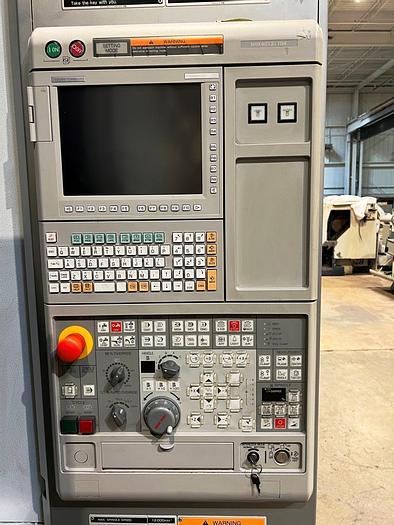

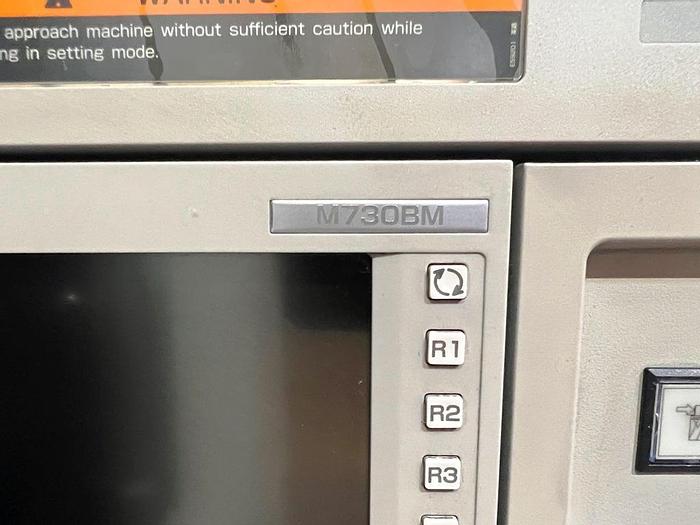

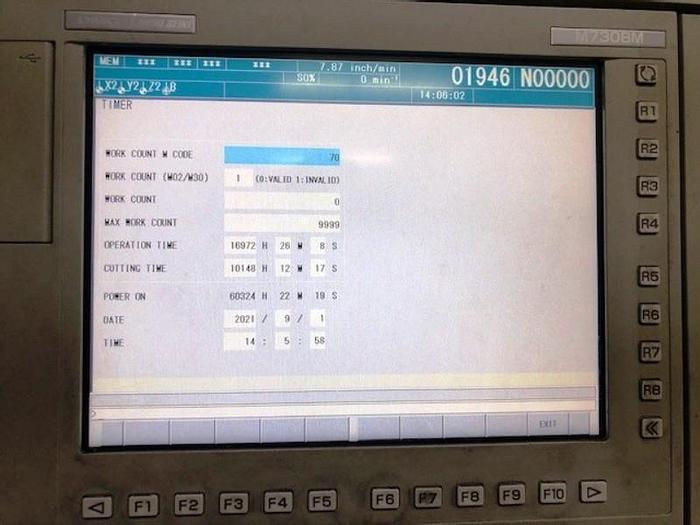

| Machine Control | Mitsubishi M730BM |
| Pallet Size / Number of Pallets | 15.7" x 15.7" / 2 Pallets |
| Pallet Indexing | .001 Degrees |
| Maximum Table Load | 880 lbs |
| X-Axis Travel | 22" |
| Y-Axis Travel | 22" |
| Z-Axis Travel | 26" |
| Spindle Nose | CAT 40 |
| Spindle Speed | 12,000 RPM |
| Spindle Motor | 40 HP |
| Maximum Part Size (DxH) | 24.8"x35.4" |

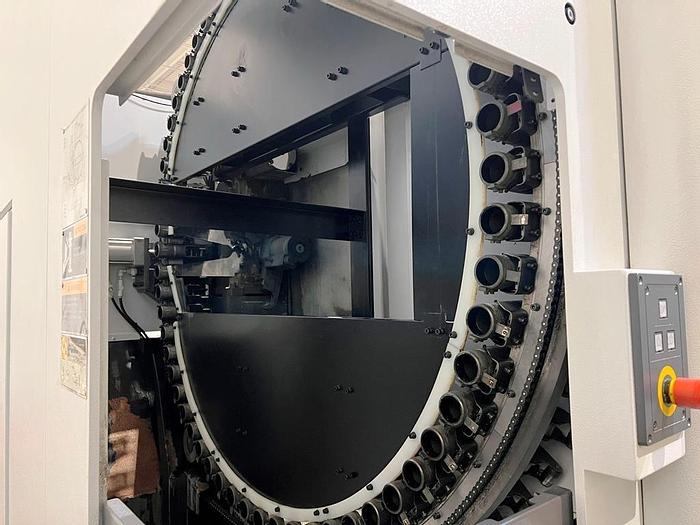

| Tool Magazine Capacity | 60 ATC |
| Maximum Tool Diameter / Length / Weight | NA/ 15.7" / 17.6 lbs |
| Rapid Traverse Rates | 2,362 IPM |
| Machine Dimensions LxWxH | 107.1"x165.9"x108" |
| Machine Weight | 18,000 lbs |
