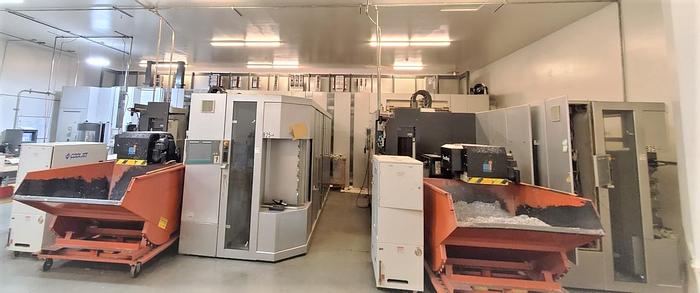

2006 Toyoda FH-550S Two Machine Manufacturing Cell System with 45 Pallets
2006 Toyoda FH-550S Two Machine Manufacturing Cell System with 45 Pallets
Contact us for price
Location:Oregon
orCall (863) 439-6066
Description
Installed New in 2007
2 Machine Cell System
45 Pallet System Comprised of 3 Levels with 15 Pallets per Level
Two Loading Station

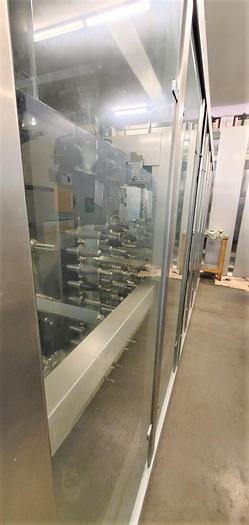

308 Station Matrix Type Tool System with 4 Pots Full 4th Axis Rotary Table
15,000 RPM Spindle with Gear Box 1000 PSI Cool Jet High Pressure Coolant Through Spindle Renishaw OMP600 Part Probing System
Renishaw Laser Tool Setting Probe Chip Conveyor
Overhead Coolant Rigid Tapping Remote Jog Handle
Spindle Oil Chiller
RS-232 C Port for DNC Interface
Some Tombstones Included, but NO Fixturing
Some Tool Holders Included
Specifications
| Manufacturer | Toyoda |
| Model | FH-550S Two Machine Manufacturing Cell System with 45 Pallets |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118065 |
| Control | Fanuc 31i Control |
| Number of Machines | 2 Units |
| Pallet Size / Number of Pallets | 21.65" x 21.65" / 45 Pallet System (3 Levels x 15 Pallets) |
| Table Indexing | 0.001 Degree Indexing - Full 4th Axis |
| Maximum Table Load | 1,760 lbs. |
| X-Axis Travel | 29.52" |
| Y-Axis Travel | 31.5" |
| Z-Axis Travel | 33.46" |
| Spindle Taper | #50 Taper |
| Spindle Speeds | 15,000 RPM - Gearbox |
| Spindle Motor | 30 HP |
| Rapid Traverse Rates | 2,362 IPM |
| Number of Tool Positions | 308 Tool Station Matrix with 4 Pots |
| Machine Dimensions | 284" x 126" x 126" (each machine only) |
| Machine Weight | 35,200 lbs. (each machine only) |
