2014 Haas DS-30SS
Sold
2014 Haas DS-30SS
Location:Texas
Description
Dual Spindles

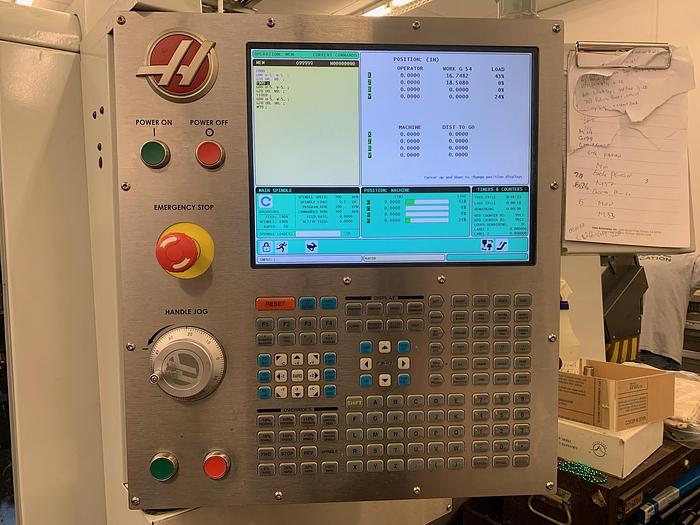

15" Color LCD Monitor
USB Port
Rigid Tapping
3" Bar Capacity Option
Automatic Tool Eye
Auto Jet Air Blast
Early Power Failure Detection Module
Chip Conveyor
Parts Catcher

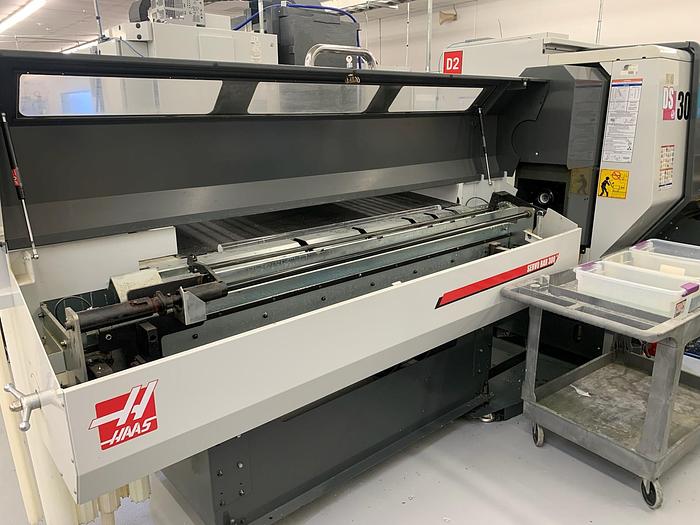

Haas Barfeeder
A6-S30H Pull Back S30 Collet Chuck
A5-S30TLS-S30 Tru Length Collet Chuck
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | DS-30SS |
| Year | 2014 |
| Condition | Used |
| Stock Number | 118087 |
| Maximum Swing | 31.75" |
| Maximum Swing Over Cross Slide | 20.75" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 23" |
| X-Axis Travel | 12.5" |
| Z-Axis Travel | 23" |
| Number of Turret Positions | 12 |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-6 / 3.5" / 3.03" |
| Spindle speed | 4,800 RPM |
| Spindle Motor | 30 HP |
| Subspindle Nose / Bore / Bar Capacity | A2-5 / 2.44" / 2" |
| Subspindle Speed | 4,800 RPM |
| Subspindle Motor | 20 HP |
| Rapid Traverse Rates X / Z | 472 IPM / 1,200 IPM |
| Chuck Sizes Main / Subspindle | 10" 3-Jaw / Collet Chuck |
| Machine Dimensions LxWxH | NA |
| Machine Weight | 14,600 lbs |
