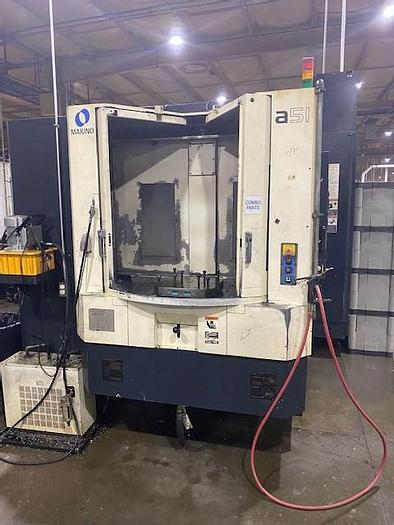

2005 Makino A51
No longer available
2005 Makino A51
Location:Illinois
Description
2 Pallet Changer System .001 Degree Full 4th Axis Rotary Table

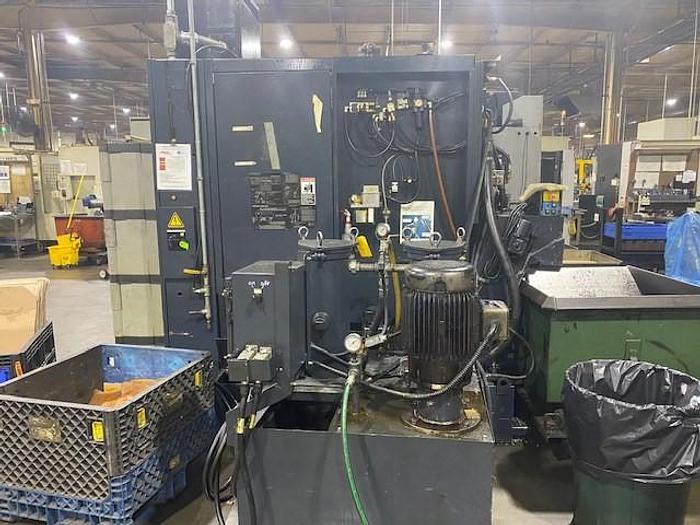

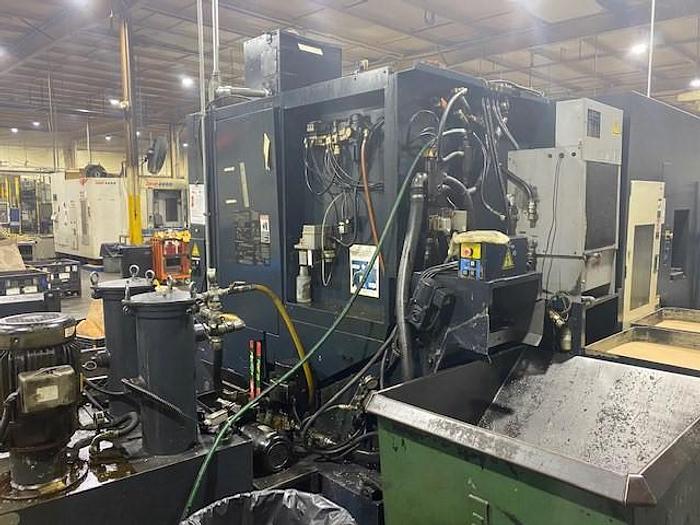

1000 PSI Coolant Thru the Spindle
GI.3 High Precision Contour Control Software 60 ATC Tool Magazine Hydraulic Clamping Chip Conveyor Remote Jog Handle Flood Coolant System Coolant Tank with Pump Rigid Tapping Spindle Chiller Unit 3.5" Floppy Disk Interface RS 232 Port Interface
Machine 3 Color Status Condition Lights
Transformer
Tool Life Monitoring Function
Ball Screw Core Cooling All Available Manuals
Specifications
| Manufacturer | Makino |
| Model | A51 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 118094 |

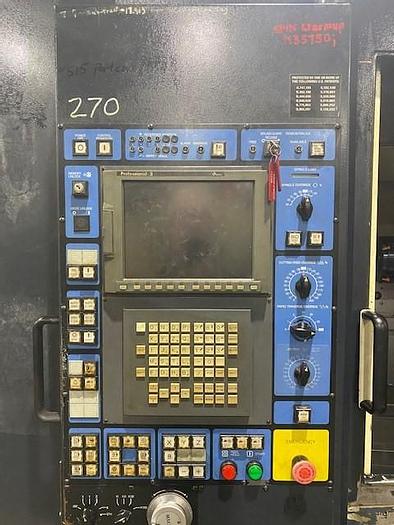

| Control | Makino Pro 3 Series |
| Pallet Size / Number of Pallets | 15.75" x 15.75" / 2 Pallet Changer |
| Maximum Weight on Table | 880 lbs. |
| Maximum Part Size D x H | 24.8" x 35.4" |

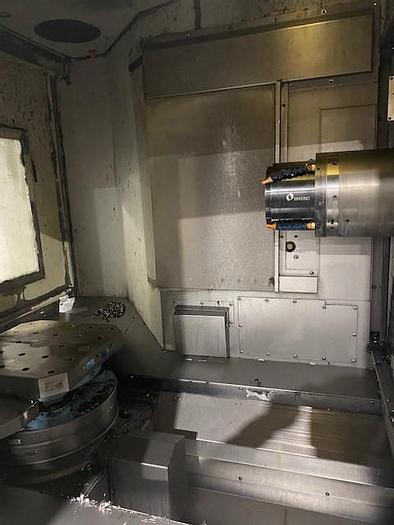

| Table Indexing | .001 Degree - Full 4th Axis |
| X-axis travel | 22" |
| Y-Axis Travel | 22" |
| Z-Axis Travel | 23.6" |

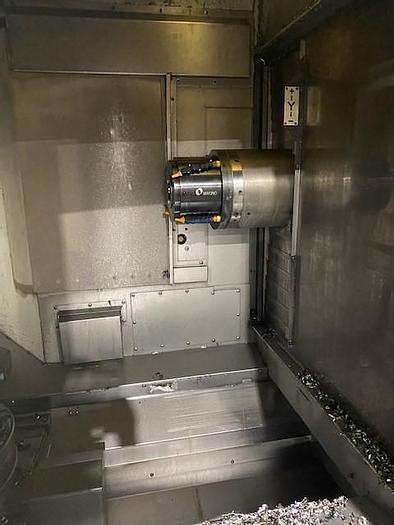

| Spindle Nose | CAT #40 |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 25 HP |
| Number of Tool Positions | 60 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 5.51" / 11.81" / 17.6 lbs. |
| Tool Change Time Chip to Chip | 2.3 seconds |
| Tool Change Time Tool to Tool | .9 second |
| Rapid Traverse Rates | 1,968 IPM |
| Machine Dimensions LxWxH | 184" x 84" x 112.5" |
| Machine Weight | 18,900 lbs. |
