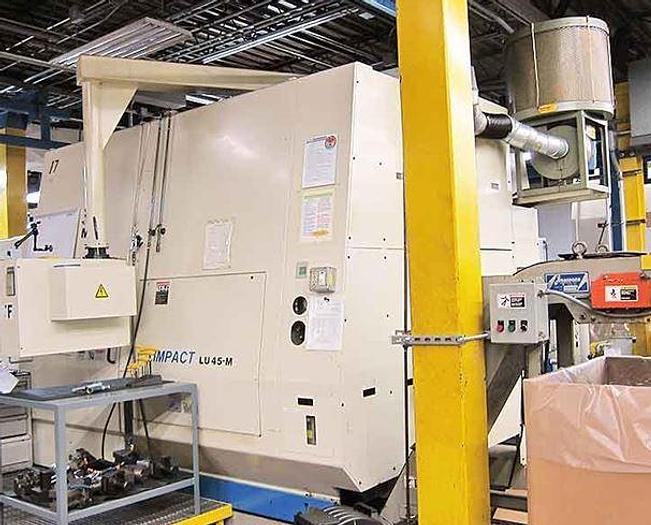

1999 Okuma Impact LU-45M 2SC/1250
1999 Okuma Impact LU-45M 2SC/1250
Contact us for price
Location:New York, NY
orCall (863) 439-6066
Description

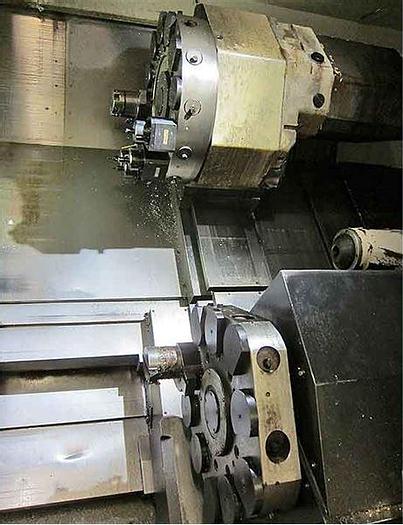

Upper and Lower Turret
Live Milling

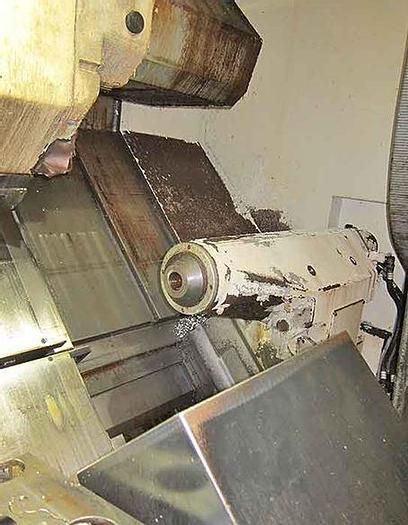

Tailstock
Air Mist Unit
Side Discharge Chip Conveyor
Live Tooling Package
IGF Conversational Programing
3.5" Floppy Disk Interface
RS232 Port Interface
All Available Manuals
Specifications
| Manufacturer | Okuma |
| Model | Impact LU-45M 2SC/1250 |
| Year | 1999 |
| Condition | Used |
| Stock Number | 118145 |

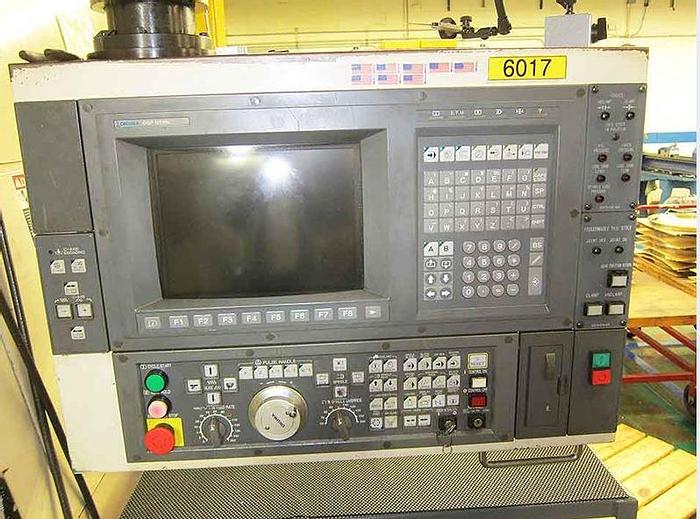

| Machine Control | OSP-U100L |
| Chuck Size | Rohm 24" 3-Jaw |
| Maximum Swing | 33" |
| Distance Between Centers | 49.2" |
| Maximum Cutting Diameter | 23" |
| C-Axis Rotation | .001 Degrees |
| Maximum Turning Diameter Upper / Lower | 25.59" / 18.1" |
| Spindle Nose / Bore / Bar Capacity | A2-11" / 5.12" / 4.75" |
| Spindle Speed | 900 RPM |
| Spindle Motor | 50 HP |
| Rotary Tool Speed / Rotary Motor | 2,000 RPM / 10 HP |
| Number of Turrets | 2 |
| Number of Turret Positions | 12 Upper / 10 Lower |
| Tailstock Quill Diameter / Quill Travel / Taper | 5.12" / 6.69" / #5MT |
| Rapid Traverse Rates X / Z | 591 IPM / 787 IPM |
| Machine Dimensions LxWxH | 199"x111"x118" |
| Machine Weight | 36,317 lbs |
