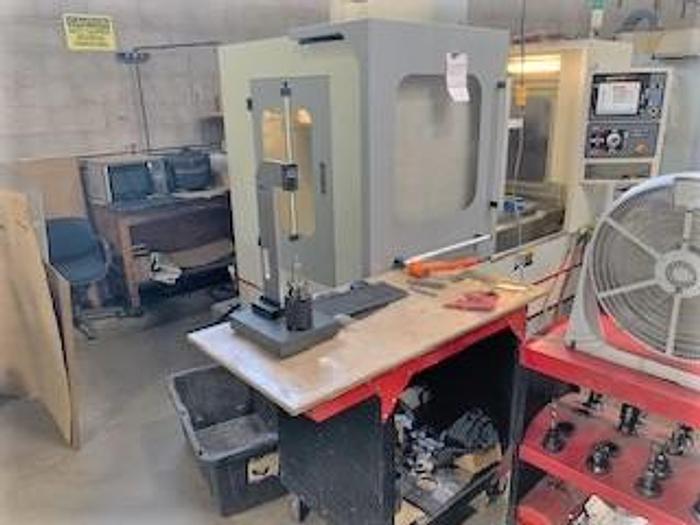

2011 Southwestern Industries Trak LPM
No longer available
2011 Southwestern Industries Trak LPM
$26,950 (USD)
Location:Illinois
Description
Chip Auger
Software Updated in Approximately 2017
Conversational or G Code Programming

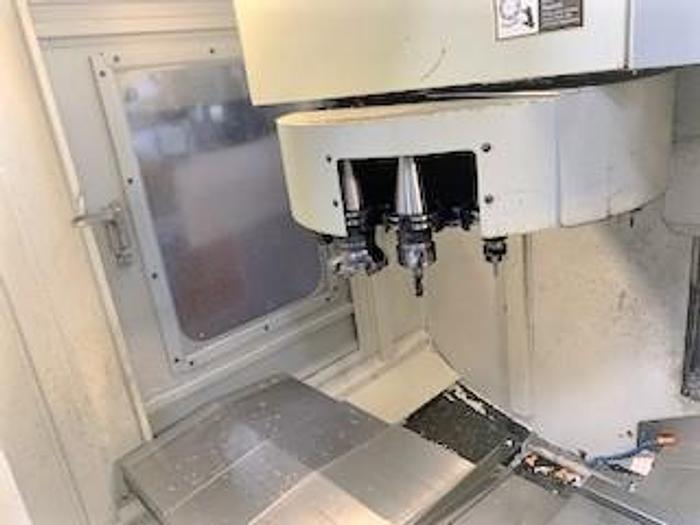

16 Station Tool Changer

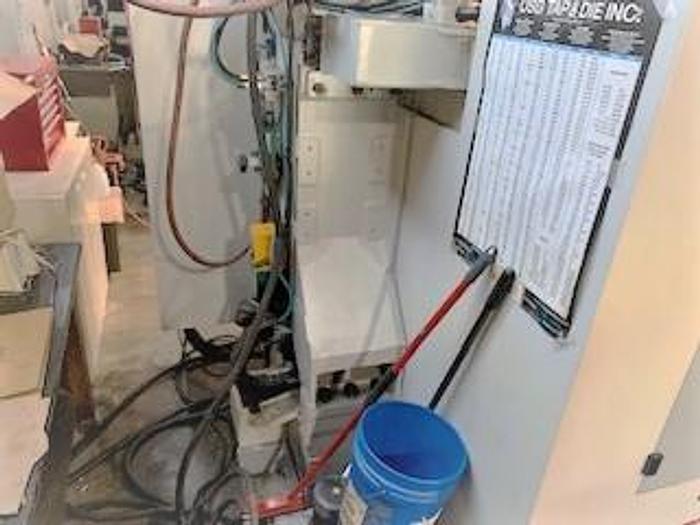

Coolant System with Tank & Pump
DXF Converter
Tool Setter
RJ45 Port Interface for Ethernet
USB Port Interface
RS 232 Port Interface
Wired 220V 3 PH
All Available Manuals
Specifications
| Manufacturer | Southwestern Industries Trak |
| Model | LPM |
| Year | 2011 |
| Condition | Used |
| Stock Number | 118247 |
| Machine Control | ProtoTrak PMC Control |
| Table Size | 35.4" x 19.6" |
| Maximum Table Load | 1,000 lbs |
| X-axis travel | 31" |
| Y-Axis Travel | 18.5" |
| Z-Axis Travel | 21" |
| Spindle Speed | 8,000 RPM |
| Spindle Taper | CAT #40 |
| Spindle Motor | 15 HP |
| Distance Spindle Nose to Table Top | 3.375" - 24" |
| Tool Magazine Capacity | 16 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 3.14" / n/a / 15 lbs. |
| Rapid Traverse Rates X, Y / Z | 800 IPM / 700 IPM |
| Machine Dimensions LxWxH | 13.9' x 7.37" x 9' |
| Machine Weight | N/A |
