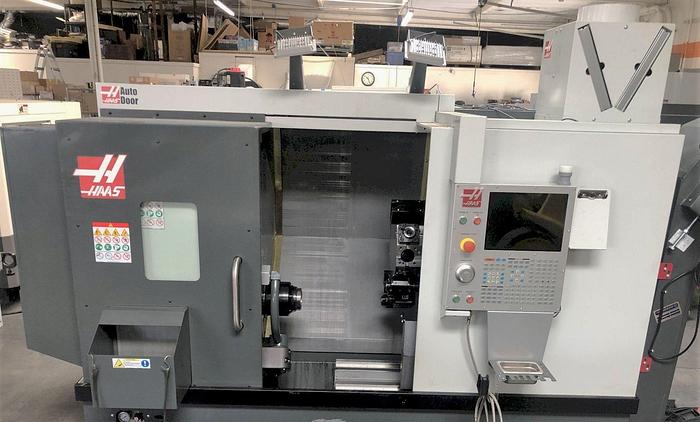

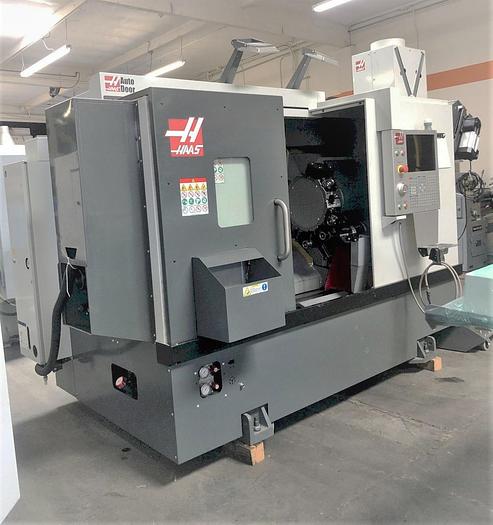

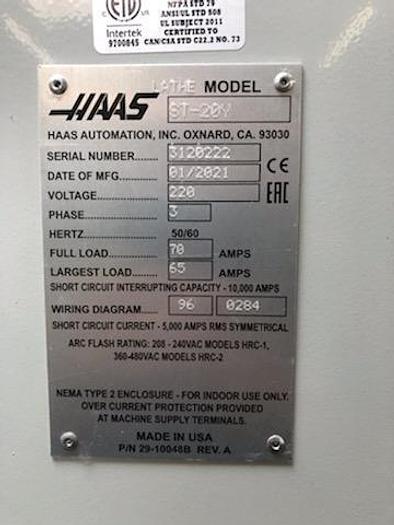

2021 Haas ST-20Y
No longer available
2021 Haas ST-20Y
$127,500 (USD)
Location:California
Description
C Axis Spindle Rotation
Live Milling/Drilling Capability
6,000 RPM Live Milling Option
Y Axis Capability

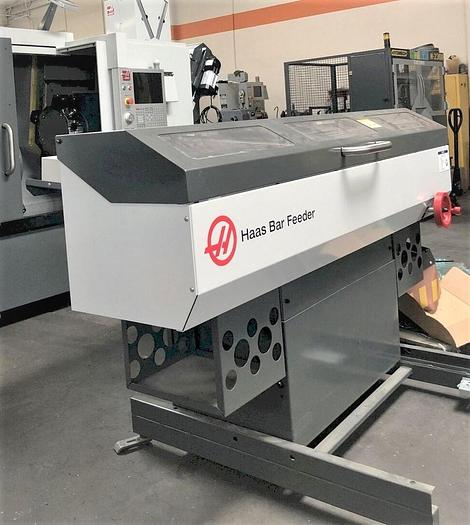

Haas Barfeed System

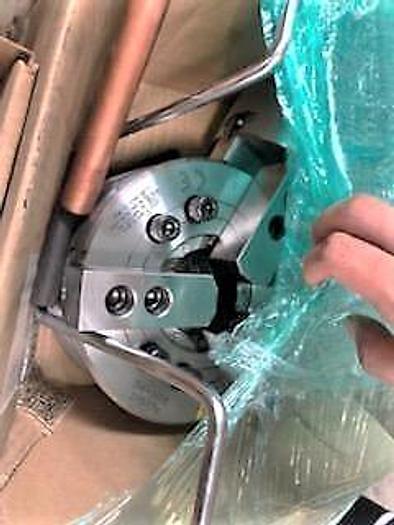

8.3" 3 Jaw Hydraulic Chuck
Collet Chuck
Chip Conveyor
Parts Catcher
Tool Presetter
300 PSI High Pressure Coolant

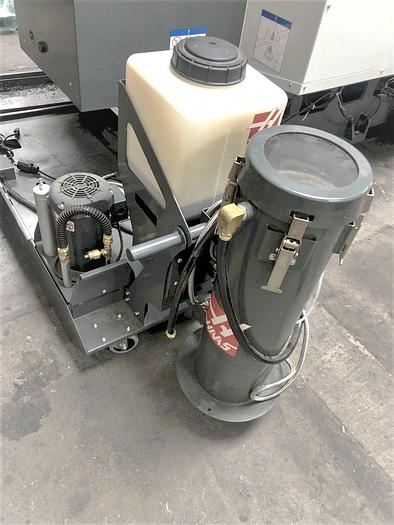

Auxiliary Coolant Filter System
Haas Visual Part Programming System
High Intensity Lighting
User Definable Macros
Spindle Orientation
Media Display M Code M130
Haas Connect
1 GB Program Storage
Rigid Tapping
15" LCD Color Monitor
Early Power Failure Detection Module

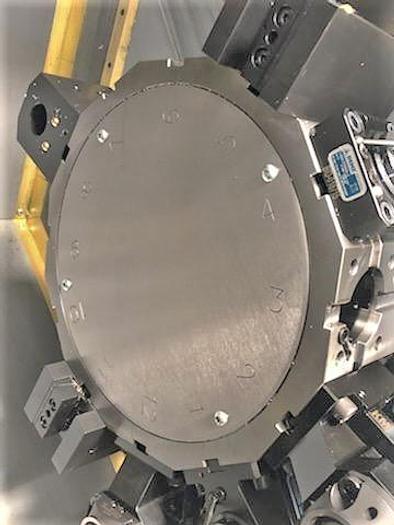

12 Station VDI/BOT Hybrid Turret
Memory Lock Key Switch
USB Port Interface
RS 232 Port Interface
Wired 220V Electrics
All Available Tool Blocks
All Available Manuals
*New in January of 2021
Specifications
| Manufacturer | Haas |
| Model | ST-20Y |
| Year | 2021 |
| Condition | Used |
| Stock Number | 118322 |
| Machine Control | Haas NextGen Control |
| Chuck Size | 8.3" 3-Jaw Hydraulic Chuck |
| Maximum Swing Over Cross Slide | 21" |
| Maximum Machining Diameter | 11.75" |
| Maximum Machining Length | 22.5" |
| Maximum Bar Capacity | 2.5" |
| X-Axis Travel | 8.4" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 22.5" |
| C Axis Spindle Rotation | 0.01 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 5 HP |
| Number of Turret Positions | 12 Bolt on Style - BMT65 Type |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 945 IPM |
| Tailstock Taper | MT #4 |
| Machine Dimensions LxWxH | 142" x 90" x 92" |
| Machine Weight | 10,480 lbs. |
