2013 Mazak Integrex e-420H-S II/1500
No longer available
2013 Mazak Integrex e-420H-S II/1500
Location:California
Description

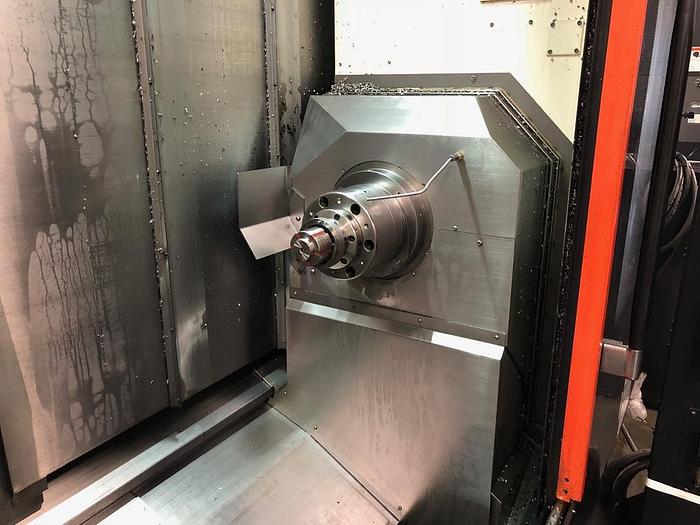

Full C-Axis Spindle Rotation .0001 Both Spindles
Live Milling/Drilling Capability
Y-Axis

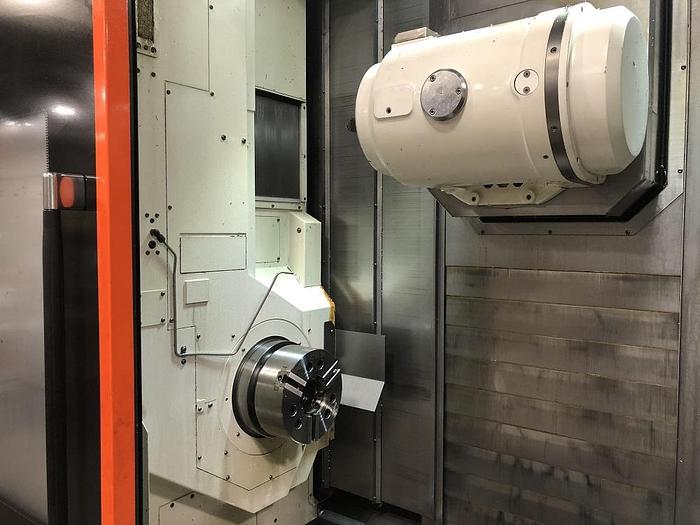

B-Axis Pendulum Style Upper Turret
120 atc Tool Changer
Chip Conveyor

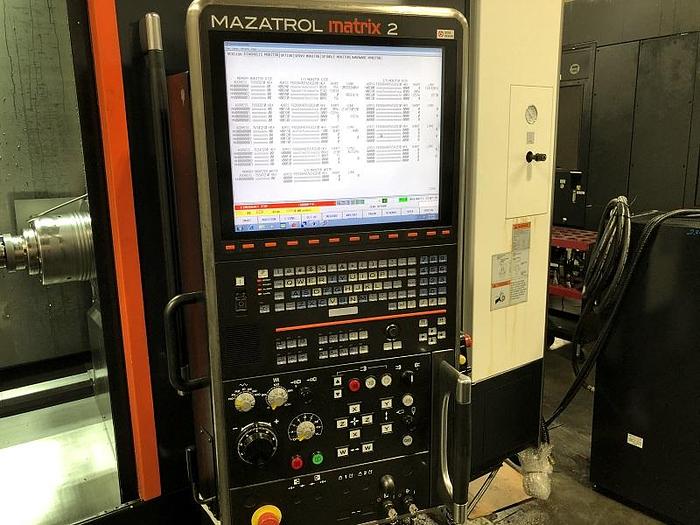

Cyber Tower CNC
USB Port Interface
Auto Pecking
8MB Memory
MT Connect
Coolant Temp. Control
Tool ID Option
Mazak Super Flow V8A Coolant System
Probe
Collet Chucks
All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Integrex e-420H-S II/1500 |
| Year | 2013 |
| Condition | Used |
| Machine Control | Mazatrol Matrix 2 |
| Chuck Sizes | (2) 12" Hydraulic 3-Jaw |
| Maximum Swing | 26.37" |
| Maximum Cutting Diameter | 26.37" |
| Maximum Cutting Length | 60.47" |
| X-Axis Travel | 33.27" |
| Y-Axis Travel | 16.53" |
| Z-Axis Travel | 62.2" |
| B-Axis Tilt Movement | 240 Degrees .0001 Degree Increments |
| C Axis Spindle Rotation | .0001 Degree - Both Spindle |
| W-Axis Travel | 54.02" |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.583" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor - Both Spindles | 40 HP |
| Milling Spindle Speed | 12,000 rpm |
| Milling Spindle Motor | 30 hp |
| Tool Magazine Capacity | 120 atc |
| Maximum Tool Diameter / Length / Weight | 10.23" / 19.68" / 66 lbs |
| Spindle Taper | Capto |
| Rapid Traverse Rates X,Y,Z/W | 1969 ipm / 1179 ipm |
| Machine Dimensions LxWxH | 136"x234"x124" |
| Machine Weight | 44,910 lbs |
