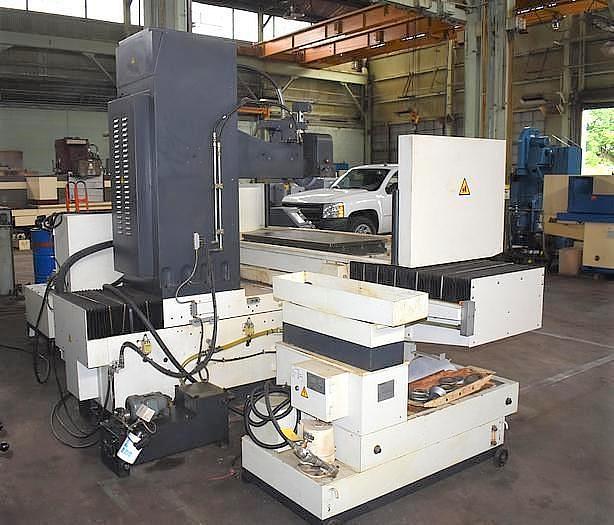

2017 Chevalier FSG-2040ADIII

No longer available

2017 Chevalier FSG-2040ADIII

Location:Ohio

Description

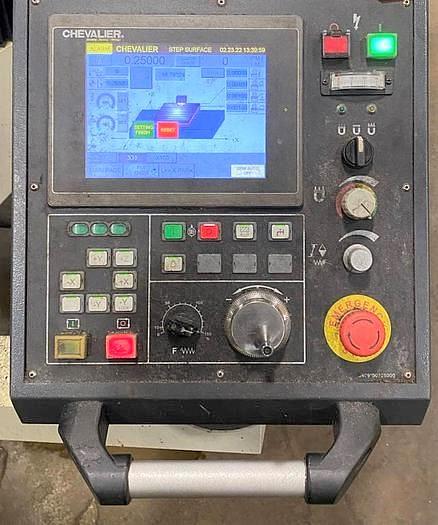

User-Friendly Touch Screen Contro

Optional Crisscross or Zigzag and A CBN Dressing Cycle

Fully Automatic Grinding Mode Consists of Rough and Fine Grinding Cycles

Switching from rough Grinding Down Feed Increments to Fine Grinding Down Feed Increments at Preset Points During the Cycle

This Crossfeed also Switches from a Rough to Fine Cross Feed Increments, which resutls in a Finer Surface Finish and Finer Accuracy.

Plunge Grinding

Fully Automatic Grinding Modes

Electro-Magnetic Chuck

Overhead Wheel Dresser

Coolant System w/Paper Filter

Show All

Specifications

ManufacturerChevalier
ModelFSG-2040ADIII
Year2017
ConditionUsed
Stock Number118430
Machine ControlCheavlier ADIII Touch Screen
Table Size40"x20"
Grinding Width Capacity20"
Grinding Length Capacity40"
Distance Spindle Nose to Table Top28.7"
Table Longitudinal Travel43.25"
Cross Travel Stroke22"
Grinding Wheel Diameter14"
Grinding Wheel Width2"
Grinding Wheel Hole Diameter5"
Spindle Speeds500-1,800 rpm
Table Longitudinal Feeds Range16 to 82 FPM
Cross Movement Automatic Increment Range.125" to 1.25"
Rapid Traverse Rates5 FPM
Wheelhead Micorfeed Per Revolution.001"
Wheelhead Rapid Rate15.7 IPM
Spindle Motor10 HP
Hydraulic Tank Capacity52 Gallons
Machine Dimensions LxWxH133"x102"x107"
Machine Weight13,640 lbs
