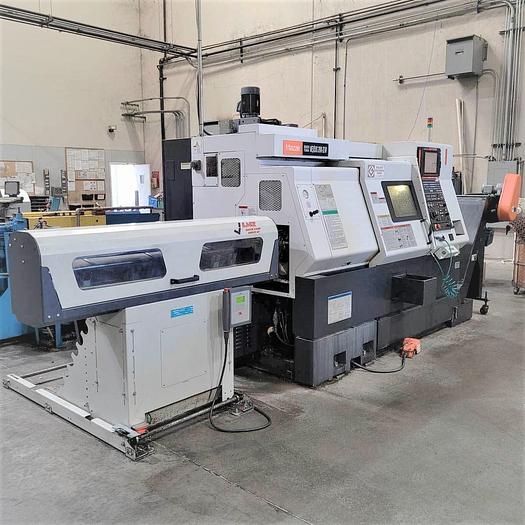

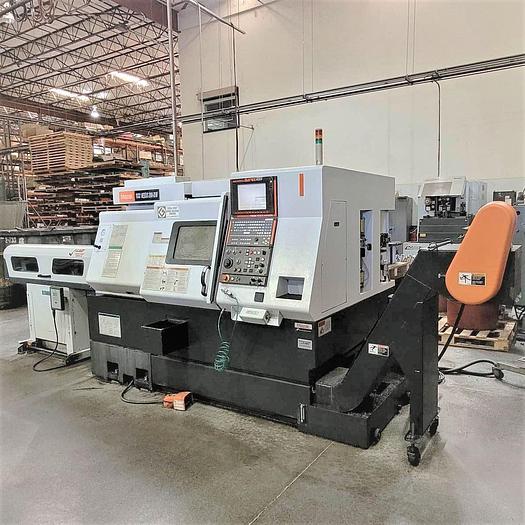

2008 Mazak Nexus QTN 200-IIM
2008 Mazak Nexus QTN 200-IIM
$89,500 (USD)
Location:California
Description
Full C Axis Spindle Rotation
Live Milling / Drilling Capability
Programmable Tailstock
Automatic Tool Eye

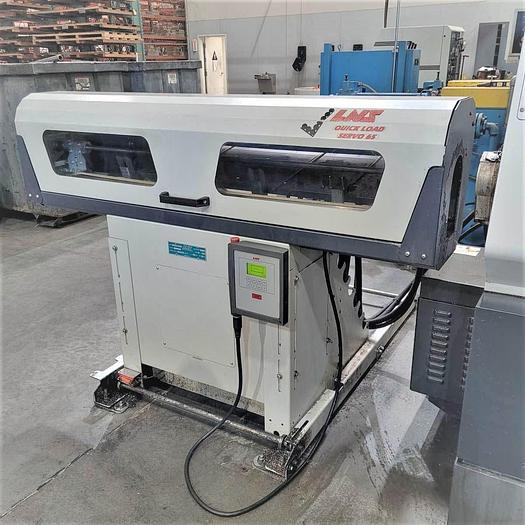

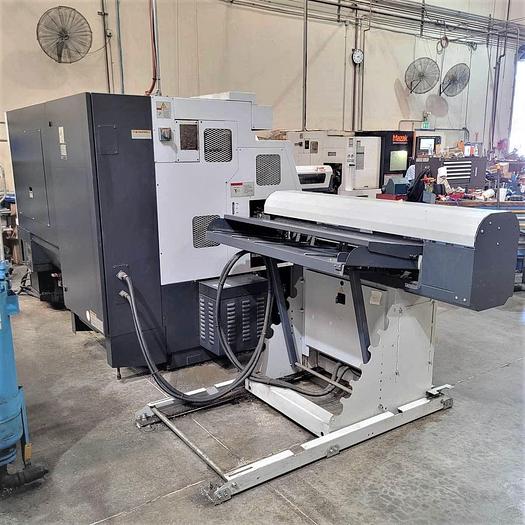

LNS Servo 65 Short Load Type Barfeed System
Chip Conveyor
Automatic Parts Catcher
Background Tool Path Check
Mill Spindle Synchronous Tapping
213 PSI High Pressure Coolant
Automatic Front Door
Auto Power Off
3 Color Signal Light Tower
Chuck Air Blast
Turret Air Blast
Auto Peck Cycle with Load Detection
Tilted Work Plane
Polygon Machining
8 MB Program Storage
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
600 Macro Variable
EIA/ISO Input Function for G Code Programming
EIA Helical Tapping Cycle
EIA Pattern Cycle
EIA 3D Compensation
Multi Tap Transformer
Card Interface
USB Port Interface
RS 232 Port Interface
(7) Spindle Liners
(4) Standard Turning Tools
(1) Boring Bar Holder
(1) Vertical Milling Holder
(1) Horizontal Milling Holder
All Available Manuals

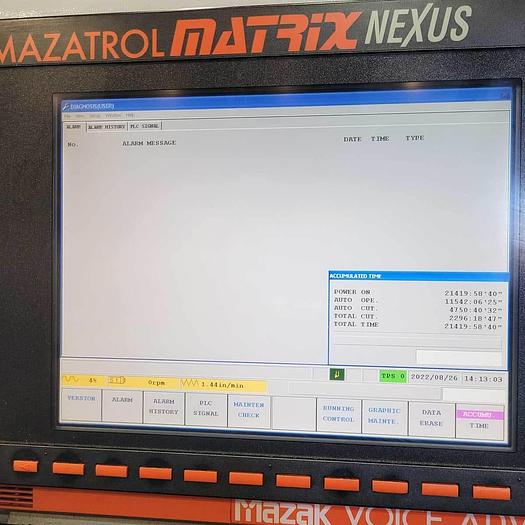

Auto Operation Hours 11,542
Total Cutting Hours 2,296
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 200-IIM |
| Year | 2008 |
| Condition | Used |
| Stock Number | 118433 |

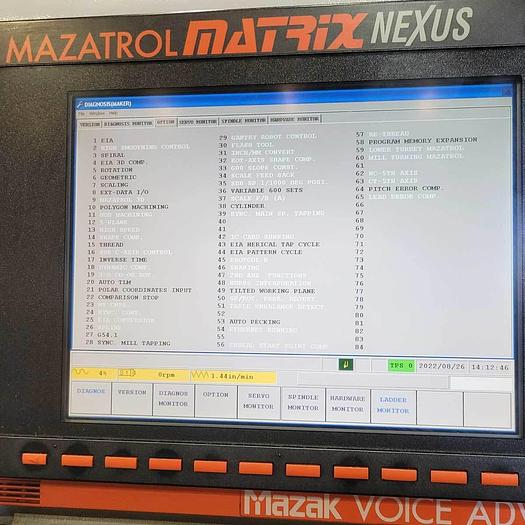

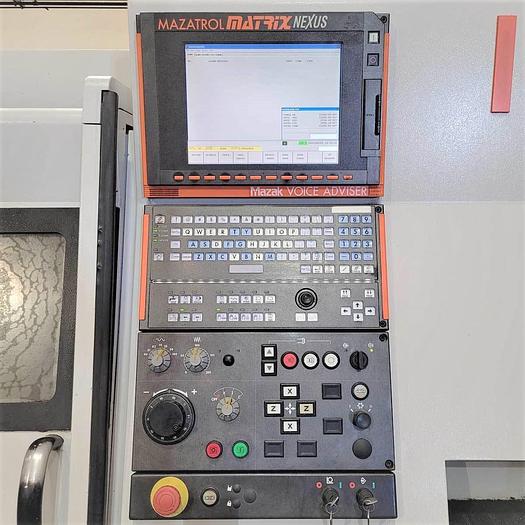

| Control | Mazatrol Matrix Nexus |

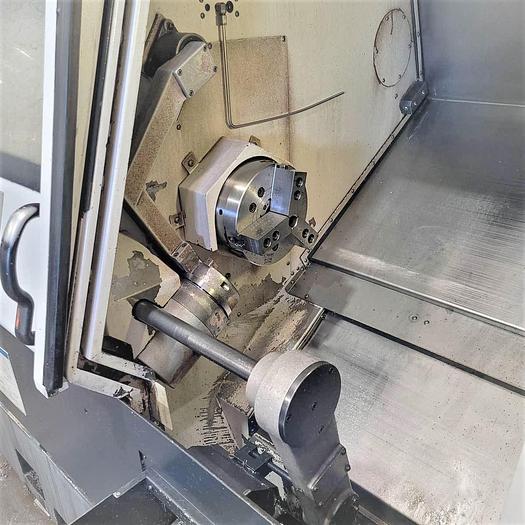

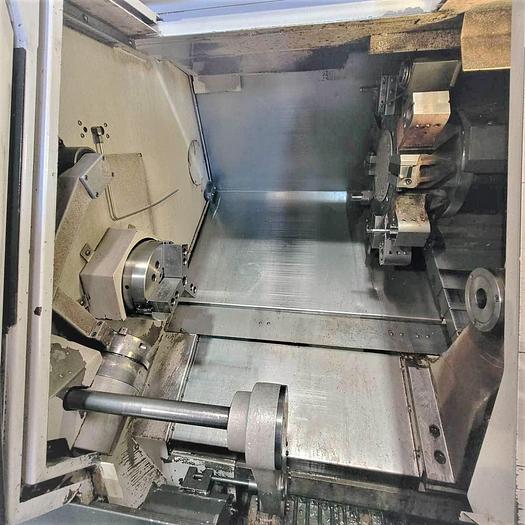

| Chuck Sizes | 8" 3-Jaw Hydraulic |
| Maximum Swing/Over Carriage | 26.5" / 14" |
| Maximum Cutting Diameter | 14.75" |
| Maximum Cutting Length | 21.28" |
| X-Axis Travel | 9.055" |
| Z-Axis Travel | 22.75" |
| C Axis Spindle Rotation | 0.001 Degree |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-8" / 3" / 2.6" |
| Spindle Speeds | 5,000 RPM |
| Spindle Motor | 35 HP |
| Rotary Tool Speed / Rotary Motor | 4,500 RPM / 7.5 HP |

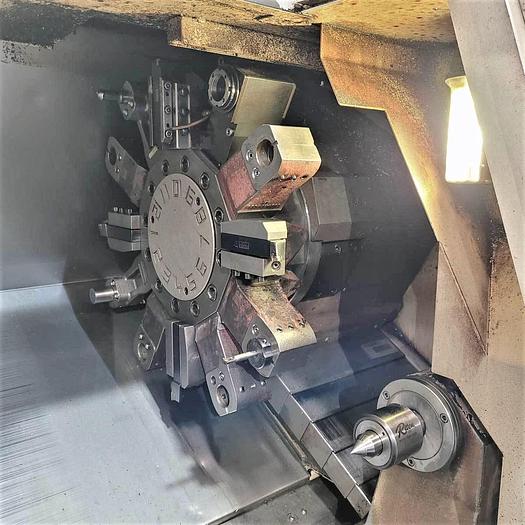

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X, B / Z | 1181 IPM / 1299 IPM |
| Machine Dimensions | 115" x 74" x 73" |
| Machine Weight | 11,464 lbs. |
