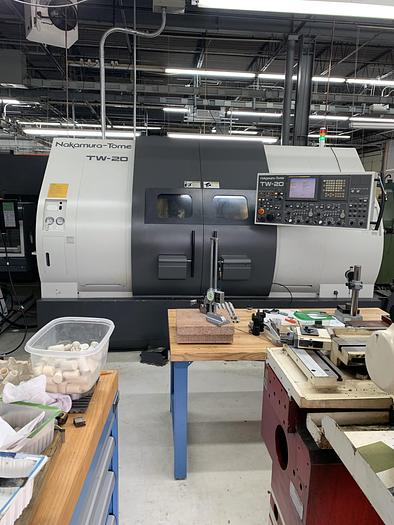

2006 Nakamura Tome TW-20MM
2006 Nakamura Tome TW-20MM
$134,950 (USD)
Location:Massachusetts
orCall (863) 439-6066
Description

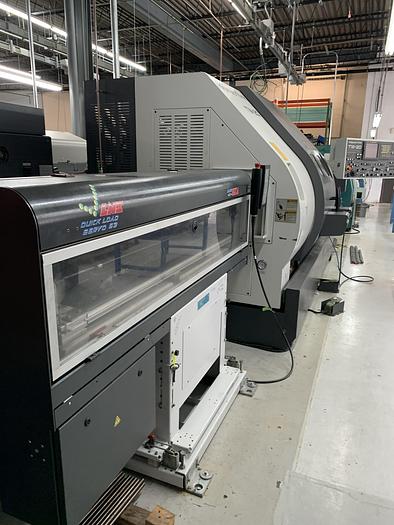

Twin Facing Spindles Design Full "C" Axis Spindle Rotation Both Spindle Live Milling / Drilling Capability on Both Turrets Collet Chuck - Both Spindles Barfeed Interface LNS Quick Load Servo S3 Short Bar Feed Unit
Parts Catcher on Both Sides
Chip Conveyor 2.5" Bar Capacity Option on Left Spindle High Pressure Coolant Pump - Both Sides Coolant Tank with Pumps 3.5" Floppy Disk Interface RS232 Port Interface (2) Live Tool Holders per Turret Included (2) Boring Bar Holders per Turret (2) Turning Holders per Turret
**Machine is in excellent condition ready to ship**
**ONLY 5,540 Total Cutting Hours**
Specifications
| Manufacturer | Nakamura Tome |
| Model | TW-20MM |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118458 |

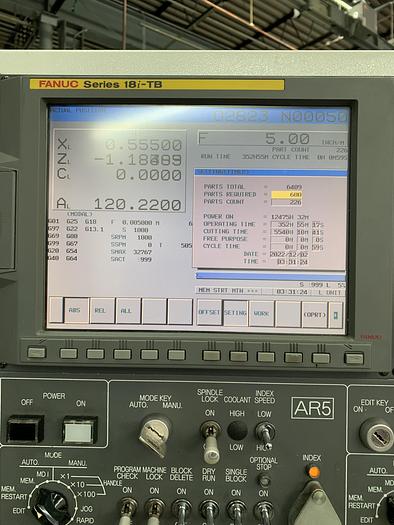

| Control | Fanuc 18i-TB |
| Chuck Type Left / Right Spindle | Collet Chuck / Collet Chuck |
| Maximum Swing Bed Left / Right | 10.63" / 8.46" |
| Maximum Turning Diameter | 10.63" |
| Maximum Turning Length | 7.56" |
| Distance Between Spindles | 42.52" |
| Maximum Bar Capacity Left Side / Right Side | 2.5" / 2.0" |
| X-Axis Travel (Both Sides) | 7.68" |
| Z-Axis Travel (Left / Right) | 10.43" / 30.71" |
| C Axis Spindle Rotation - Both | .001 Degree |
| Spindle Nose / Spindle Bore Left / Right | A2-6" / 3.15" / 2.56" |
| Spindle Speed Left / Right | 4,500 RPM / 5,000 RPM |
| Spindle Motor - Both 30 minutes/continuous | 20 HP / 15 HP |
| Rotary Tool Speed / Rotary Motor | 3,600 RPM / 5 HP |
| Number of Turret Positions - Both | 12 Station each |
| Rapid Traverse Rates X / Z | 630 IPM / 1181 IPM |
| Machine Dimensions | 137" x 83" x 85" |
| Machine weight | 17,160 lbs. |
