2014 Haas ST-10 with Haas Servo 300 Barfeed
Sold
2014 Haas ST-10 with Haas Servo 300 Barfeed
$44,500 (USD)
Location:Tennessee
Description

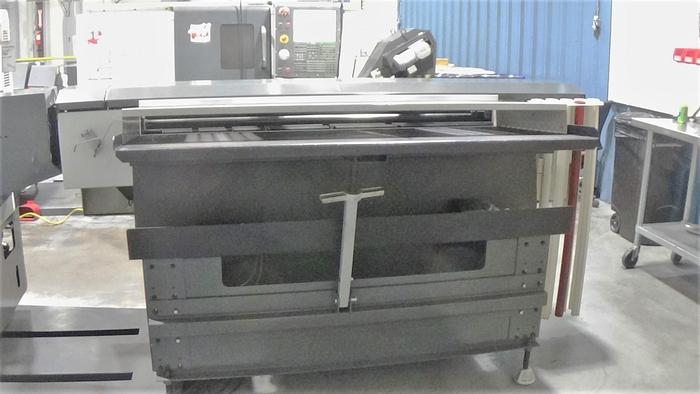

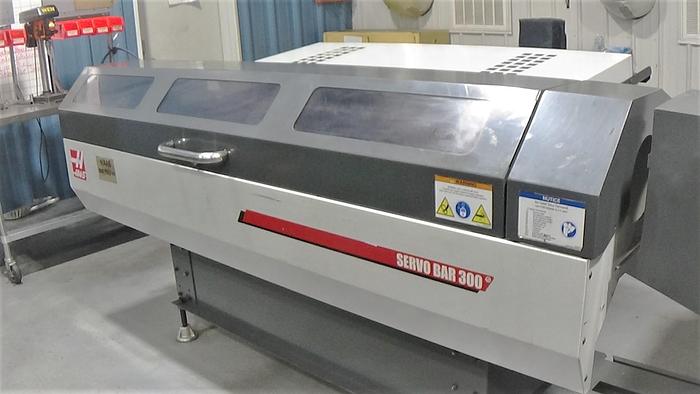

Haas Servo Bar 300 Barfeed

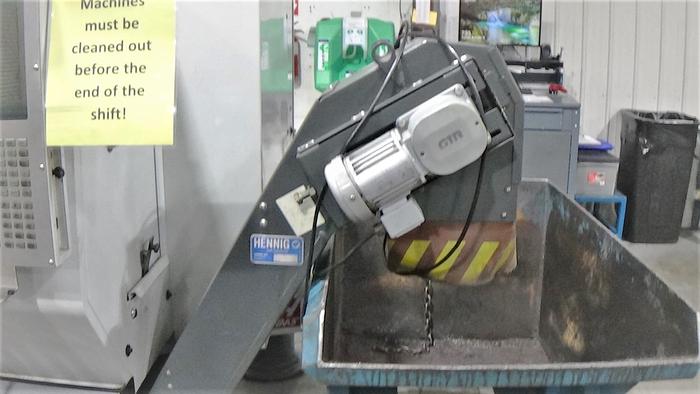

Chip Conveyor
Parts Catcher

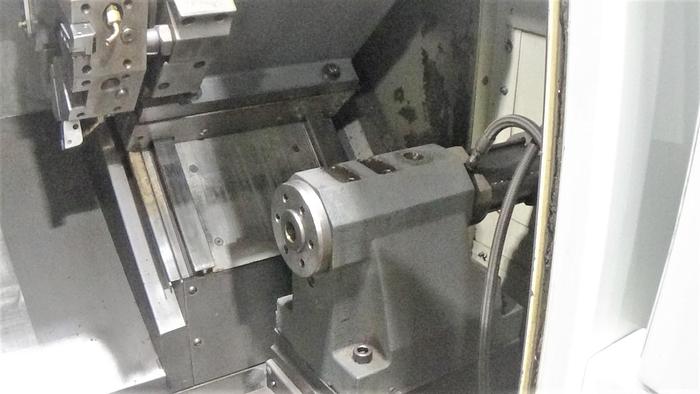

Tailstock - Programmable
Tool Presetter
High Pressure Coolant System

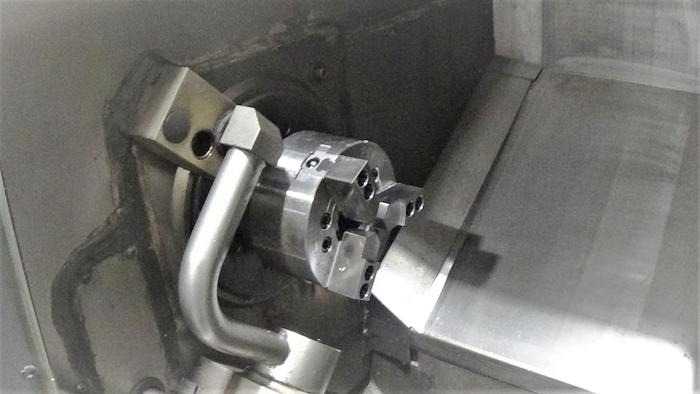

6.5" 3 Jaw Hydraulic Chuck
User Definable Macros

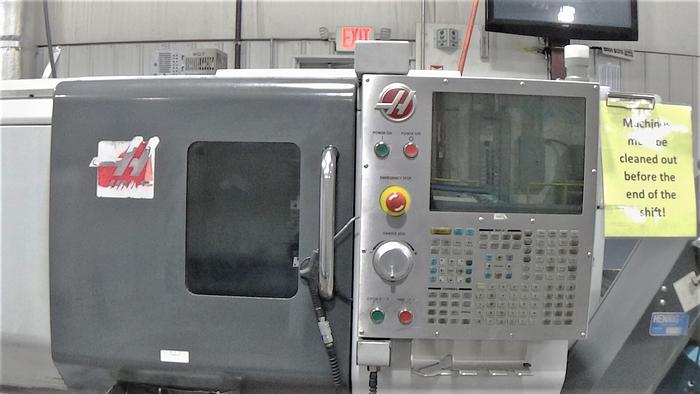

15" LCD Color Monitor
Memory Lock Keyswitch
Rigid Tapping
USB Port Interface
RS 232 Port Interface

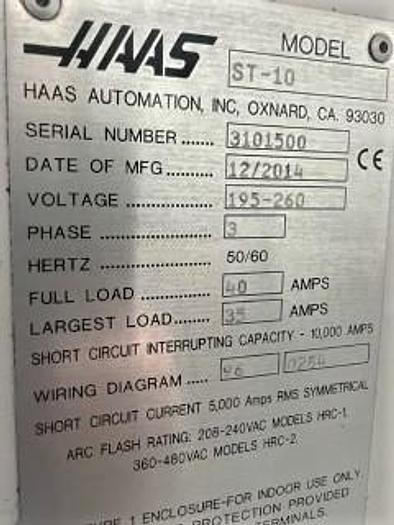

195-260 V 3-Phase
All Available Manuals

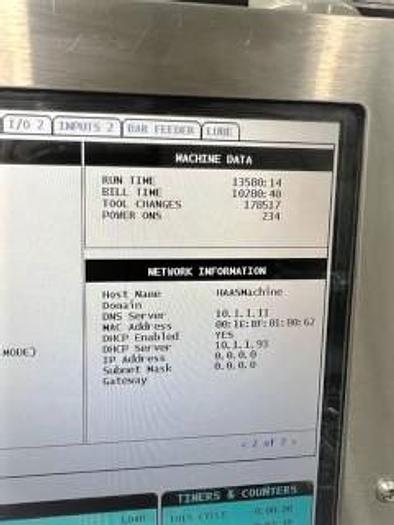

**Power On Hours 13,580**
**Price new as equipped at nearly $104,360**
**Collet Chuck, Collets and Spindle Liners for Barfeed are NOT included in Purchase**
Specifications
| Manufacturer | Haas |
| Model | ST-10 with Haas Servo 300 Barfeed |
| Year | 2014 |
| Condition | Used |
| Stock Number | 118552 |
| Machine Control | Haas CNC Control |
| Chuck Size | 6" 3-Jaw Hyd. Chuck |
| Maximum Swing | 25.25" |
| Maximum Swing Over Cross Slide | 16.25" |
| Maximum Machining Diameter | 14" |
| Maximum Machining Length | 14" |
| X-Axis Travel | 7.88" |
| Z-Axis Travel | 14" |
| Spindle Nose / Bore / Bar Capacity | A2-5 / 2.31" / 1.75" |
| Spindle Motor | 15 HP |
| Spindle Speeds | 0 - 6,000 rpm |

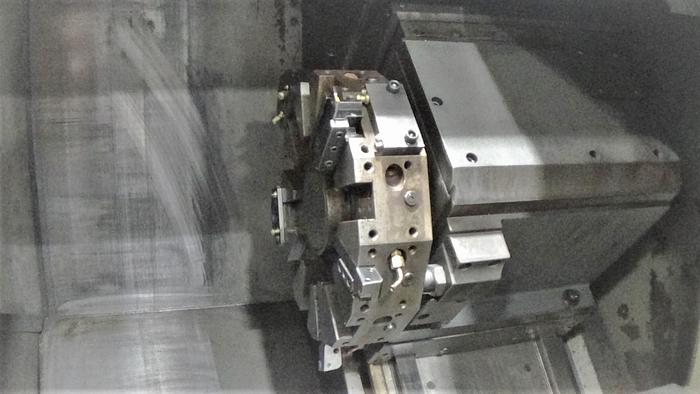

| Number of Turret Positions | 12 Bolt on Style |
| Spindle Torque | 75 ft/lbs. |
| Rapid Traverse Rates | 1,200 IPM |
| Machine Dimensions LxWxH | 92"x55"x69" |
| Machine Weight | 6,420 lbs |
