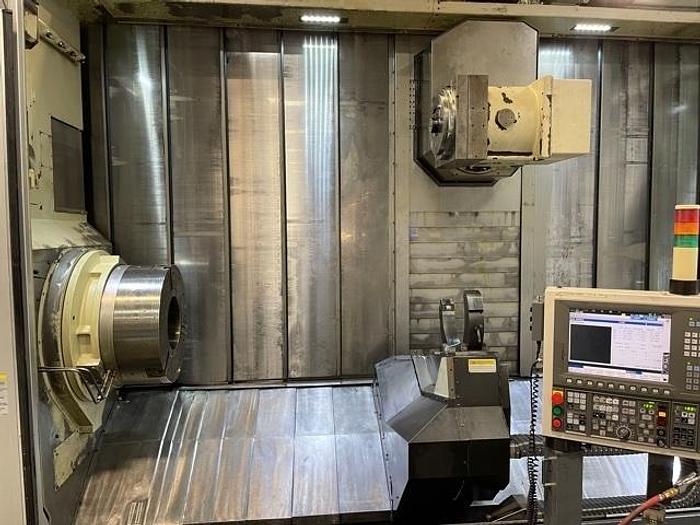

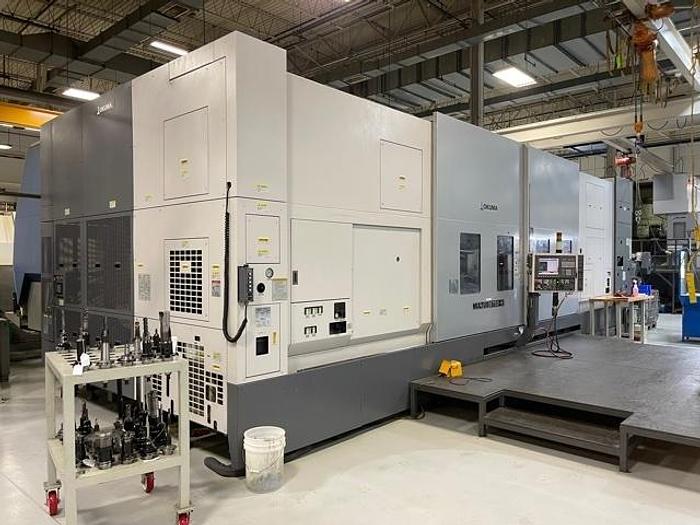

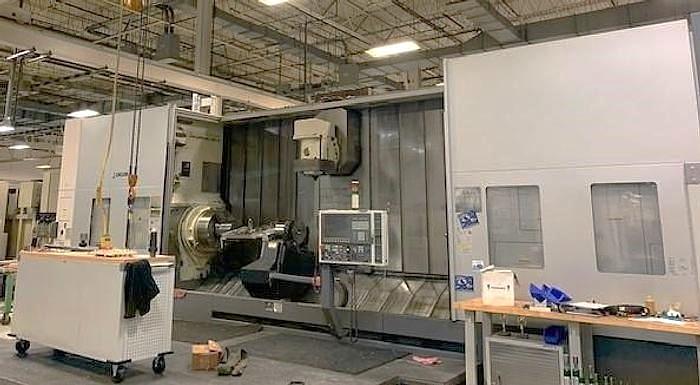

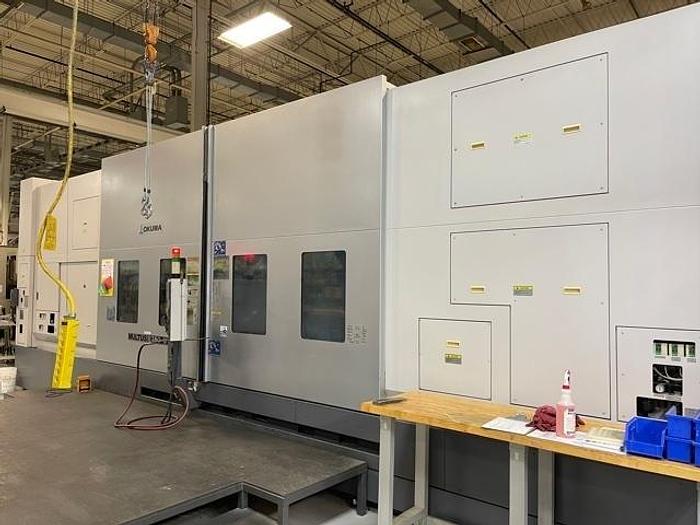

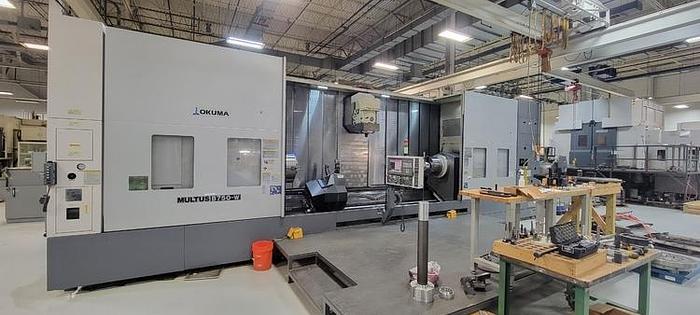

2010 Okuma Multus B750-W/4000
2010 Okuma Multus B750-W/4000
Contact us for price
Location:United States
Description

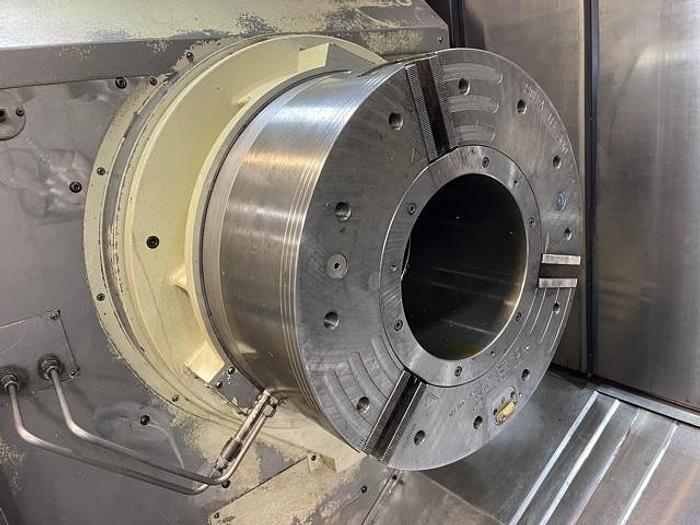

23.64" Schunk Rota TB 600-275 Self Contained Pneumatic 3-Jaw Chuck on Main Spindle
24" Hydraulic Chuck Right Spindle

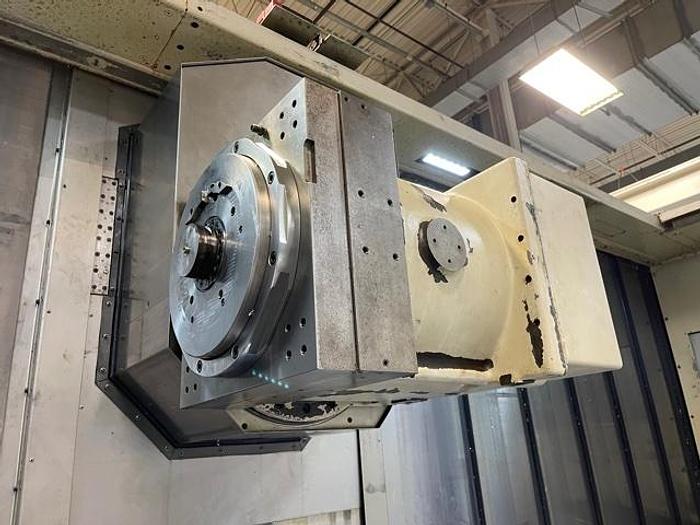

B-Axis Upper Tool Spindle Full 5-Axis Contouring

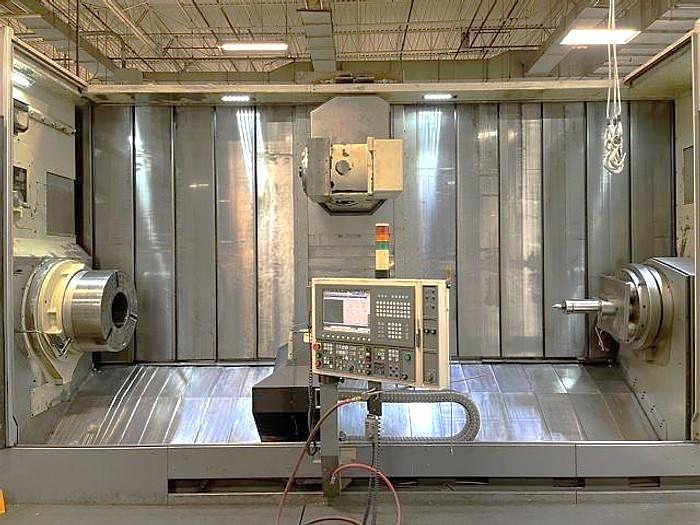

Twin Opposed Spindles

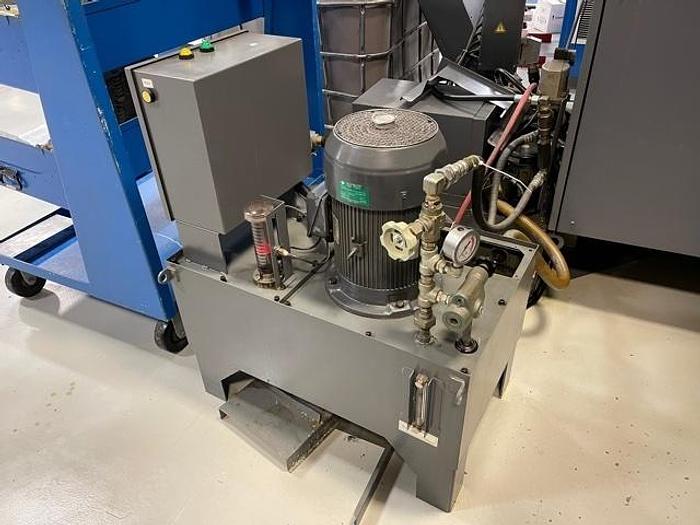

1000 PSI Coolant thru the Spindle

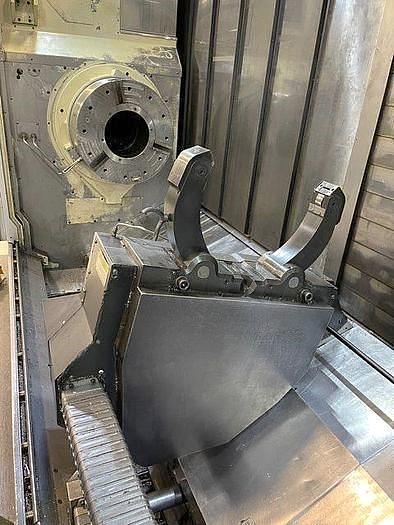

Programmable Hydraulic Steady Rest
Long Boring Bar Changer Option
Chip Conveyor
Spindle Chiller Unit
Remote Jog Handle
Hi-G Control
500 Sets of Tool Offsets
Plane Conversation
Profile Generation
15" Color TFT
Rigid Tapping
Helical & Slant Cutting
Tool Eye
Y-Axis Gauging
Optical Sensor
Pitch Error Comnpensation
Super Nurbs
Super Hi-NC
Lap 4
Nose Radius 2B
Expanded Auto Chamfering
Collision Avoidance System
3D Animation
Mac Man
DNC T1-T-3
Custom API
(3) Long Boring Bar Attachments
Long Boring Bar w/Replaceable Capto C8 Heads
**NC Running Hours 28,222**
**Spindle Running Hours 3,751**
**Cutting Time 15,861**
Specifications
| Manufacturer | Okuma |
| Model | Multus B750-W/4000 |
| Year | 2010 |
| Condition | Used |
| Stock Number | 118563 |

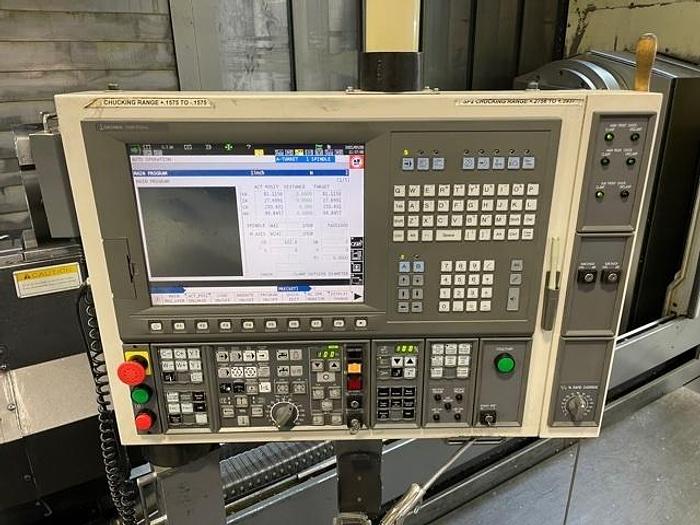

| Machine Control | OSP-P200L |
| Chuck Size | 23.64" Air Chuck / 24" Hydraulic Chuck |
| Maximum Swing | 41.34" |
| Maximum Turning Diameter | 41.34" |
| Distance Between Spindles | 178.9" |
| Maximum Bar Capacity Left / Right | 10" / 7" |
| X-Axis Travel | 42.52" |
| Y-Axis Travel | +/- 12.99" |
| Z-Axis Travel | 165.94" |
| C-Axis Rotation | .001 Degrees |
| W-Axis | 133.66" |
| Spindle Nose | A2-20" |
| Spindle Bore | 10" |
| Main & Subspindle Speeds | 1,030 RPM |
| Spindle Motor | 50/40 HP |
| Spindle Taper | Capto C8 |
| Tool Magazine Capacity | 80 Position Tool Changer |
| Milling Spindle Motor | 50/40 HP |
| Milling Spindle Speed | 5,000 RPM |
| Maximum Tool Diameter / Length / Weight | 5.31"/23.6"/66 lbs |
| Rapid Traverse Rates | 1,575 IPM |
| Machine Dimensions | 480” long x 180” wide x 144” tall |
| Machine Weight | 120,600 lbs |
