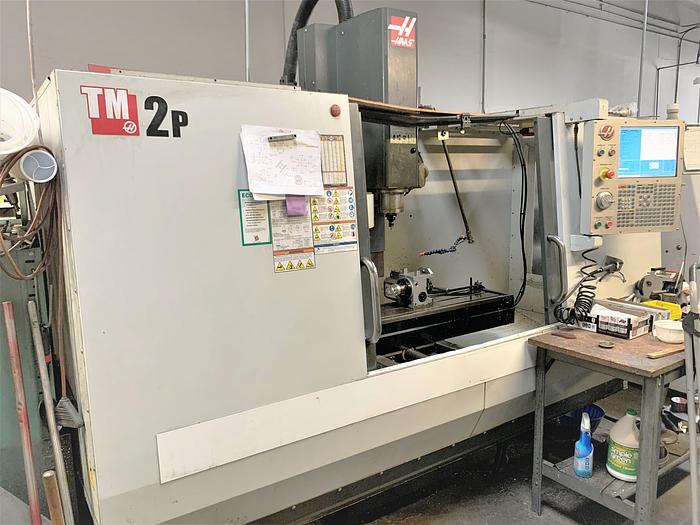

2011 Haas TM-2P
No longer available
2011 Haas TM-2P
$32,500 (USD)
Location:California
Description
Full Enclosure Sheet Metal Covers 20 Station Toolchanger 4th Axis Drive & Wiring
Auger Style Chip Conveyor
Programmable Coolant Nozzle
Coolant System with Tank & Pump Vector Drive Spindle Brushless Servos All Axis' Direct Belt Drive

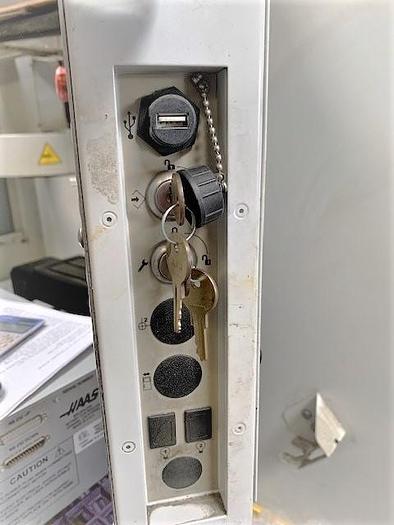

USB Port Interface RS 232 Port Interface

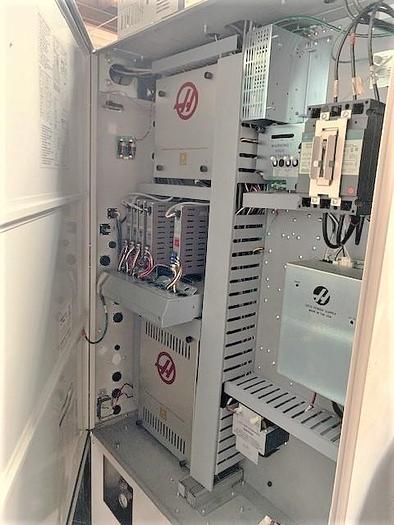

Electrics can be wired at either Three Phase at 208V or Single Phase at 240V
**Haas indexer seen in pictures is NOT included with machine**
**Price new as equipped at $60,575**

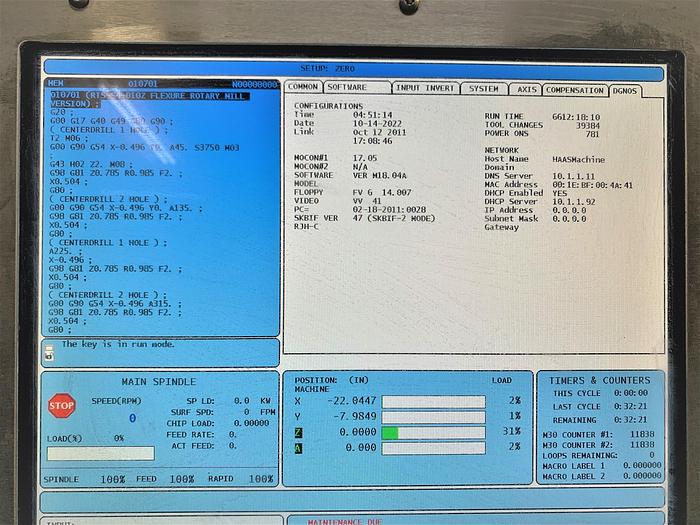

**Power on hours at 6,612**
**Approximate spindle run hours of 2,200**
Specifications
| Manufacturer | Haas |
| Model | TM-2P |
| Year | 2011 |
| Condition | Used |
| Stock Number | 118575 |
| Control | Haas CNC Control |
| Table Size | 57.75"x10.5" |
| Maximum Table Load | 350 lbs |
| X-Axis Travel | 40" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 16" |
| Distance Spindle Nose to Table Top | 4" - 20" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 6,000 RPM |
| Spindle Motor | 7.5 HP |
| Tool Magazine Capacity | 20 Station Umbrella Style ATC |
| Maximum Tool Diameter / Length / Weight | 3.5"/NA/12 lbs |
| Tool Change Time Chip to Chip | 5.7 Seconds |
| Rapid Traverse Rates | 400 IPM |
| Machine Dimensions LxWxH | 100"x64"x86" |
| Machine Weight | 4,250 lbs |
