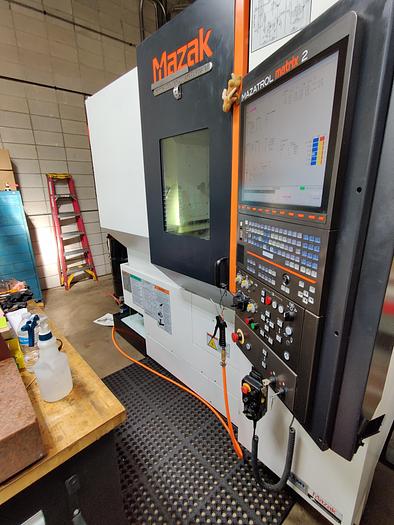

2014 Mazak VCU-500A-5X
No longer available
2014 Mazak VCU-500A-5X
$119,500 (USD)
Location:Illinois

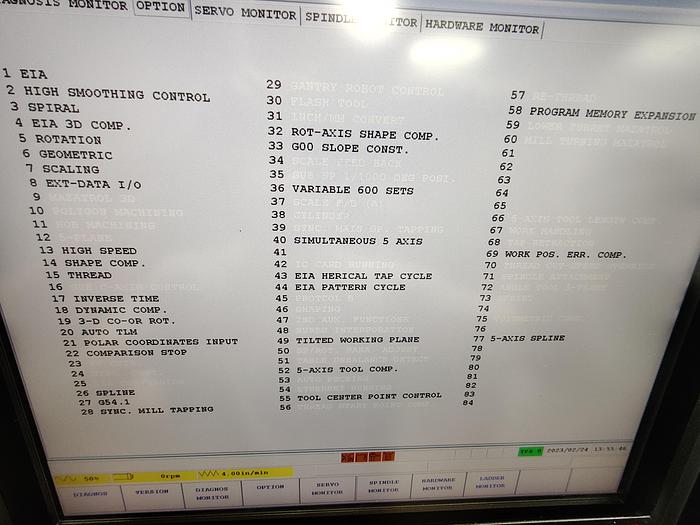

Description
EIA
High Smoothing Control
Spiral EIA 3D Compensation
Geometric Scaling
High Speed Shape Compensation Thread
Inverse Time
Dynamic Compensation
Auto Tool Length Measurement
Polar Coordinates Input Comparison Stop
Spline
G54.1
Rigid Tapping
Rotary Axis Shape Compensation
G00 Slop0e
600 Sets of Variables
Simultaneous 5-Axis
EIA Herical Tap Cycle
EIA Pattern Cycle
Tilted Working Plane
5-Axis Tool Compensation
Tool Center Point Control
5-Axis Spline
Extended Program Memory
Chip Conveyor
Thru the Spindle Coolant
All Available manuals
Specifications
| Manufacturer | Mazak |
| Model | VCU-500A-5X |
| Year | 2014 |
| Condition | Used |
| Stock Number | 118601 |

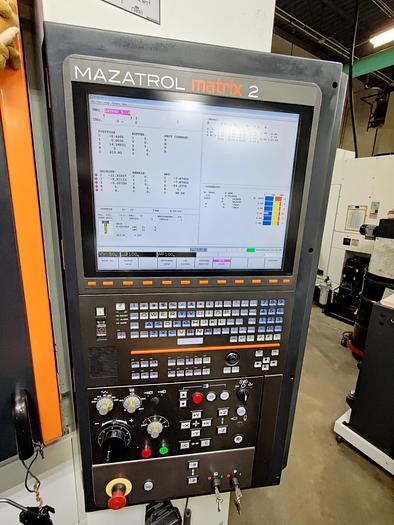

| Machine Control | Mazatrol Matrix 2 |
| Table Size | 19.68" |
| Maximum Table Load | 440 lbs |
| X-Axis Travel | 21.85" |
| Y-Axis Travel | 19.88" |
| Z-Axis Travel | 20.07" |
| B-Axis Tilt Movement | +95 to -45 Degrees |
| C-Axis Rotation | 360 Degrees |
| Spindle Speed | 12,000 rpm |
| Spindle Taper | CAT 40 |
| Spindle Motor | 25 hp |
| Tool Magazine Capacity | 30 atc |
| Maximum Tool Diameter / Length / Weight | 3.15"/ 10.23" / NA |
| Rapid Traverse Rates | 945 ipm |
| Machine Dimensions LxWxH | 117.5"x78.7"x125" |
