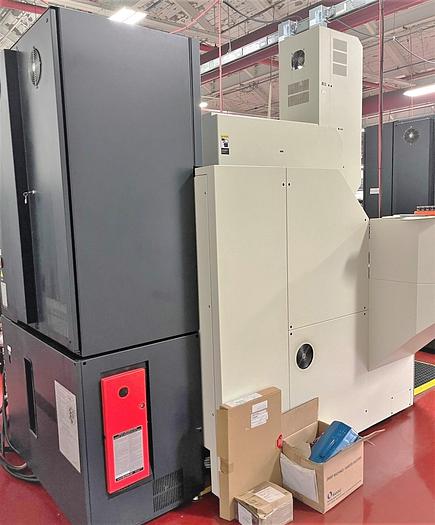

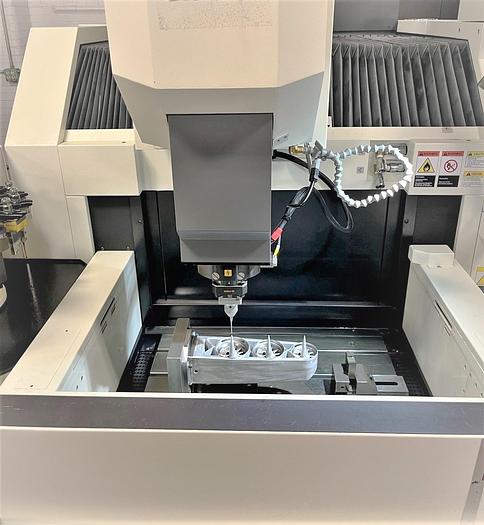

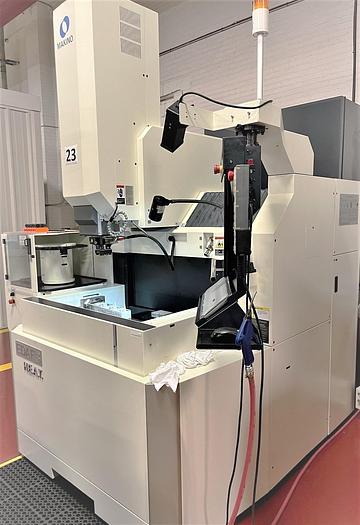

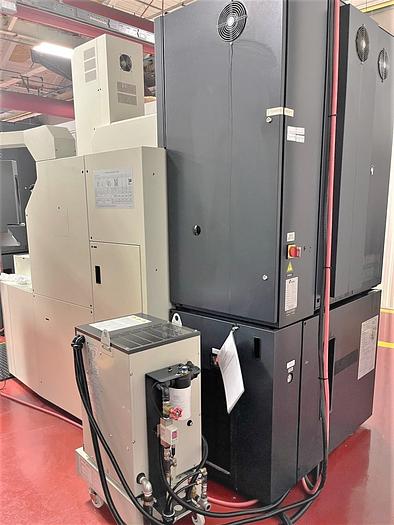

2019 Makino EDAF3 Sinker EDM
No longer available
2019 Makino EDAF3 Sinker EDM
$146,500 (USD)
Location:Illinois
Description
C-Axis MA Head (1,000 RPM)
16 Position Automatic Tool Changer
System 3R Macro
HS-Rib (20m/min)
Ultra Fine Machining Circuit II
Dielectric Chiller
Air Booster
Drop Tank Design
Flushing Unit w/ 3 Nozzles
Carbide Machining Circuit
Ethernet Interface
USB Interface
RS232 Interface
Orbiting Via CNC Control
LED Lighting
Super Spark IV Technology
Super Surface and Super Edge Technology
All Available Manuals and Disks
Specifications
| Manufacturer | Makino |
| Model | EDAF3 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 118616 |
| Control | Hyper I CNC Control |
| Work Table Size | 27.5" x 19.7" |
| Maximum Weight on Table | 1760 lbs. |
| Work Tank Inside Dimensions | 33.5" x 25.6" x 15.8" |
| Maximum Electrode Weight | 132 lbs. |
| X-Axis Travel | 17.7" |
| Y-Axis Travel | 13.8" |
| Z-Axis Travel | 13.8" |
| C-Axis Increment | 0.001 Degree |
| Type of Tank | Drop Tank |
| Maximum Machining Current | 100 peak amps |
| Rapid Traverse Rates | 197 IPM |
| Z Axis Jump Speed (HS-Rib) | 787 IPM |
| Side/Multi-Vector Jump Speed | 197 IPM |
| Through Spindle Flushing | Manual or by M-Code |
| Positioning Accuracy (X, Y, Z) | +/- 0.000039" |
| Repeatability (X, Y, Z) | +/- 0.000039" |
| Machine Dimensions LxWxH | 91.1" x 118.9" x 104.7" |
| Machine Weight | 10,582 lbs. |
