2002 Mazak Integrex e-650H/3000
2002 Mazak Integrex e-650H/3000
$199,500 (USD)
Location:North Dakota
orCall (863) 439-6066
Description
Y Axis Capability Full C Axis Spindle Rotation Live Milling/Drilling Capability B Axis Pendulum Head
B-Axis Contouring - 0.0001 Degree
Tailstock

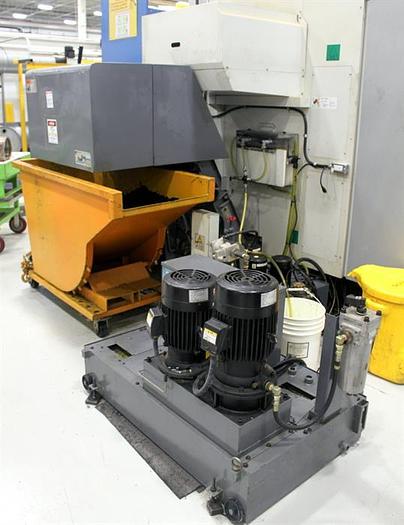

High Pressure Coolant Thru the Spindle
Long Boring Bar Stocker
Programmable Steady Hydraulic Steady Rest - SMW SLU 5.2 w/ 14" Capacity

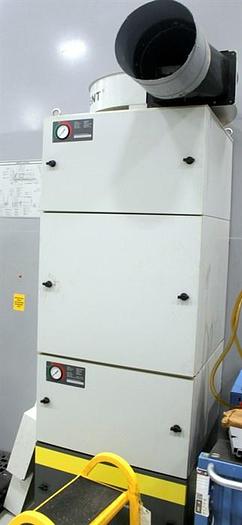

Mist Air Filtration System

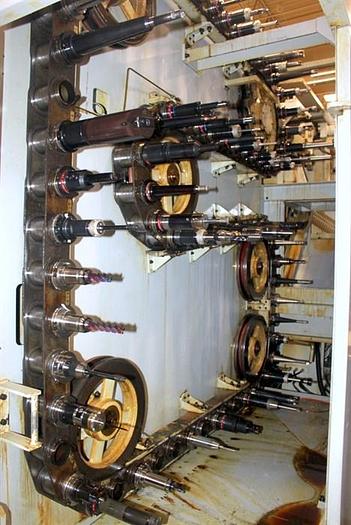

80 Station Tool Changer Chip Conveyor
Renishaw Probing
Simultaneous 5 Axis Capability
Tool Center Point Control
Automatic Tool Length Measurement
Coolant Through the Mill Head
Rotary Axis Sub Micron
Auto Pecking
Tilted Working Plane Command
Spindle Chiller Unit
Flash Tool
Comparison Stop
EIA/ISO Input Function
Hobbing Function
Ethernet
Rigid Tapping
PCMCIA I/O
Multi-Tap Transformer
Programmable Tailstock
All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Integrex e-650H/3000 |
| Year | 2002 |
| Condition | Used |
| Stock Number | 118624 |

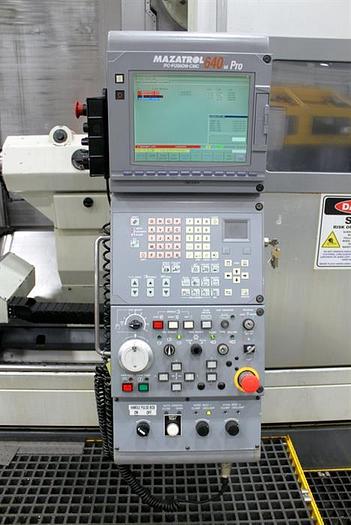

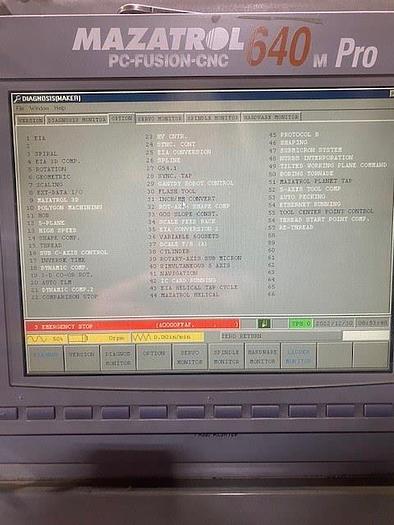

| Control | Mazatrol Fusion 640MT Pro |
| Chuck Size | 18" Chuck |
| Maximum Swing | 36.2" |
| Maximum Cutting Diameter - Chucking | 36.2" |
| Maximum Cutting Length | 120" |
| X-Axis Travel | 40.35" |
| Y-Axis Travel | +/- 12.8" (25.6") |
| Z-Axis Travel | 122.91" |
| B-Axis Tilt Movement | 240 Degrees (-30 Degrees to +210 Degrees) |
| B-Axis Increment | .0001 Degree |
| C-Axis Spindle Rotation | .0001 Degrees |
| Spindle Nose / Spindle Bore | A2-11" / 6.69" |
| Spindle speed | 1,600 RPM |
| Spindle Motor | 60 HP |
| Mill Spindle Speed / Mill Spindle Motor | 10,000 RPM / 50 HP |
| Turret Type | 1 Position with ATC |
| Rotary Tool Spindle Taper | CAT #50 |
| Number of Tool Positions | 80 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 10.23" / 19.68" / 66 lbs. |
| Rapid Traverse Rates X, Y, Z / W | 1575 IPM / 472 IPM |
| Tailstock Quill Travel / Taper | 6.3" / MT #6 |
| Machine Dimensions | 353"x152"x155" |
| Machine Weight | 66,000 lbs. |
