2012 Haas ST-30SS
Sold
2012 Haas ST-30SS
$52,500 (USD)
Location:Texas
Description
Programmable Tailstock

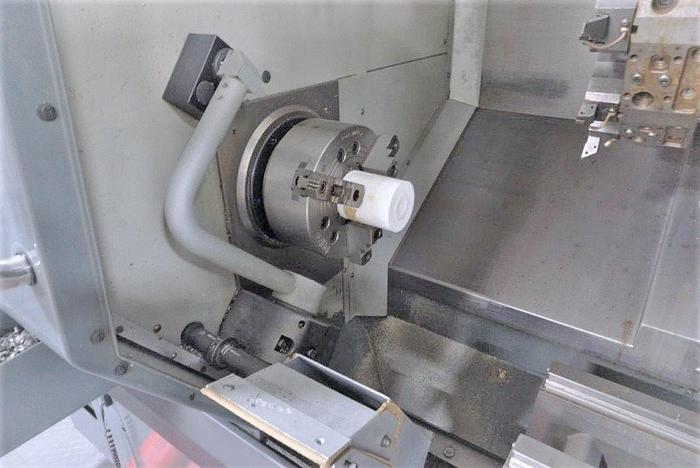

10" 3 Jaw Hydraulic Chuck

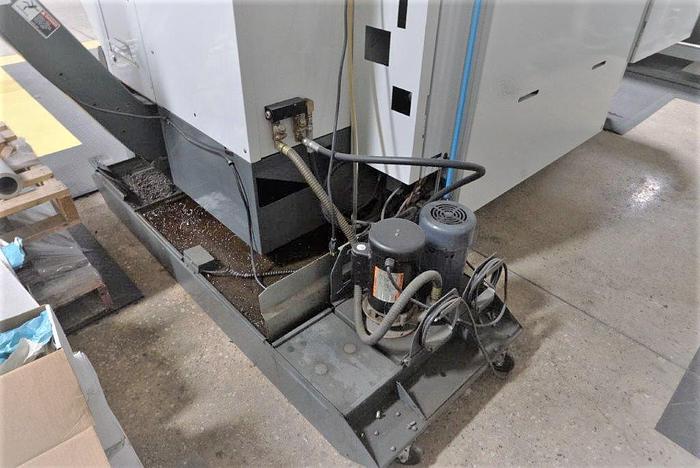

High Pressure Coolant - 300 PSI

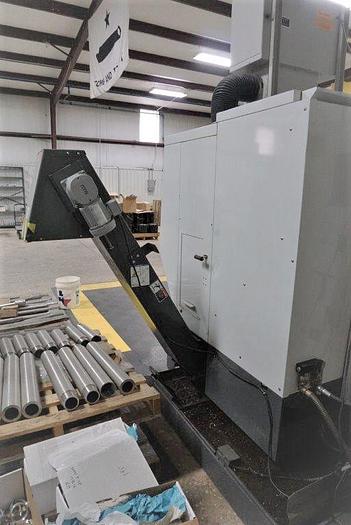

Chip Conveyor
Tool Presetter

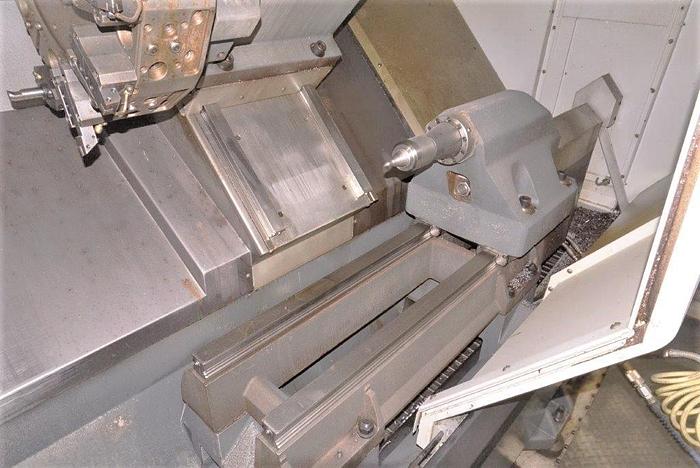

Programmable Tailstock
Parts Catcher

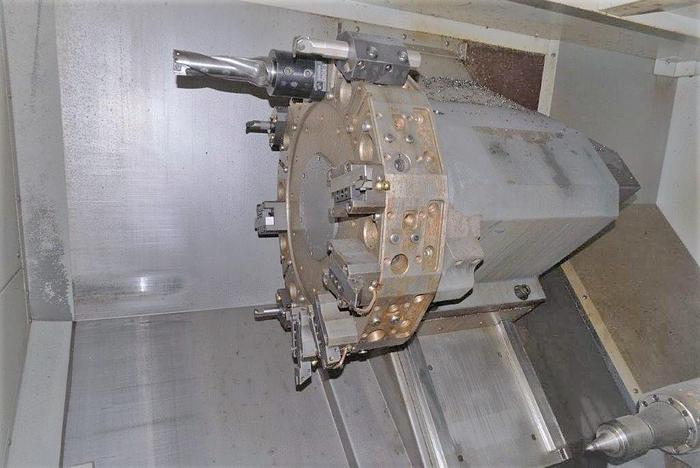

24 Station VB24 Hybrid Style Turret
Haas Intuitive Programming System
Rigid Tapping
High Intensity Lighting
USB Port Interface
RS 232 Port Interface
Memory Key Lock Switch

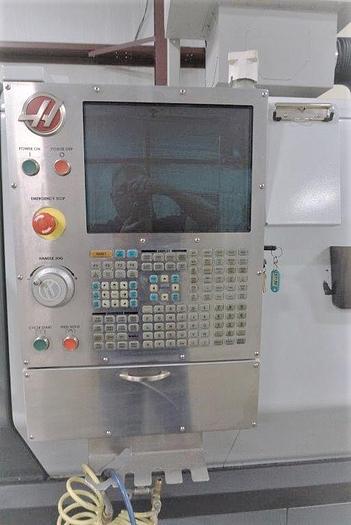

15" Color LCD Monitor
Assortment of Static Tool Blocks
Specifications
| Manufacturer | Haas |
| Model | ST-30SS |
| Year | 2012 |
| Condition | Used |
| Stock Number | 118633 |
| Machine Control | Haas CNC Control |
| Chuck Type | 10" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 31.75" |
| Maximum Swing Over Cross Slide | 20.75" |
| Maximum Turning Diameter | 16" |
| Maximum Machining Length | 26" |
| Maximum Bar Capacity | 3" |
| X-Axis Travel | 12.75" |
| Z-Axis Travel | 26" |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 30 - 4,800 RPM |
| Spindle Motor | 30 HP |
| Number of Turret Positions | 24 Station VB24 Hybrid |
| Rapid Traverse Rates | 945 IPM / 1200 IPM |
| Tailstock Body Travel / Taper | 20" / MT #4 |
| Machine Dimensions | 165" x 92" x 83" |
| Machine Weight | 13,300 lbs. |
