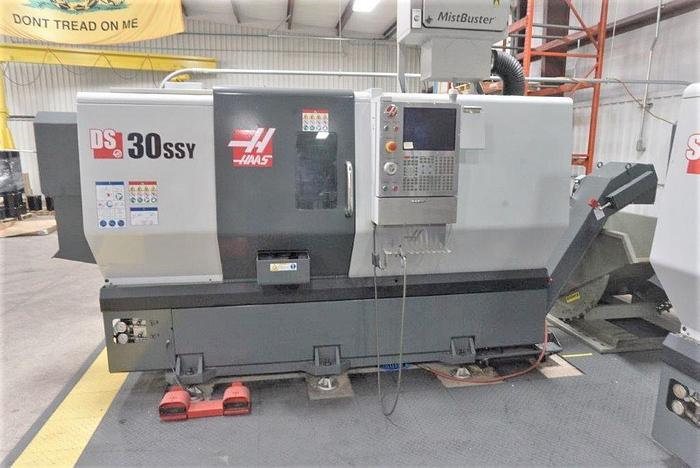

2016 Haas DS-30SSY Big Bore
Sold
2016 Haas DS-30SSY Big Bore
$92,500 (USD)
Location:Texas
Description

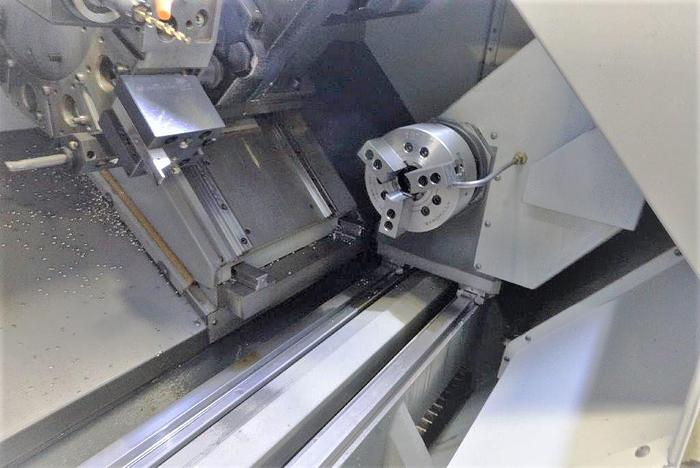

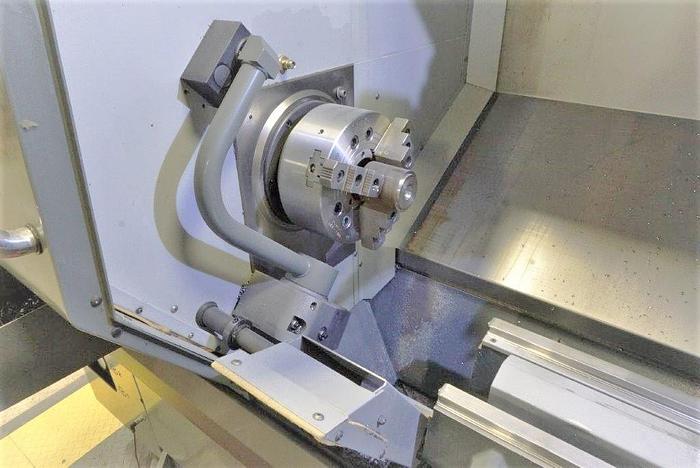

Subspindle Y Axis Capability Full C Axis Spindle Rotation Live Milling / Drilling Capable 8.3" 3 Jaw Hydraulic Chuck on Main Spindle 8.3" 3 Jaw Hydraulic Chuck on Subspindle Big Bore 3" Spindle Option
6,000 RPM Live Tools Auto Jet Air Blast Tool Presetter Parts Catcher Chip Conveyor

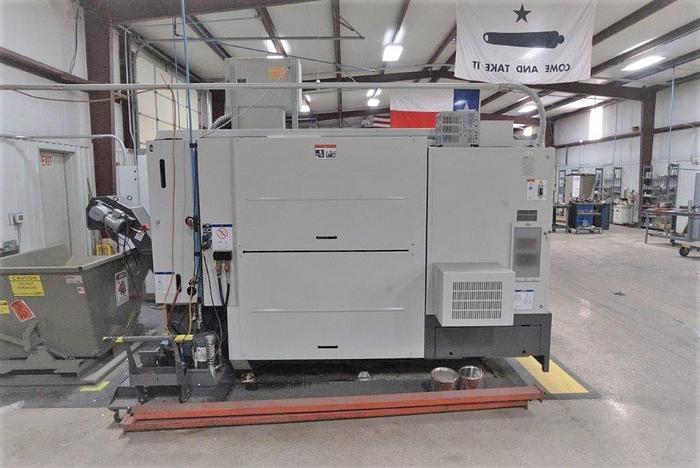

Electrical Cabinet Cooler (CabCool)
Ethernet Interface USB Port Interface RS 232 Port Interface Rigid Tapping

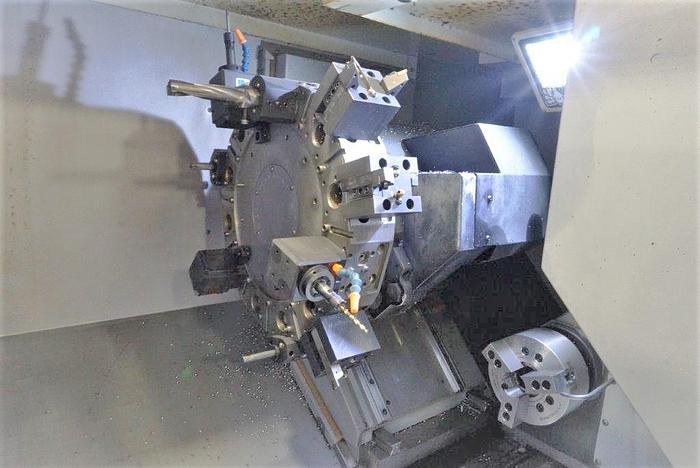

Spindle Orientation Haas Intuitive Programming System 16 MB Programming Memory VB24 VDI/BOT Hybrid Turret High Torque Live Tooling w/ C-Axis

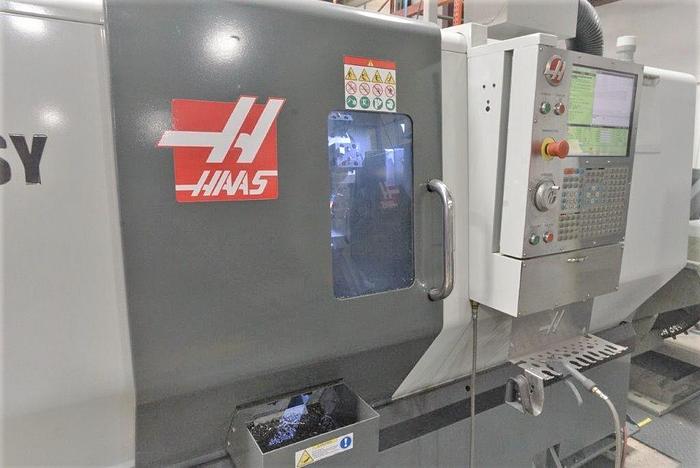

Color LCD Monitor
Memory Key Lock Switch All Available Tooling

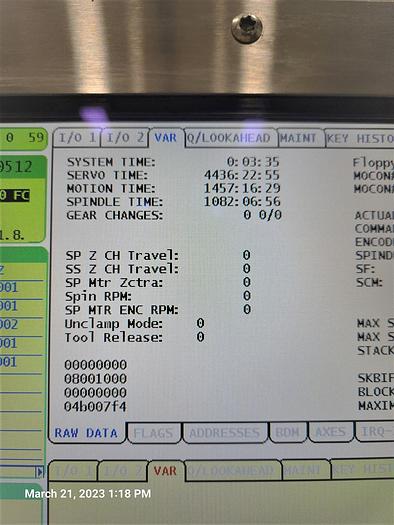

**Servo On Hours 4,436**
**Motion Hours 1,457**
**Spindle Hours 1,082**
Specifications
| Manufacturer | Haas |
| Model | DS-30SSY Big Bore |
| Year | 2016 |
| Condition | Used |
| Stock Number | 118634 |
| Control | Haas CNC Control |
| Chuck Sizes Main / Subspindle | 8.3" Hydraulic / 8.3" Hydraulic |
| Maximum Swing | 31.75" |
| Maximum Swing Over Cross Slide | 20.75" |
| Maximum Cutting Diameter | 16" |
| Maximum Distance Between Spindles | 23" |
| Maximum Bar Capacity | 3.03" |
| X-axis travel | 12.5" |
| Z-Axis Travel | 23" |
| Y-Axis Travel | +/- 2.0" |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 30 HP |
| Subspindle Nose / Subspindle Bore | A2-5" / 2.44" |
| Subspindle Speed | 4,000 RPM |
| Subspindle Motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 5 HP |
| Number of Turret Positions | 24 Station Turret - VB24 VDI/BOT Hybrid |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 1200 IPM |
| Machine Dimensions | N/A |
| Machin e Weight | 14,600 lbs. |
