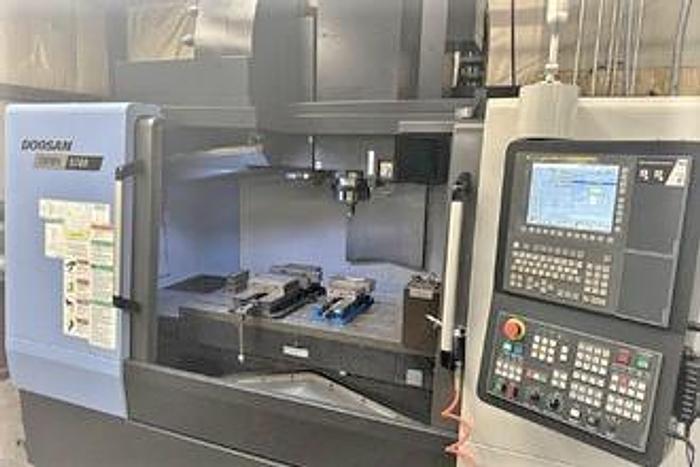

2017 Doosan DNM 5700
No longer available
2017 Doosan DNM 5700
$121,900 (USD)
Location:Ohio
Description
Renishaw Probing includes Tool Probe and Spindle Mounted Part Probe
-Renishaw OTS AA Optical Tool Setter
-Renishaw OMP60 Probe Kit

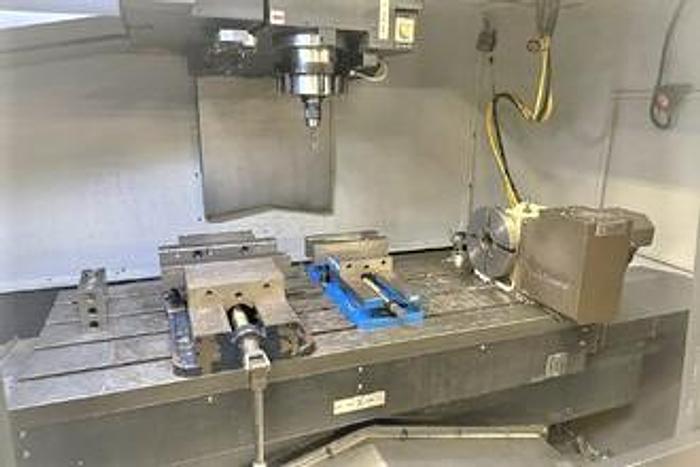

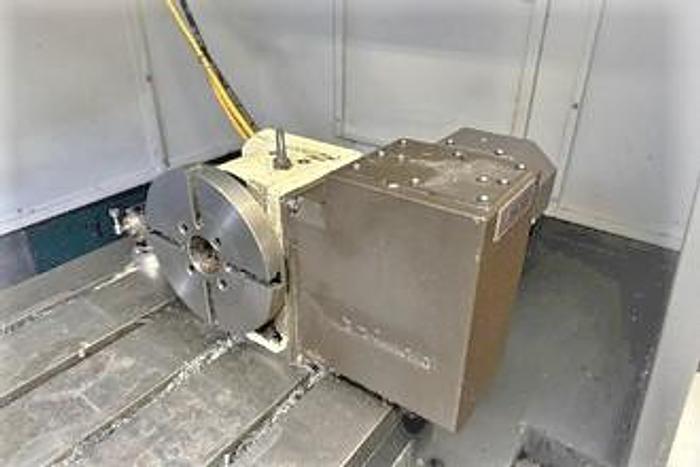

Komo RWE-160 4th Axis Rotary Table

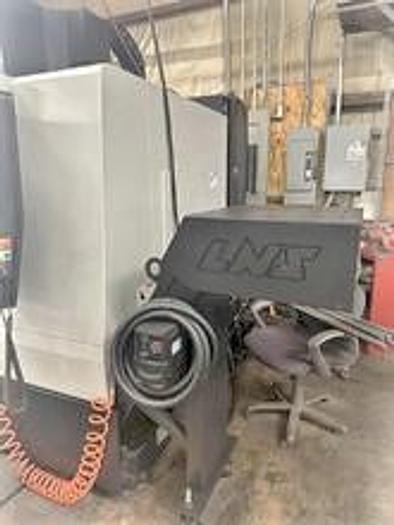

Chip Conveyor -LNS Turbo
15,000 RPM Spindle

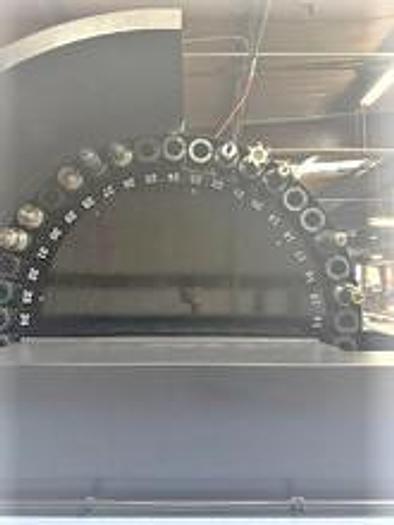

40 Station Side Mounted Tool Changer
Data Server Option
Rigid Tapping
Remote Jog Handle
Work Light
ATA Card Kit-Compact Flash Card 2 GB
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
Chiller Unit

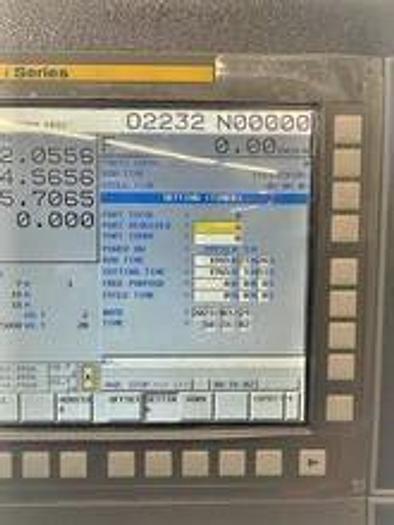

**ONLY 1,915 Run Hours**
**ONLY 1,765 Cutting Hours**
Specifications
| Manufacturer | Doosan |
| Model | DNM 5700 |
| Year | 2017 |
| Condition | Used |
| Stock Number | 118767 |

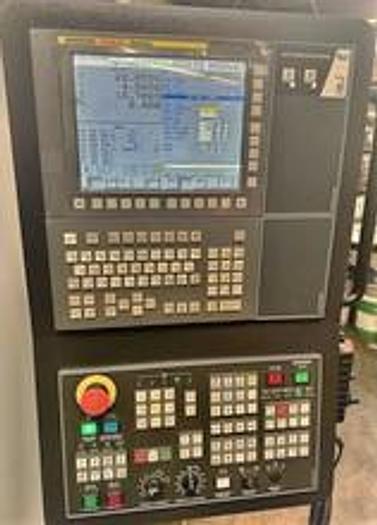

| Machine Control | Fanuc i Series Control |
| Table size | 51.2" x 22.44" |
| Maximum Table Load | 1,300 lbs. |
| X-Axis Travel | 41.3" |
| Y-Axis Travel | 22.44" |
| Z-Axis Travel | 20.08" |
| Spindle Taper | CAT #40 Big Plus |
| Spindle Speeds | 15,000 RPM |
| Spindle Motor | 25 HP |
| Number of Tool Positions | 40 Station Side Mounted ATC |
| Tool Change Time Tool to Tool | 1.3 Seconds |
| Rapid Traverse Rates X, Y / Z | 1653 IPM / 1417 IPM |
| Cutting Feedrates | 590 IPM |
| Machine Dimensions | 122.4" x 95" x 117.5" |
| Machine Weight | 14,330 lbs. |
