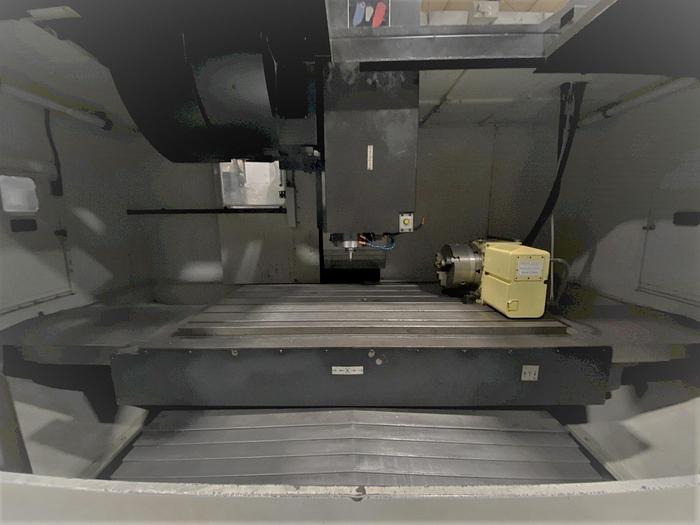

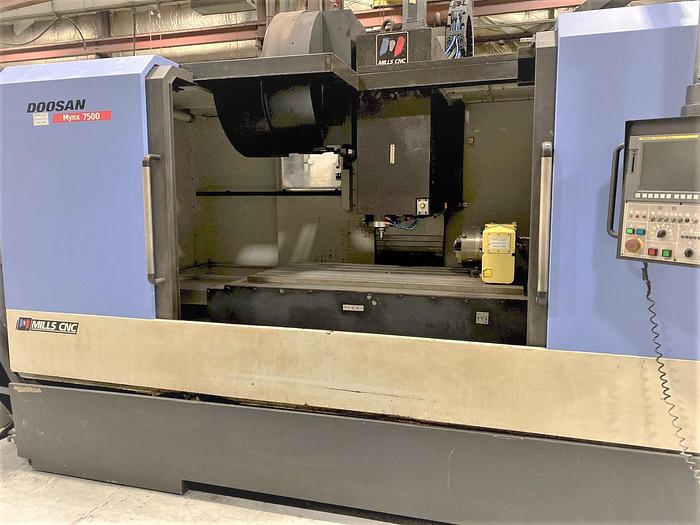

2010 Doosan Mynx 7500
2010 Doosan Mynx 7500
$102,500 (USD)
Location:Minnesota
orCall (863) 439-6066
Description

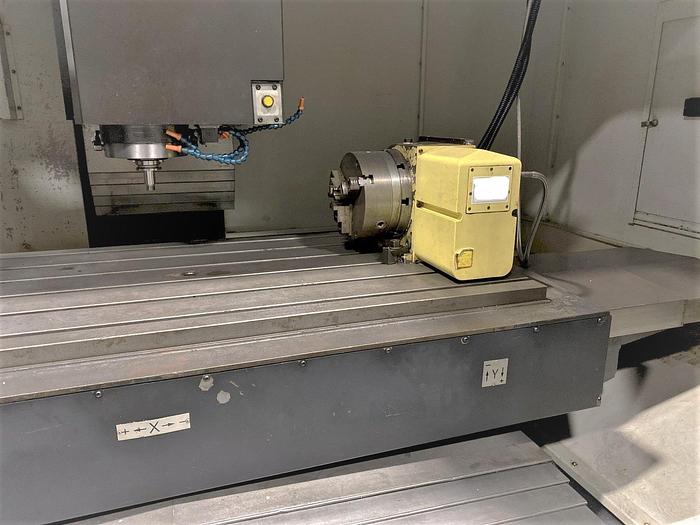

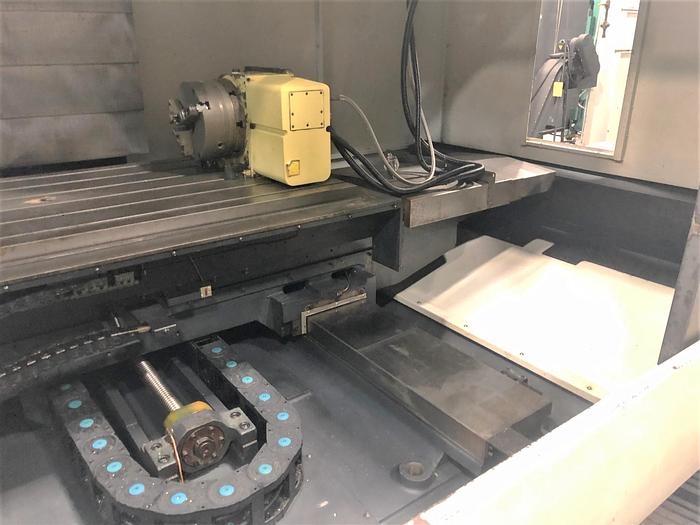

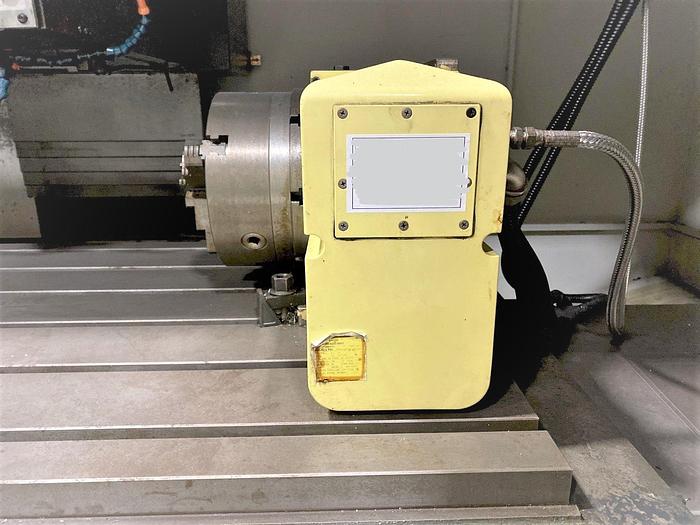

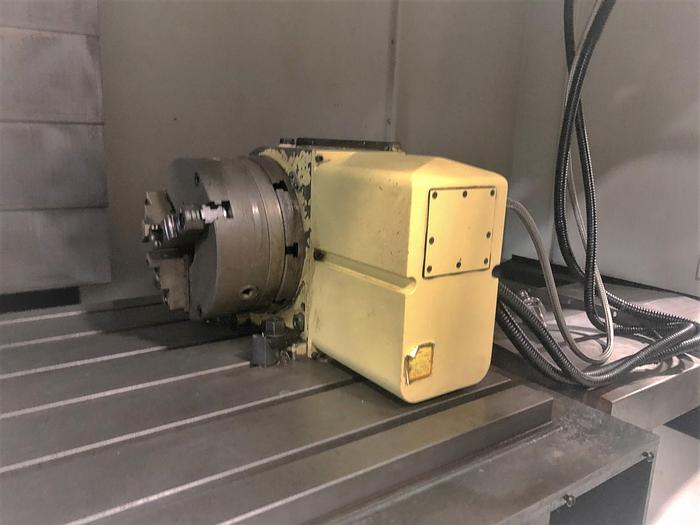

4th Axis Rotary Table
30 Station Side Mounted Tool Changer Chip Conveyor 12,000 RPM Spindle
Chip Blaster D30-70 High Pressure Coolant System
1000 PSI Coolant Through the Spindle

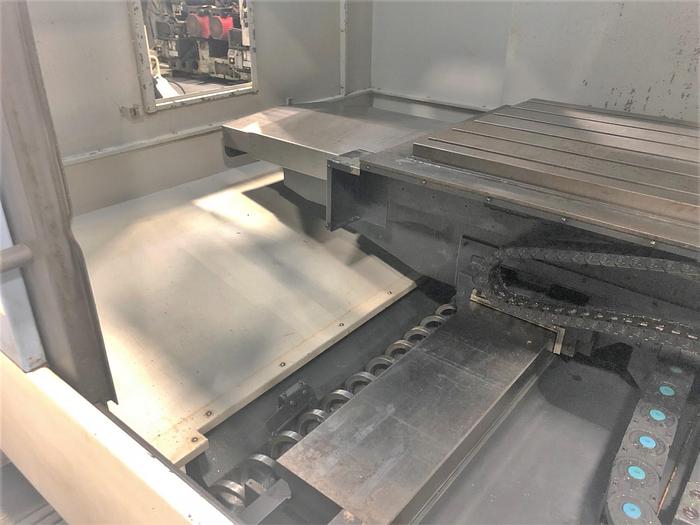

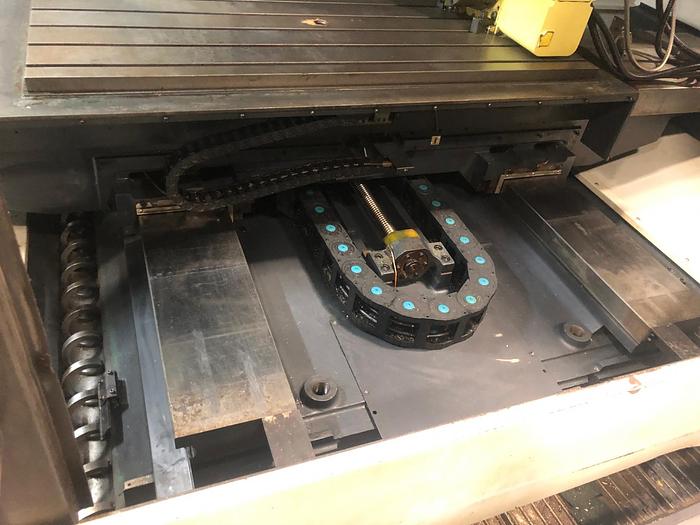

Dual Chip Augers Spindle Chiller Unit Geared Headstock Flood Coolant Hand Held MPG
Boxed Way Design Rigid Tapping
3.5" Floppy Disk Drive Interface RS 232 Port Interface All Available Manuals
Specifications
| Manufacturer | Doosan |
| Model | Mynx 7500 |
| Year | 2010 |
| Condition | Used |
| Stock Number | 118768 |
| Control | Fanuc 0i-MD Control |

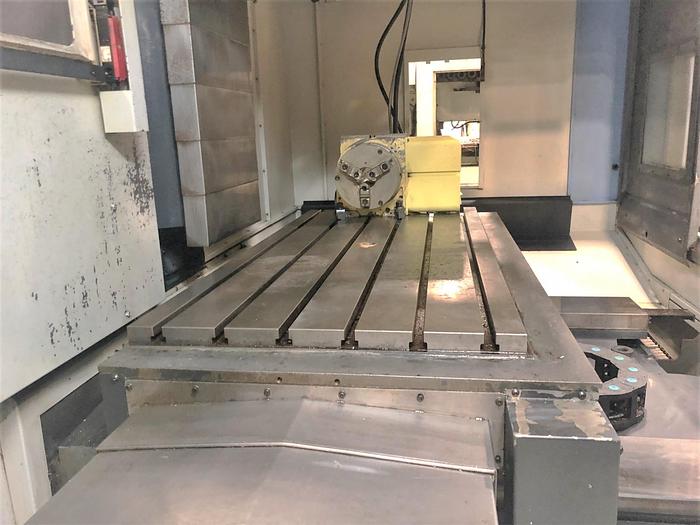

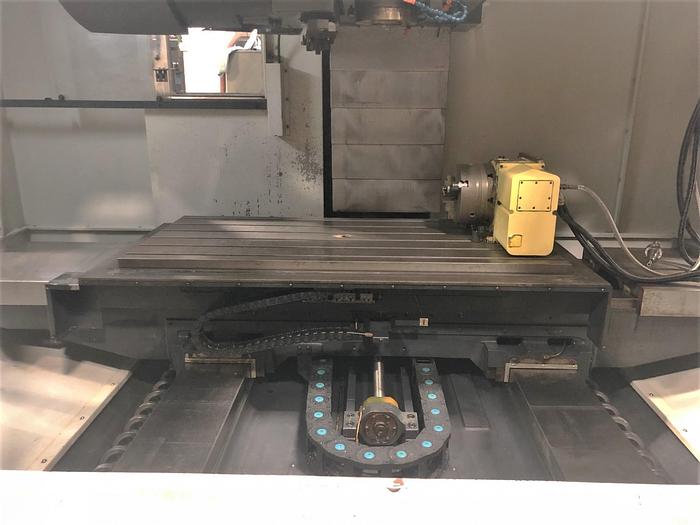

| Table Size | 63" x 29.5" |
| Maximum Table Load | 3,307 lbs. |
| X-Axis Travel | 60" |
| Y-Axis Travel | 30" |
| Z-Axis Travel | 24.6" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 12,000 RPM - Geared Head |
| Spindle Motor | 25 HP |

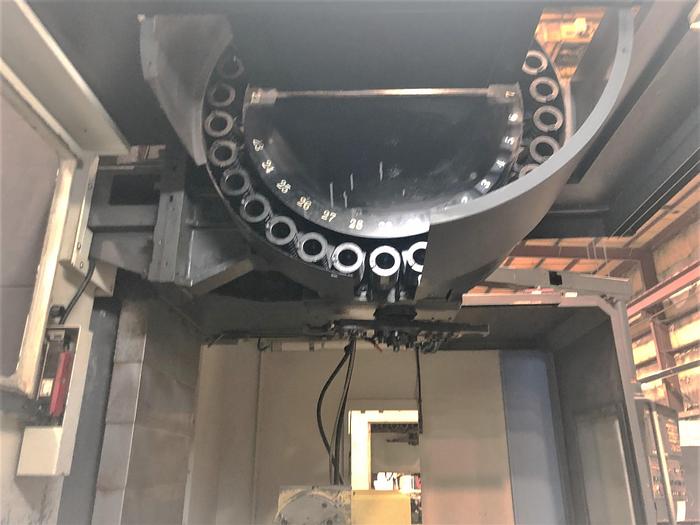

| Number of Tool Positions | 30 Station Tool Changer - Side Mounted |
| Maximum Tool Diameter / Length / Weight | 4.92" / 13.78" / 18.74 lbs. |
| Tool Change Time Tool to Tool | 1.2 Seconds |
| Tool Change Time Chip to Chip | 2.86 seconds |
| Rapid Traverse Rates X, Y / Z | 1181 IPM / 945 IPM |
| Machine Dimensions LxWxH | 154" x 160" x 127" |
| Machine Weight | 30,000 lbs. |
