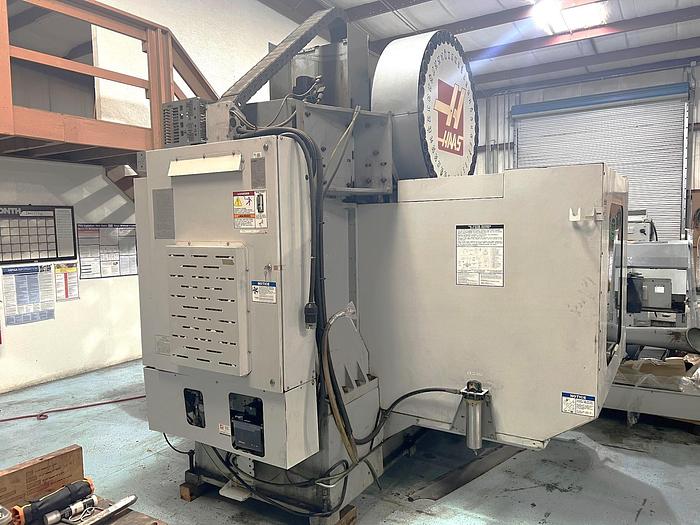

2006 Haas VF5D/40 wired for 4th Axis, through the spindle coolant
2006 Haas VF5D/40 wired for 4th Axis, through the spindle coolant
$39,950 (USD)
Location:Dundee, FL
Description
Through the Spindle Coolant

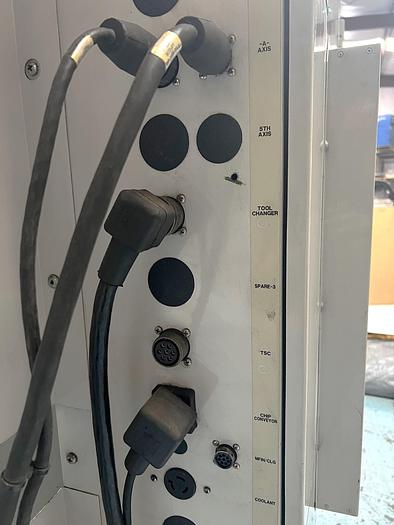

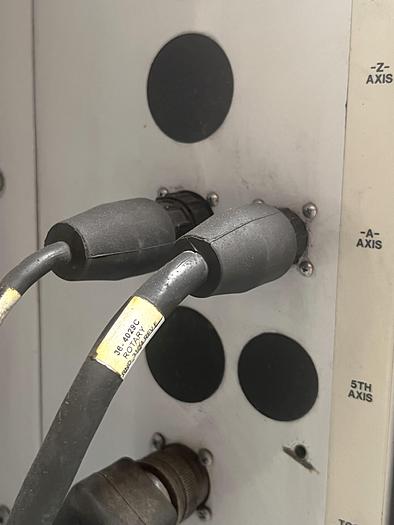

4th Axis Drive & Wiring

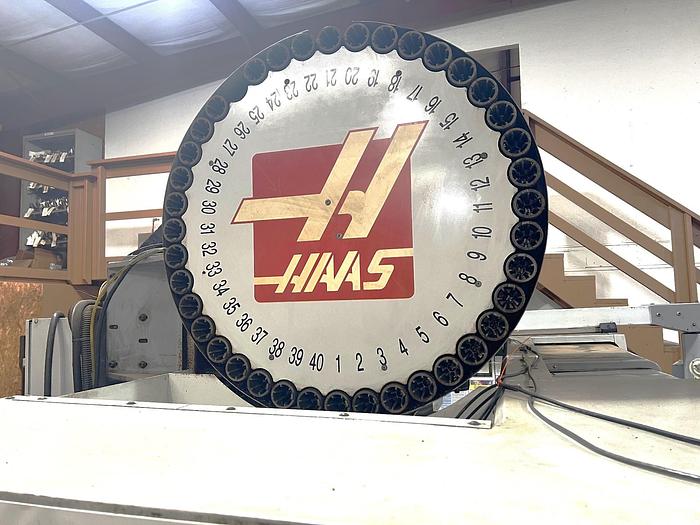

40 Station Side Mounted Tool Changer
Programmable Coolant Nozzle
Auger Style Chip Conveyor

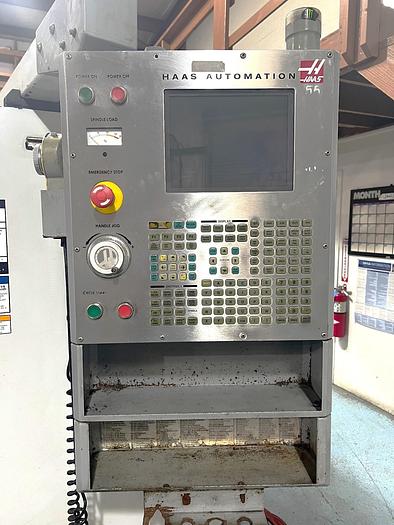

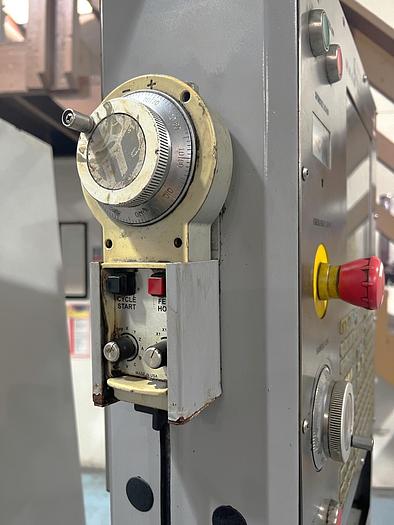

Remote Jog Handle
Rigid Tapping
Coordinate Rotation & Scaling
Spindle Orientation
1 MB Programming Memory
Visual Quick Code Programming
User Definable Macros

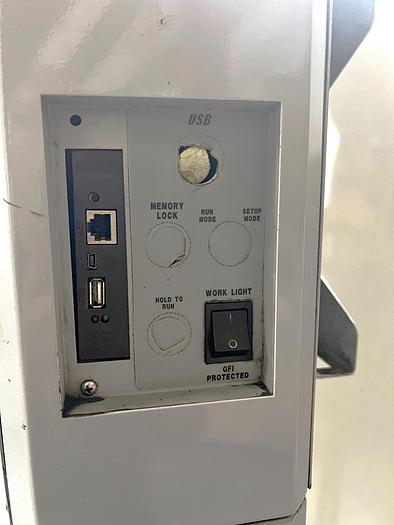

3.5" Floppy Disk Drive Interface converted to a USB Port Interface

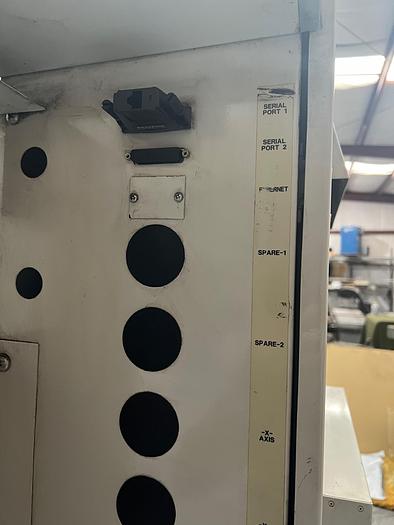

RS 232 Port Interface

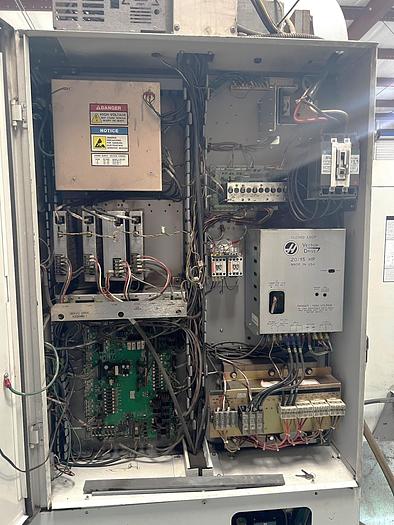

Wired 208/230 Volt Electrics
RECENT WORK DONE

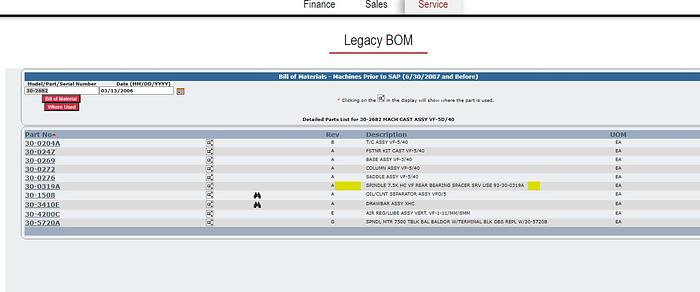

Recently Replaced Spindle Motor
New X Axis Linear Guide Rails
New X Axis Ball Nut and Thrust Bearings
New Y Axis Thrust Bearings
New Z Axis Ball Screw & Thrust Bearings
New Lube Lines
Replaced All Window Glass in Front and Both Sides

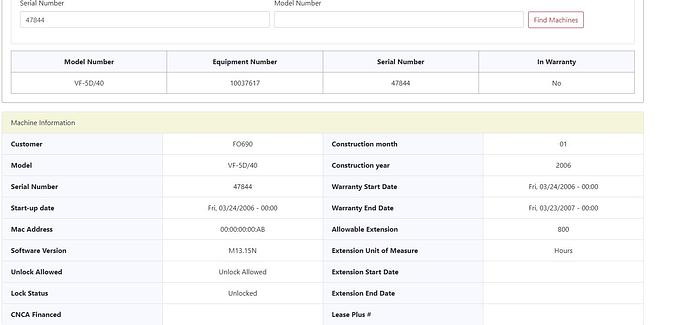

**Manufactured New in March of 2006**

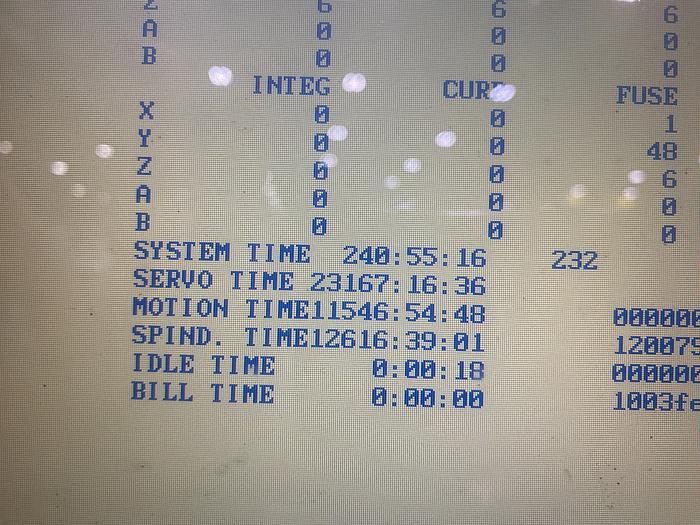

**Machine Motion Hours 11,546**
***Machine Spindle Hours 12,616**

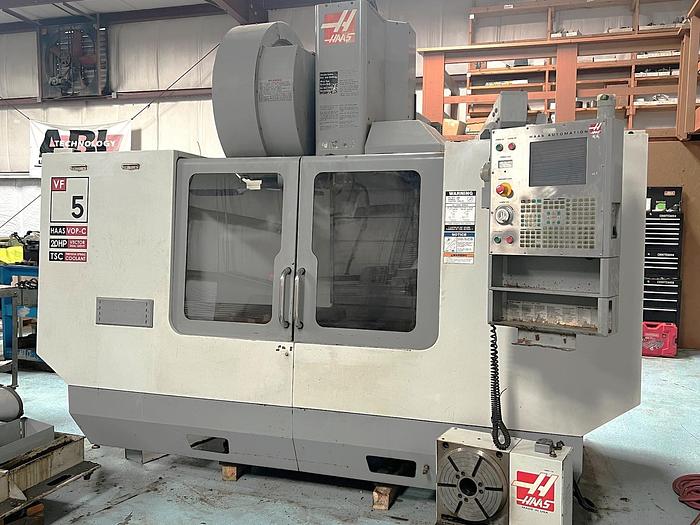

**Haas HRT-310 4th Axis Rotary Table seen in photos availalble at additional cost**
Specifications
| Manufacturer | Haas |
| Model | VF5D/40 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118784 |

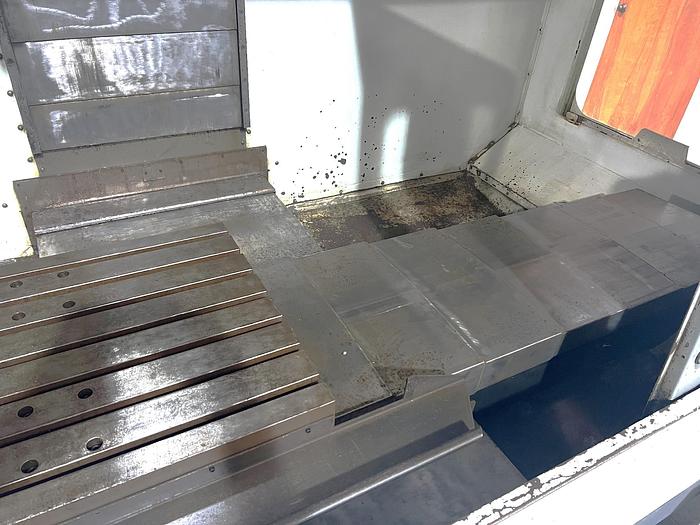

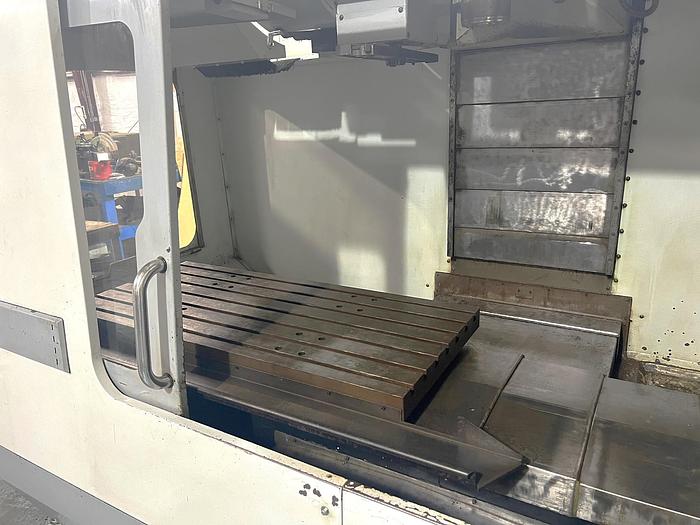

| Table size | 52" x 23" |
| Table load capacity | 4,000 lbs. |
| X-axis travel | 50" |
| Y-axis travel | 26" |
| Z-axis travel | 25" |
| Spindle nose to table | 7" - 32" |
| Transmission | Direct Drive |
| Spindle motor | 20 HP (brushless) |
| Spindle taper | CAT 40 |
| Spindle speeds | 7,500 RPM |
| Tool magazine capacity | 40 Position ATC Side Mount |
| Cutting feedrates | 500 IPM |
| Rapid traverse rates | 710 IPM |
| Machine dimensions lxwxh | 148"x102"x118" |
| Machine weight | 14,600 lbs. |
