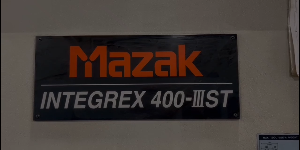

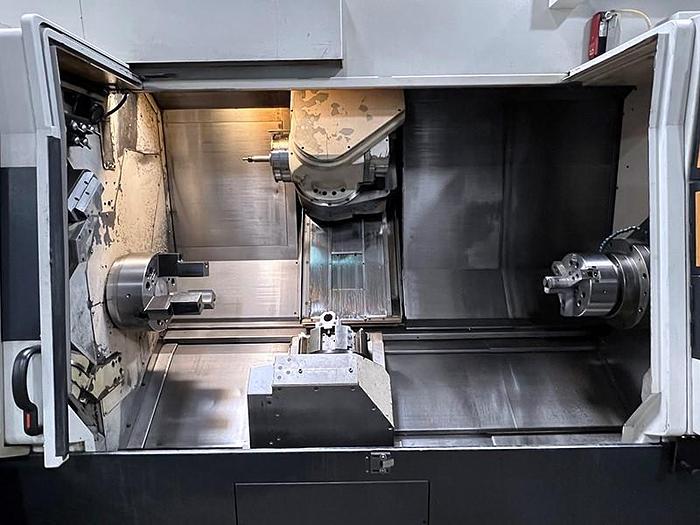

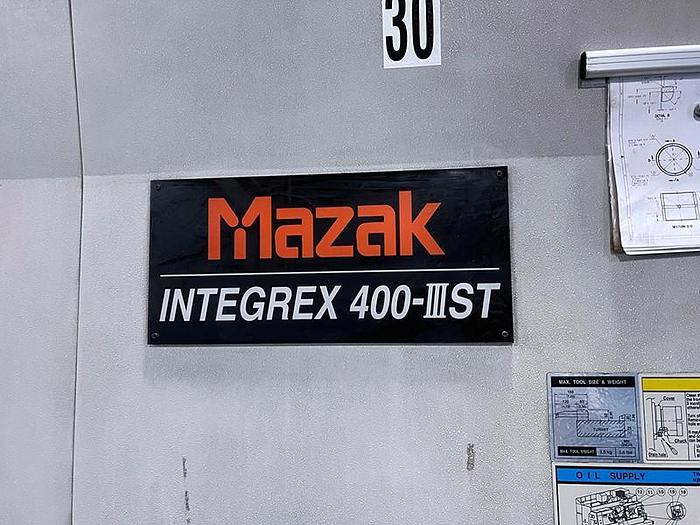

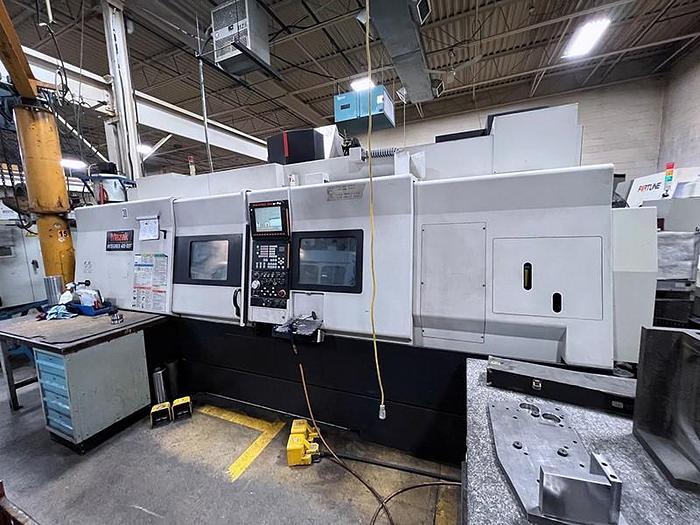

2003 Mazak Integrex 400-IIIST/1500
2003 Mazak Integrex 400-IIIST/1500
$149,500 (USD)
Location:Ontario, Canada
Description
Y Axis Capability B Axis Pendulum Head Subspindle Full "C" Axis Main Spindle and Subspindle Live Milling/Drilling Capability

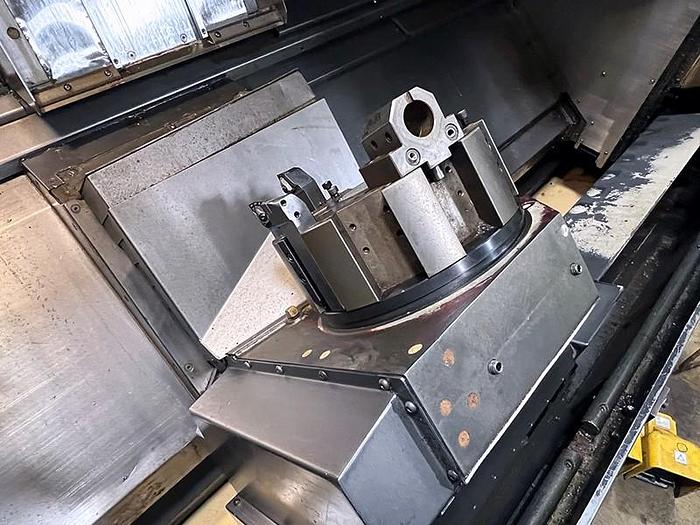

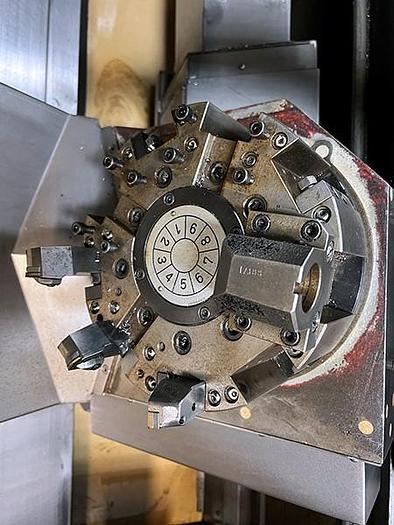

9 Station Lower Turret 15" & 10" 3 Jaw Hydraulic Chucks 40 Tool Magazine

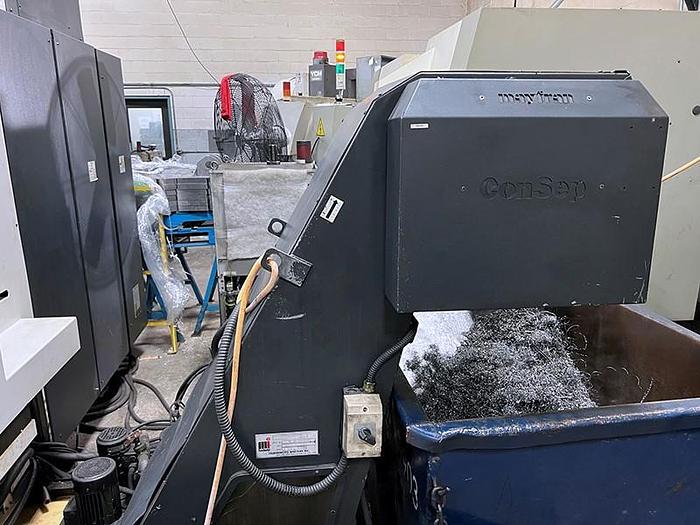

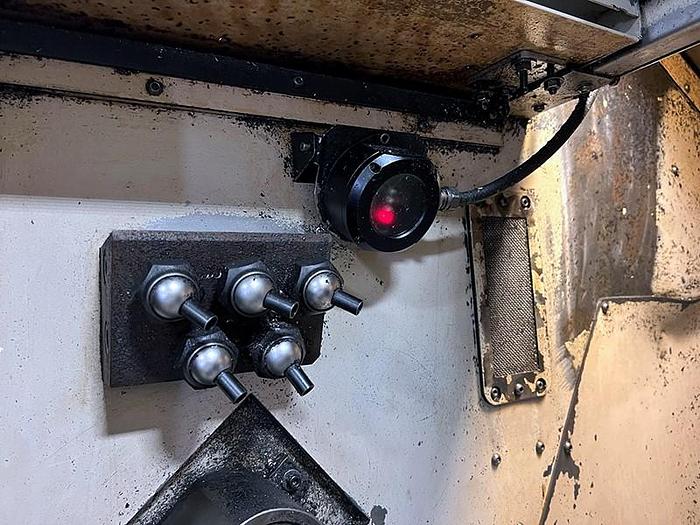

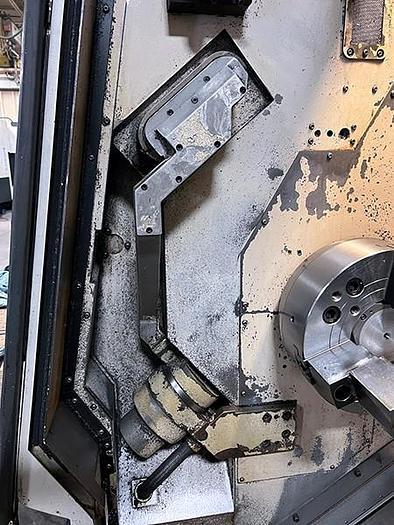

Mist Collector Coolant Thru Mill Head Chip Conveyor Automatic Tool Eye
Probing
Mill Spindle Synchronous Tapping
5 Axis Simultaneous Machining Chuck Air Blast Subspindle Main & Subspindle Synchronous Cylindrical Interpolation EIA Coordinate Rotation
EIA Helical Tapping
EIA Helical Interpolation Polar Coordinate Input Rotary Axis Shape Compensation
Rotary Axis Submicron
Sub C Axis Control Multi Tool Holder / Flash Tool Tool Center Point Control Variable 600 Sets Auto Pecking Comparison Stop Backround Tool Path Check

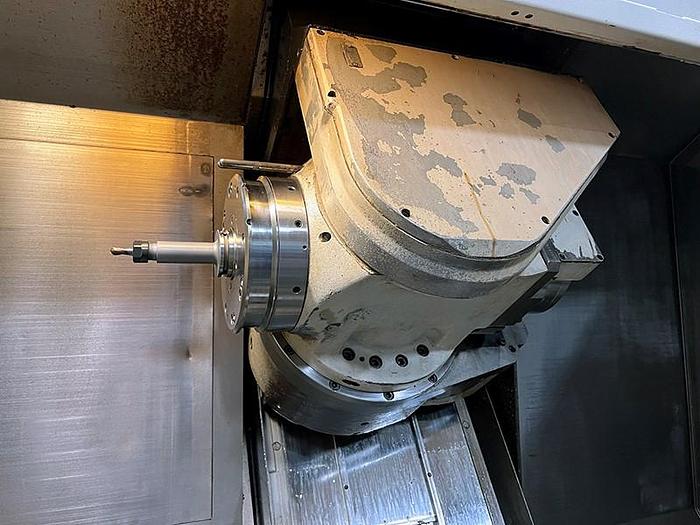

B Axis Angle Positioning Turning
B Axis Control
2nd Auxiliary Functions
Direct DWG Size Input
Work Coordinates Select
Polar Coordinates Input
Enhanced Y Axis Mazatrol (Face 1 & Face 2)
2nd Turret Mazatrol
User Macro User Macro w/ Interrupt IC Memory Card Interface Cardbus Interface - 2 Slots LAN Port Interface USB Port Interface Multi Tap Transformer 230/460 Volt

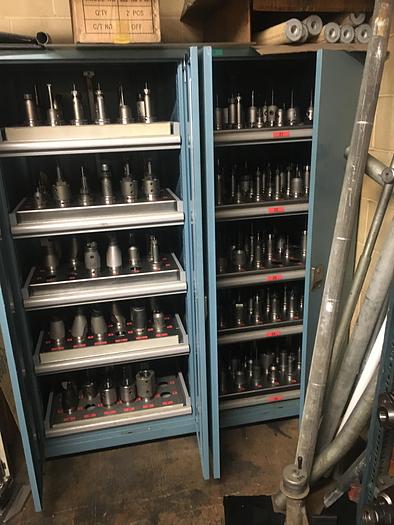

Miscellaneous Tool Holders All Available Manuals

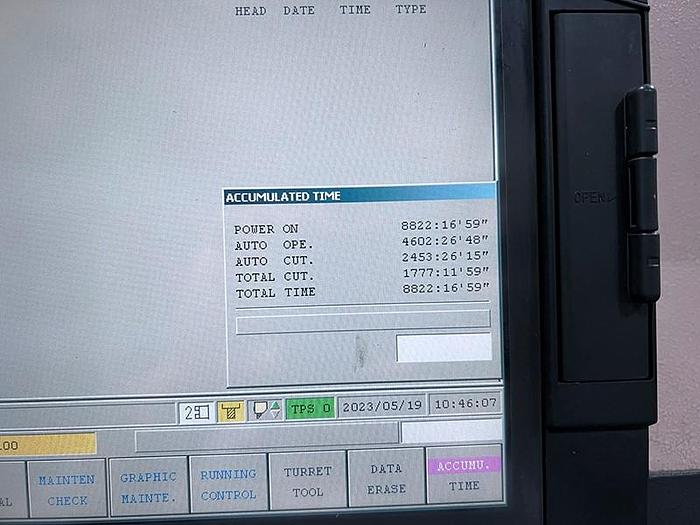

**Auto Operation Hours 4,602**
**Total Cutting Hours 1,777**
Specifications
| Manufacturer | Mazak |
| Model | Integrex 400-IIIST/1500 |
| Year | 2003 |
| Condition | Used |
| Stock Number | 118785 |

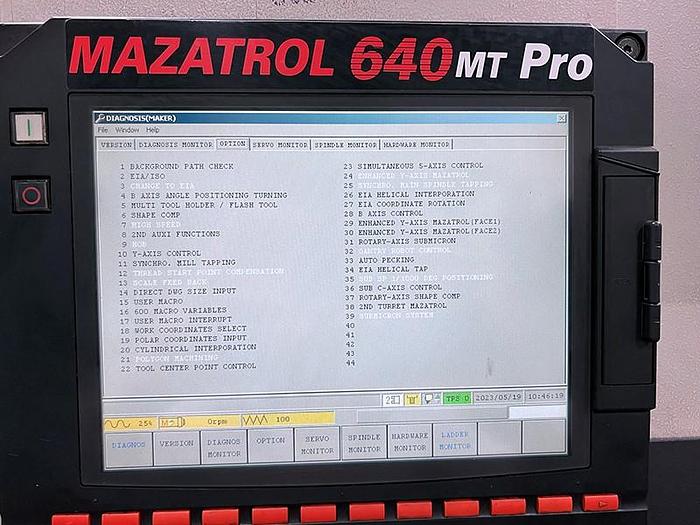

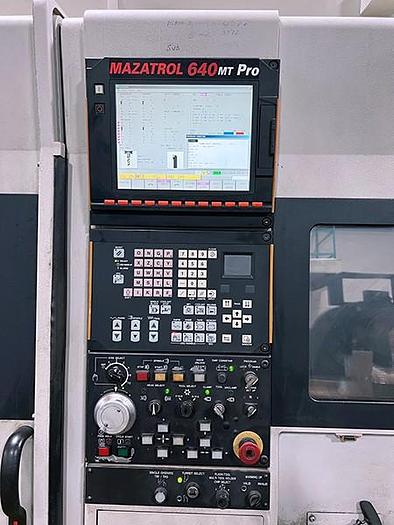

| Control | Mazatrol Fusion 640MT Pro |

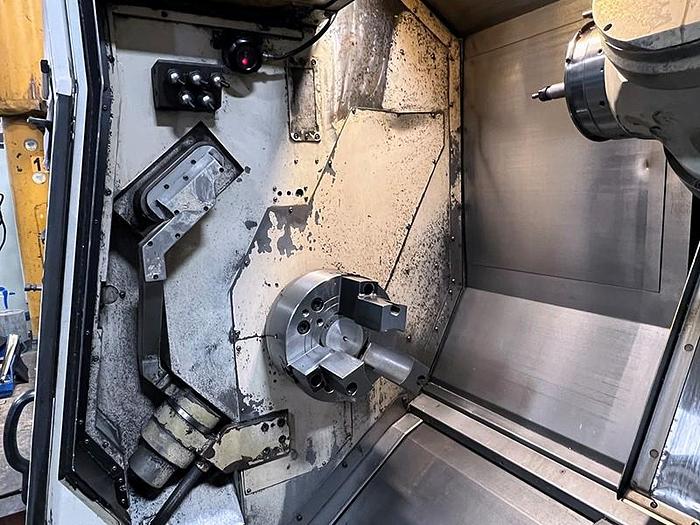

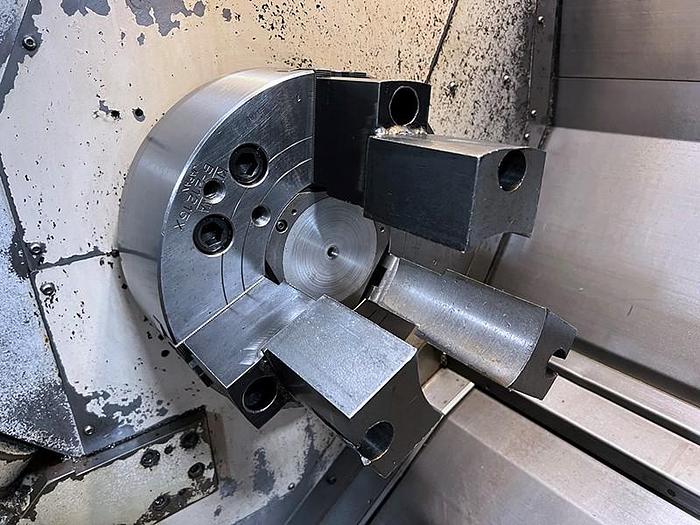

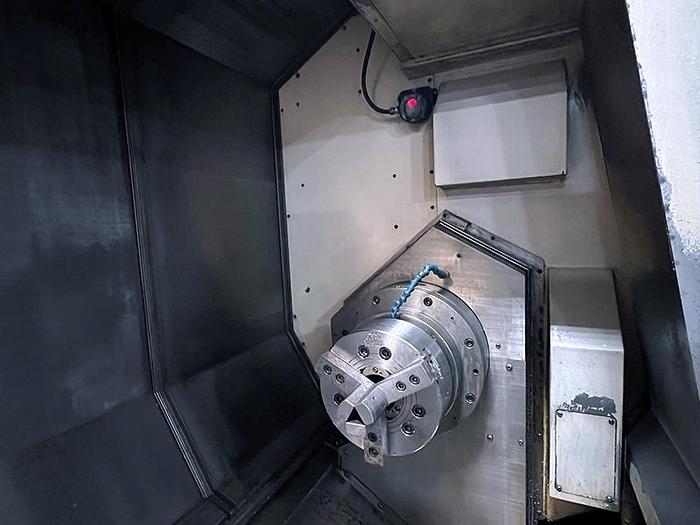

| Chuck Sizes Main / Subspindle | 15" Hydraulic / 10" Hydraulic |
| Maximum Swing / Using Y Axis | 34" / 26"-30" |
| Maximum Cutting Length | 60" |
| Distance Between Chuck Faces | 60.2" |
| X1 / X2 Travel | 24.8" / 9.06" |
| Y-Axis Travel | +/- 4.53" |
| Z1 / Z2 Travel | 62.41" / 60.24" |
| B-Axis Tilt Movement | 225 Degrees in .001 Increment |
| C Axis Spindle Rotation Main & Subspindle | .001 Degree |
| W-Axis Travel - Subspindle | 60.24" |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 4.4" / 4.0" |
| Spindle Speeds | 35 - 3,300 RPM |
| Spindle Motor | 40 HP |
| Subspindle Nose / Bore / Bar Capacity | A2-8" / 3.46" / 3.0" |
| Subspindle Speed | 4,000 RPM |
| Subspindle Motor | 35 HP |

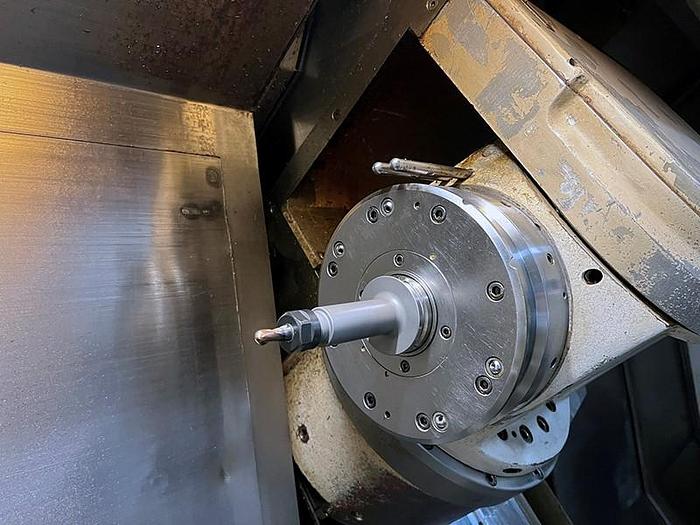

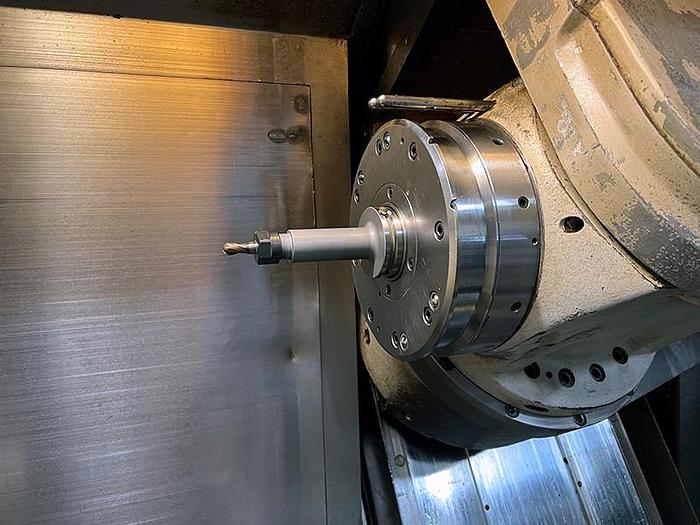

| Rotary Tool Speed / Rotary Motor | 12,000 RPM / 25 HP |
| Number of Tools in ATC - KM63 | 40 Station Tool Changer |
| Live Tool Taper | KM63 |
| Rapid Traverse Rates X, Z / Y / W | 1496 IPM / 1024 IPM / 1181 IPM |
| Machine Dimensions | 202" x 93" x 115" |
| Machine Weight | 28,500 lbs. |
