2006 Mazak QT-6T
Sold
2006 Mazak QT-6T
$26,500 (USD)
Location:British Columbia, Canada
Description
5" 3 Jaw Hydraulic Chuck
Kitagawa CRS36 Collet Chuck w/ Full set of 171E Collets
12 Position Turret
Manual Tool Eye
Manual Tailstock w/ Programmable Quill
Automatic Parts Catcher
Chip Conveyor
Full Set of Spindle Liners & 5/8" Square Tools
Coolant System with Tank and Pump
Card Interface
RS 232 Port Interface All Available Tooling All Available Manuals
Multi-Tap Transformer, currently wired 200V
**Original Owner, Customer Bought New in mid 2006**
**Very Low Hours of Use, Most Parts Were Too Large For This Machine**

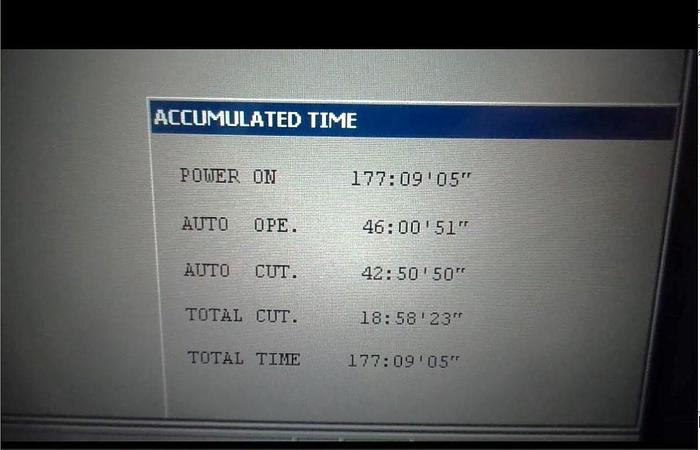

**Power On Hours - 177.09**
**Auto Operation Hours - 46.00**
**Total Cutting Hours - 18.58**
Specifications
| Manufacturer | Mazak |
| Model | QT-6T |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118812 |

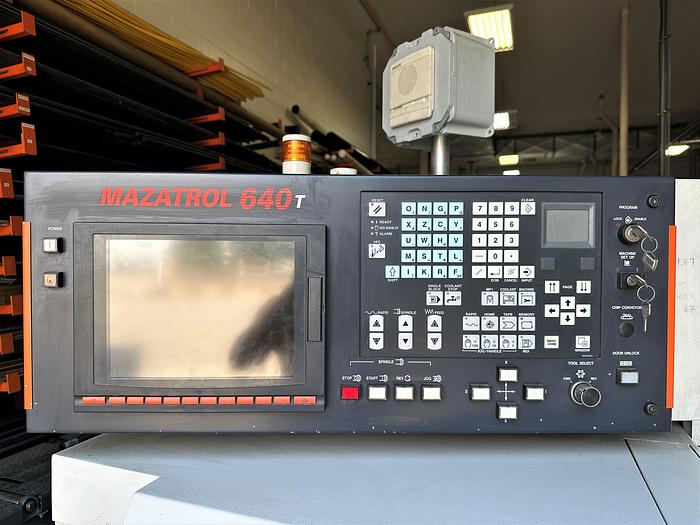

| Control | Mazatrol Fusion 640T |
| Chuck Size | 5" 3-Jaw Hydraulic & CRS36 Collet Chuck |
| Maximum Swing | 17.32" |
| Maximum Cutting Diameter | 5.12" |
| Maximum Machining Length | 7.68" |
| X-Axis Travel | 3.15" |
| Z-Axis Travel | 7.87" |
| Spindle Nose / Bore / Bar Capacity | 4.53" Flat Nose / 1.73" / 1.26" |
| Spindle Speeds | 35 - 7,000 RPM |
| Spindle Motor | 7 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 1181 / 1181 IPM |
| Tailstock Body Travel / Tailstock Taper | 10.63" / MT #3 |
| Machine Dimensions LxWxH | 68"x53"x62" |
| Machine Weight | 4,400 lbs |
