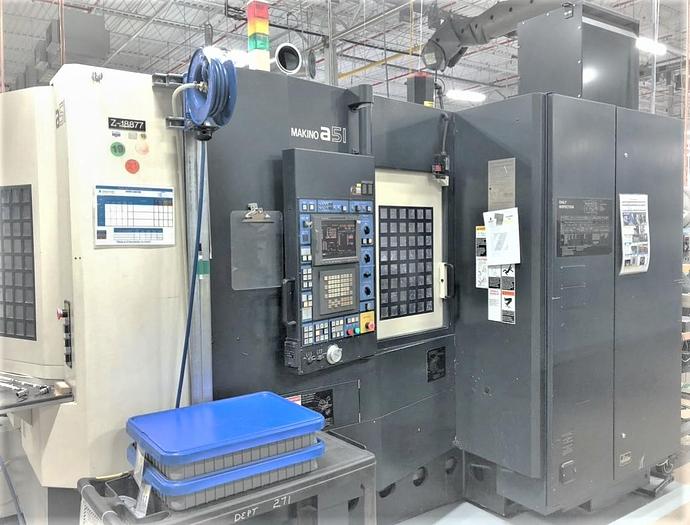

2007 Makino A51
Sold
2007 Makino A51
$44,500 (USD)
Location:Ohio
Description
2 Pallet Changer System .001 Degree Full 4th Axis Rotary Table 60 Position Tool Magazine
14,000 RPM Spindle

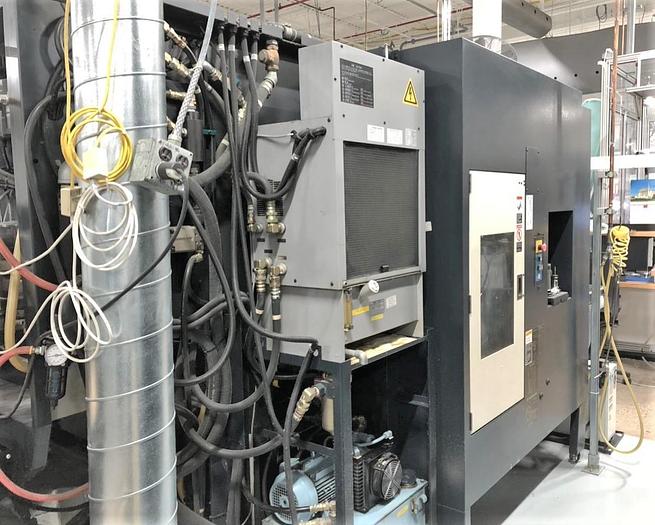

Through the Spindle Coolant Chip Conveyor Flood Coolant System Coolant Tank with Pump Rigid Tapping Spindle Chiller Unit 3.5" Floppy Disk Interface RS 232 Port Interface
Machine 3 Color Status Condition Lights All Available Manuals
**From medical implement manufacturer, (2) available, both in excellent condition and available immediately**
Specifications
| Manufacturer | Makino |
| Model | A51 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118827 |

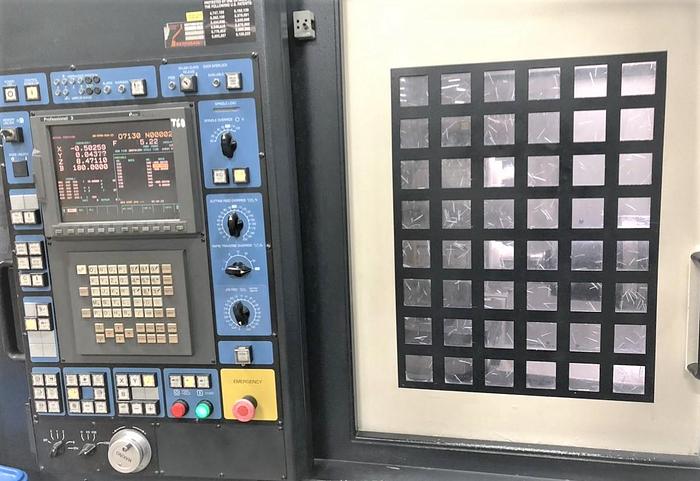

| Control | Makino Pro 3 Series Control |
| Pallet Size / Number of Pallets | 15.75" x 15.75" / 2 Pallet Changer |
| Maximum Weight on Table | 880 lbs. |
| Maximum Part Size D x H | 24.8" x 35.4" |
| Table Indexing | .001 Degree - Full 4th Axis |
| X-axis travel | 22.5" |
| Y-Axis Travel | 22.5" |
| Z-Axis Travel | 19.7" |
| Spindle Nose | CAT #40 |
| Spindle Speeds | 14,000 RPM |
| Spindle Motor | 33.5 HP |
| Number of Tool Positions | 60 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 5.51" / 11.81" / 17.6 lbs. |
| Tool Change Time Chip to Chip | 2.3 seconds |
| Tool Change Time Tool to Tool | .9 second |
| Rapid Traverse Rates | 1,969 IPM |
| Machine Dimensions LxWxH | 184" x 84" x 112.5" |
| Machine Weight | 18,900 lbs. |
