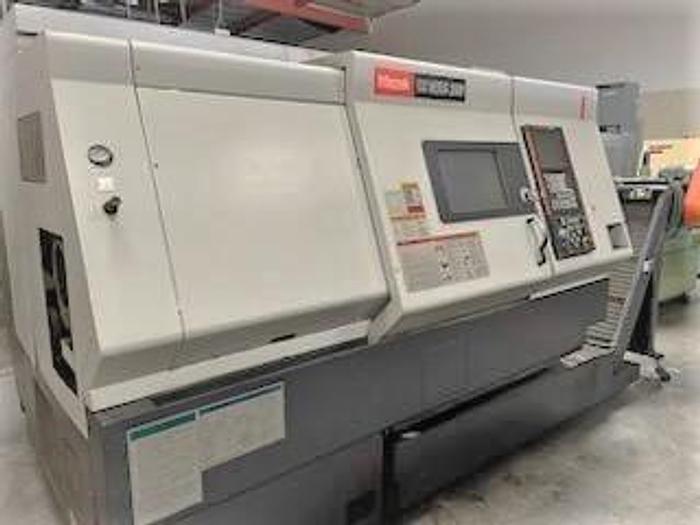

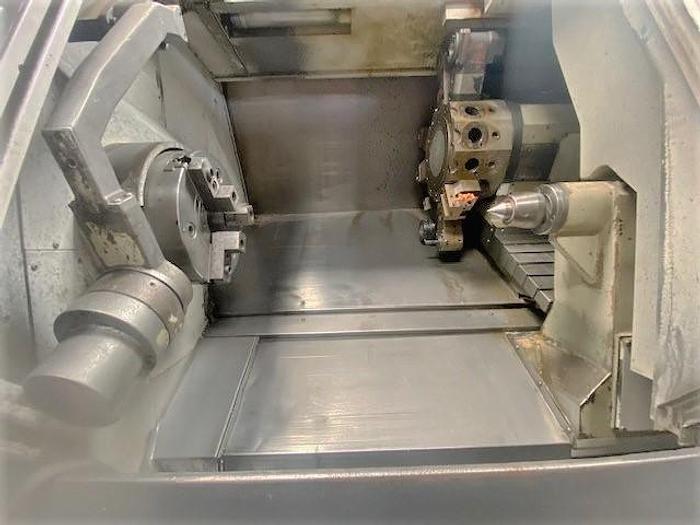

2006 Mazak Nexus QTN 350M/650 with millling
2006 Mazak Nexus QTN 350M/650 with millling
$89,500 (USD)
Location:Illinois
orCall (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling / Drilling Capability
Chip Conveyor

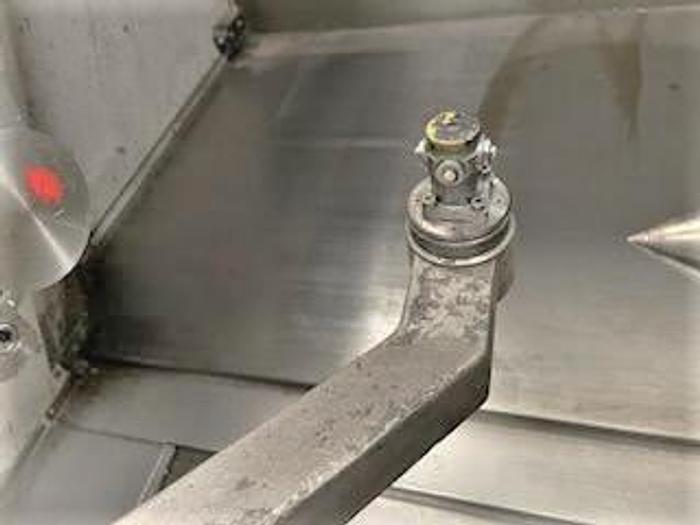

Tool Presetter
Programmable Hydraulic Tailstock

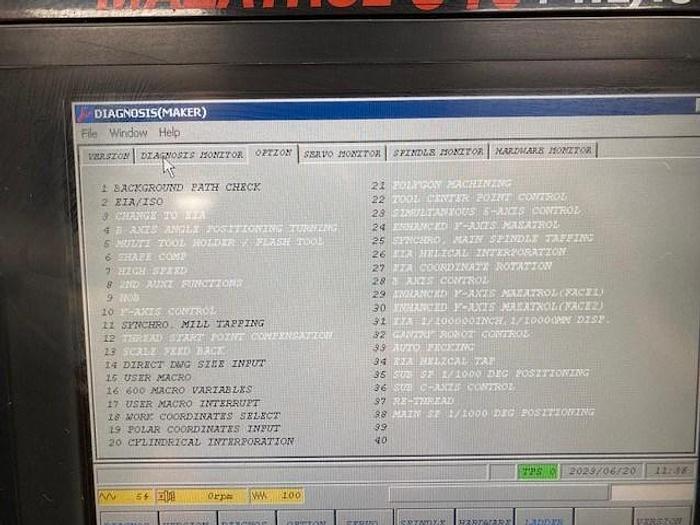

Cylindrical Interpolation
EIA/ISO Input Function
Mill Synchronous Tapping (rigid tapping)
User Macro Interupt
Backround Tool Path Check
Direct Drawing Size Input
User Macro - 600 Variables
Work Coordinate Interupt
Coolant System with Tank & Pump
USB Port Interface
Card Interface
RS 232 Port Interface
All Available Tool Blocks & Manuals
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 350M/650 with millling |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118852 |

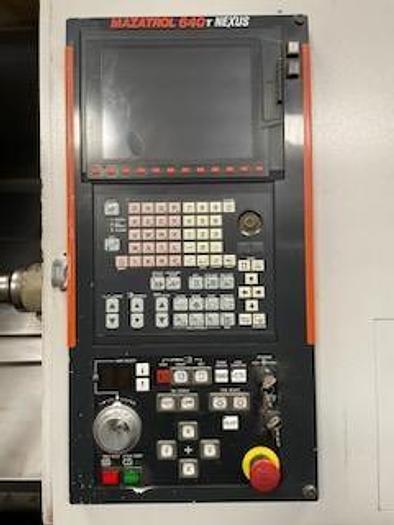

| Machine Control | Mazatrol 640T Nexus |

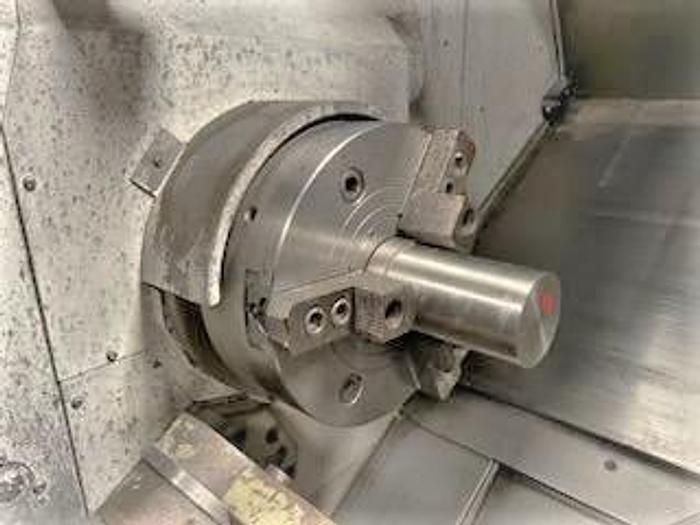

| Chuck size | 12" Hydraulic Chk |
| Maximum swing | 29.75" |
| Swing over cross slide | 16.5" |
| Maximum cutting diameter | 16.5" |
| Maximum machining length | 23.8" |
| X-axis travel | 8.875" |
| Z-axis travel | 26.38" |
| C Axis Spindle Rotation | .001 Degree Contouring |
| Spindle nose/spindle bore/bar capacity | A2-11"/4.4"/4.0" |
| Spindle speed | 3,300 RPM |
| Spindle motor 30 min. / cont. | 40 HP / 30 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 10 HP |

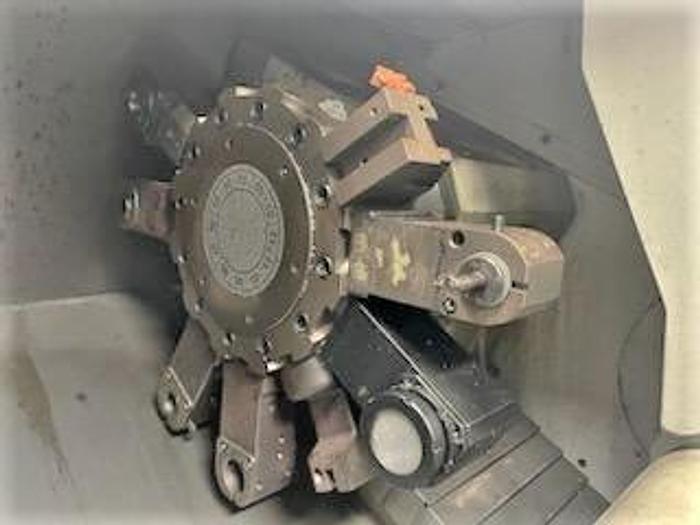

| Turret type | 12 Position Turret |
| Rapid traverse x / z | 1181 / 1299 IPM |

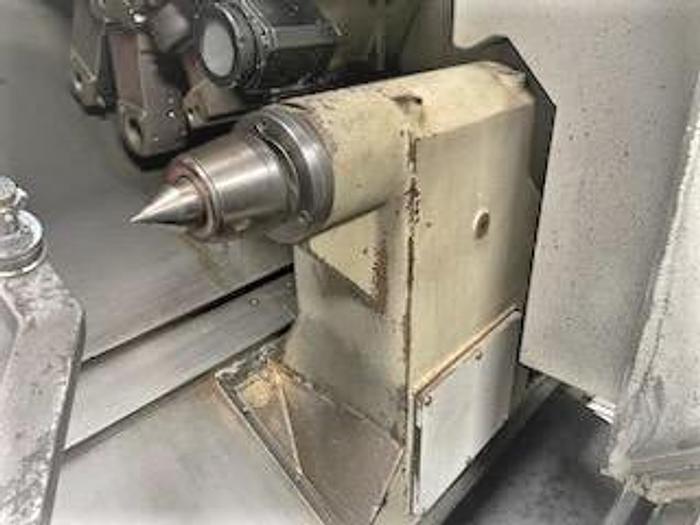

| Tailstock center / travel | MT. No. 5 / 25.5" |
| Machine dimensions lxwxh | 119" x 81" x 79" |
| Machine weight | 15,873 lbs. |
