2015 Haas UMC-750
Sold
2015 Haas UMC-750
Location:Michigan
Description

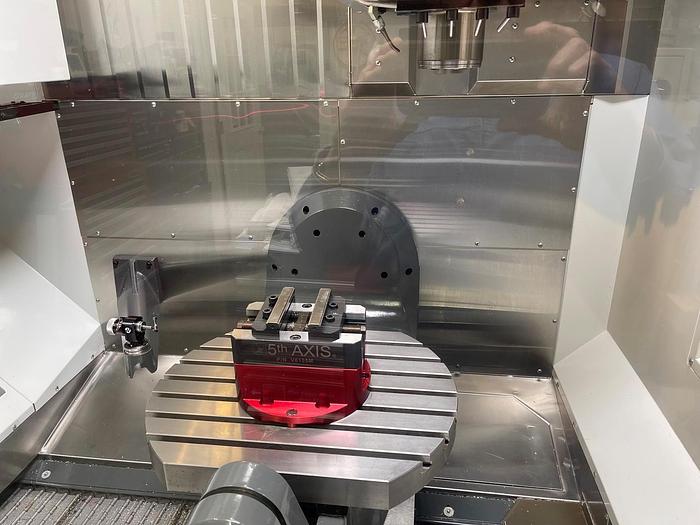

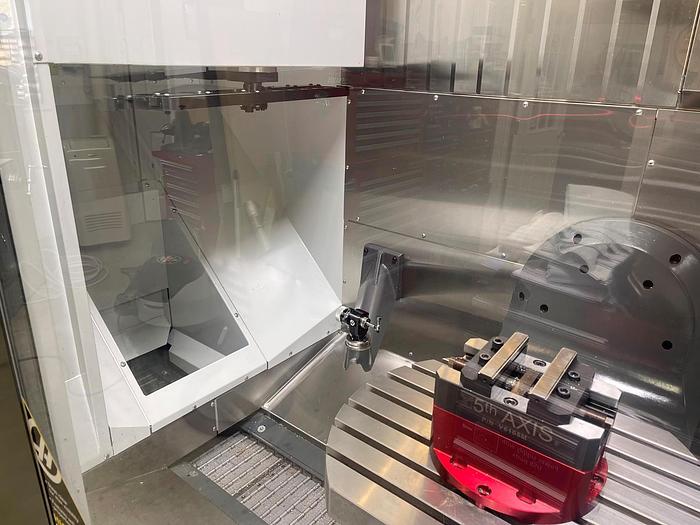

Trunnion Style 5th Axis Table
Coolant Through the Spindle - 300 PSI

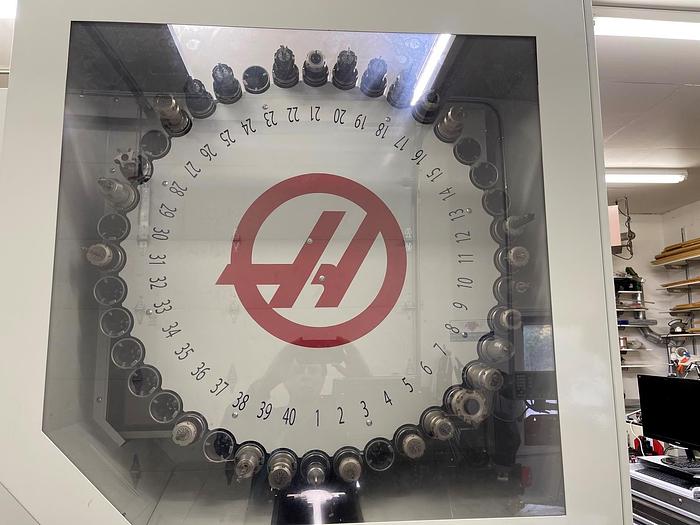

40 Station Side Mounted Tool Changer
Renishaw Probing with Part and Tool Probe (WIPS)
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
Second Home Position
Visual Quick Code Programming
High Speed Machining
Programmable Coolant Nozzle

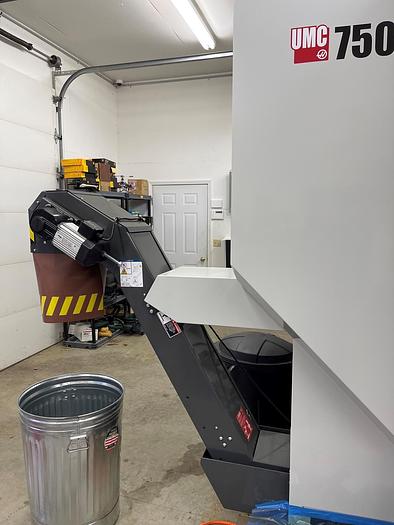

Chip Conveyor - Belt Style

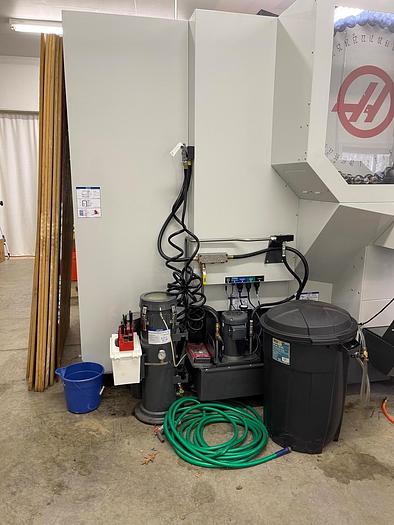

Auxiliary Coolant Filter System
Rigid Tapping

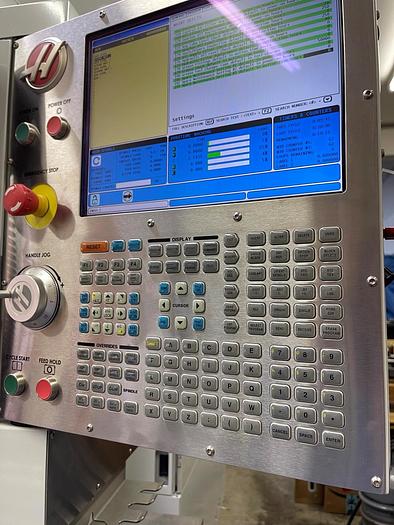

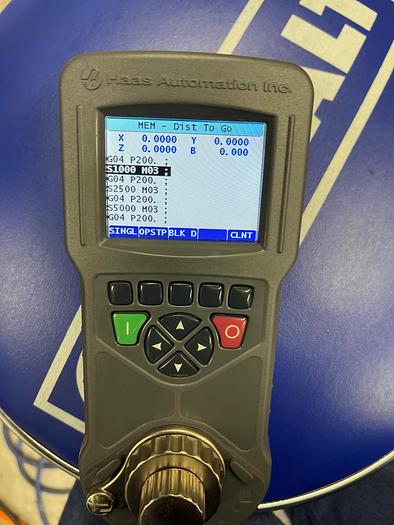

Remote Jog Handle
Early Power Failure Detection Module
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Coolant System with 75 Gallon Tank & Pump
Haas Manuals
**Roughly 300 run time hours**
Specifications
| Manufacturer | Haas |
| Model | UMC-750 |
| Year | 2015 |
| Condition | Used |
| Stock Number | 118861 |
| Table size | 19.7" Diameter |
| Table load capacity | 660 lbs |
| X axis travel | 30" |
| Y axis travel | 20" |
| Z axis travel | 20" |
| B axis rotate of trunnion | -35 Degrees to 110 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 8,100 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Tool magazine | 40 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1200 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 157" x 94" x 101" |
| Machine weight | 19,100 lbs |
