2008 Haas TL-1
Sold
2008 Haas TL-1
$19,500 (USD)
Location:North Carolina
Description

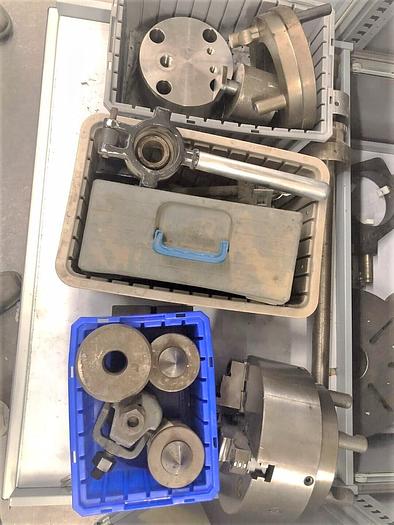

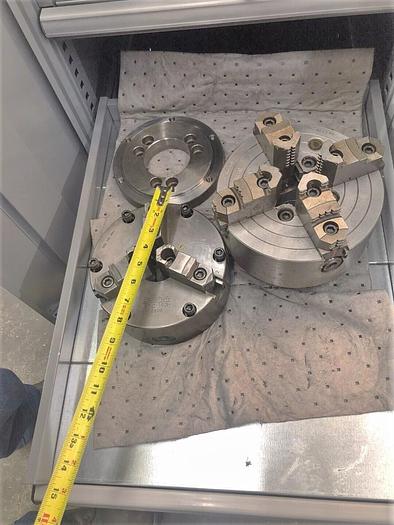

8" 3 Jaw Manual Chuck
10" 4 Jaw Manual Chuck
Collet Closer
Tool Post
Tailstock

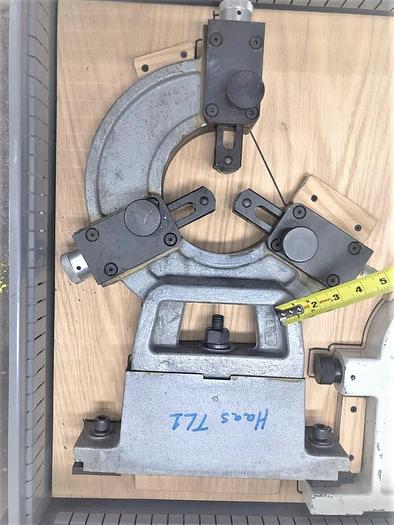

Steady Rest Rigid Tapping Coolant Tank with Pump System Integral Chip-Flow Channel Flip Down Safety Enclosure 1 MB Program Memory Manual Hand Wheels
USB Port Interface RS 232 Port Interface Haas Intuitive Turning System Vector Drive Spindle Single Phase Power at 240V or Three Phase Power at 208V

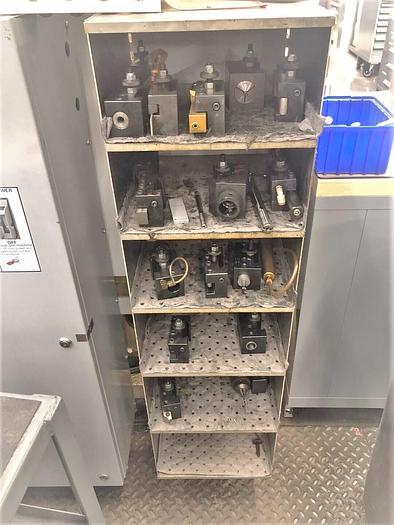

Large Amount of Tool Holders
Miscellaneous Tailstock Centers
Haas Manual
Specifications
| Manufacturer | Haas |
| Model | TL-1 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 118873 |
| Control | Haas CNC Control |
| Chuck Size | 8" & 10" Chucks / Collet Closer |
| Maximum Swing over Bed | 16" |
| Maximum Swing Over Cross Slide | 8.5" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 30" |
| X-axis travel | 8" |
| Z-Axis Travel | 30" |
| Spindle Nose / Spindle Bore | A2-5" / 2.31" |
| Spindle Speeds | 1,800 RPM |
| Spindle Motor | 7.5 HP |
| Number of Turret Positions | Toolpost |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Machine Dimensions | 84" x 55" x 78" |
| Machine Weight | 4,000 lbs. |
