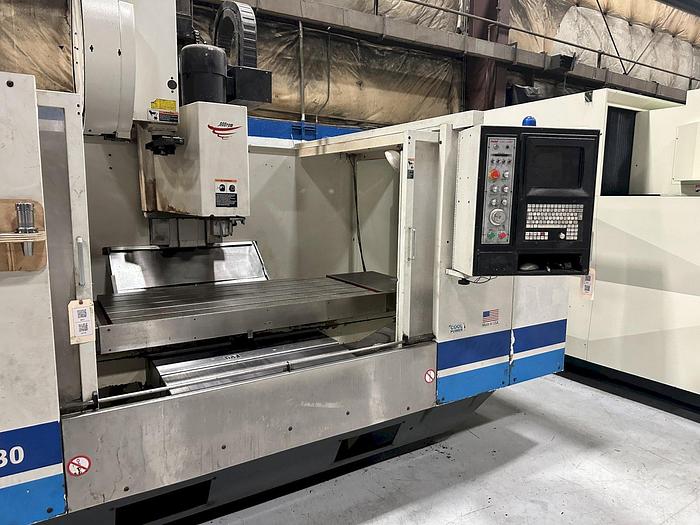

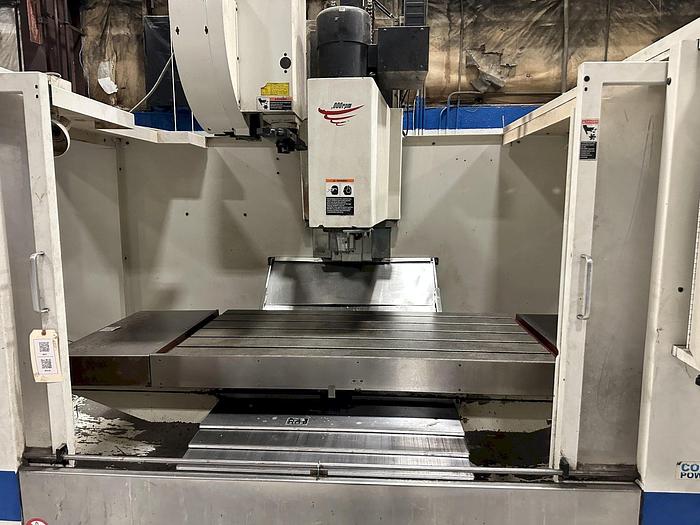

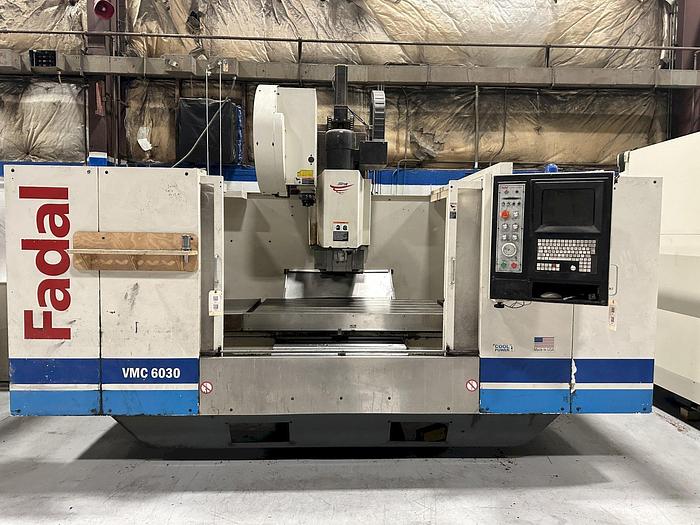

2006 Fadal VMC6030HT
2006 Fadal VMC6030HT
$29,500 (USD)
Location:Michigan
orCall (863) 439-6066
Description

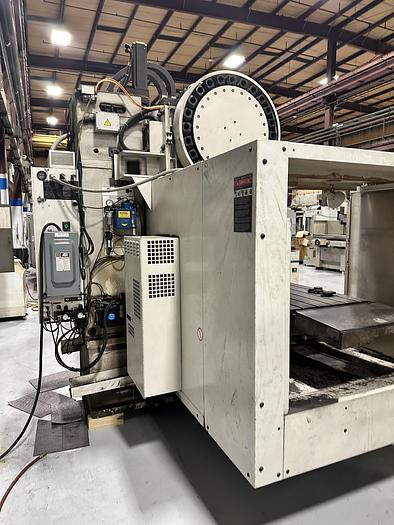

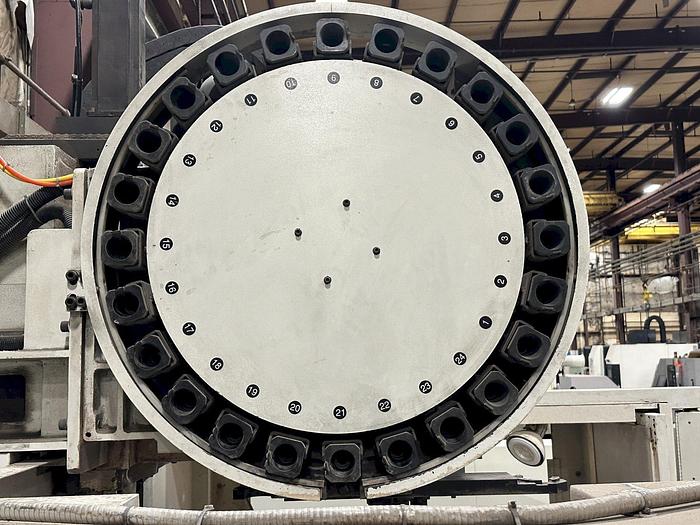

24 Station Side Mount Tool Changer

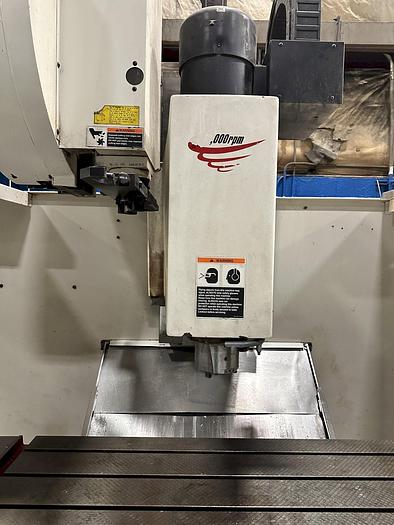

10,000 RPM Spindle
4MB Extended Memory
Rigid Tapping
Boxed Ways
High Torque Spindle Motor 2 Speed Spindle Drive RS 232 Port Interface
Coolant System with Tank & Pump
Wired 230V Electrics
Specifications
| Manufacturer | Fadal |
| Model | VMC6030HT |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118909 |

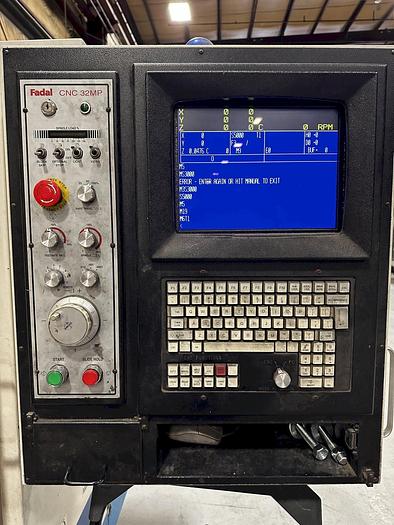

| Control | Fadal MP32 Control |

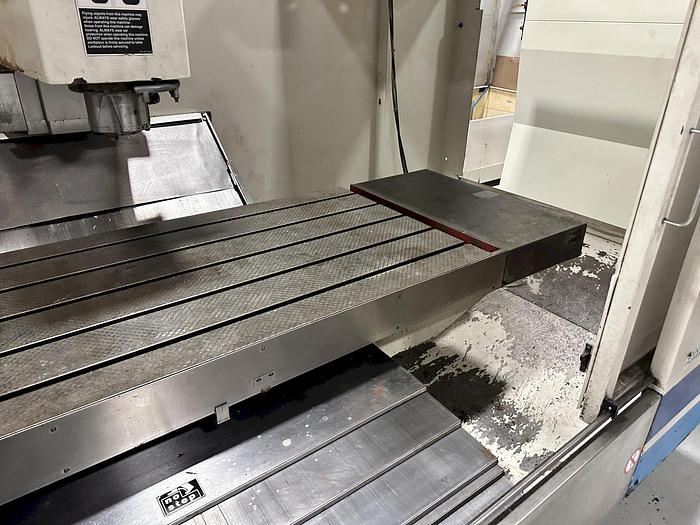

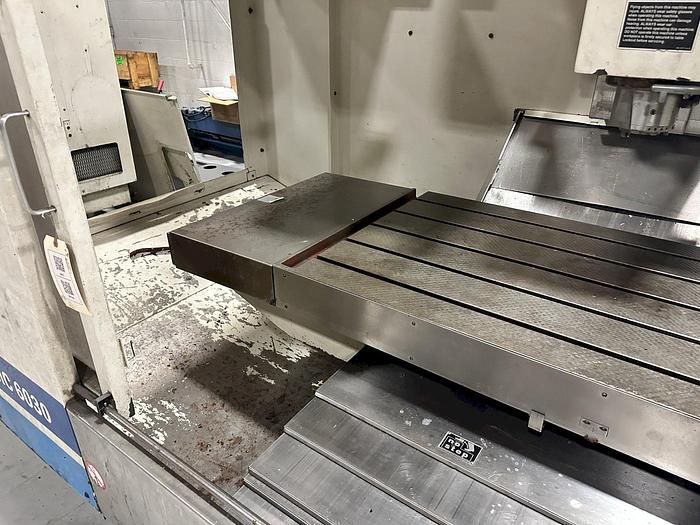

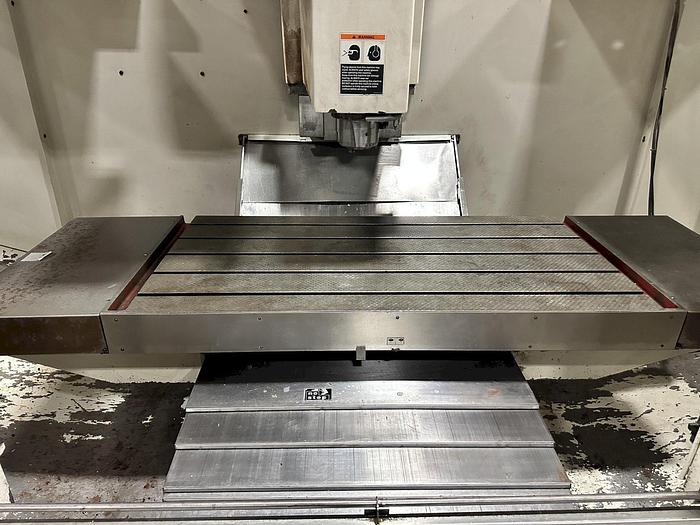

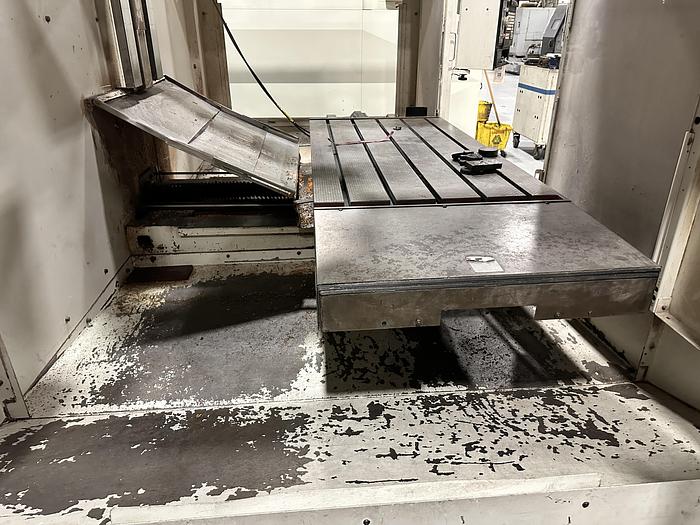

| Table Size | 62" x 30" |
| Maximum Table Load | 4,120 lbs. |
| Distance Spindle Nose to Table Top | 5.5" - 35.5" |
| X-Axis Travel | 60" |
| Y-Axis Travel | 30" |
| Z-Axis Travel | 30" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 10,000 rpm |
| Spindle Motor | 22.5 HP |
| Tool Magazine Capacity | 24 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 4.5" / 15" / 15 lbs |
| Rapid Traverse Rates (X, Y, Z) | 400 IPM |
| Machine Dimensions LxWxH | 159" x 118" x 128" |
| Machine Weight | 17,000 lbs. |
