2013 Sodick TT1 400A High Speed Graphite/Electrode Machining Center
2013 Sodick TT1 400A High Speed Graphite/Electrode Machining Center
Contact us for price
Location:New York, NY
orCall (863) 439-6066
Description
40,000 RPM Spindle Option
HSK E25 Taper Spindle
Part Probing Package
Blum Tool Laser Probe
High Speed Machining
Remote Jog Handle
Linear Motors on all Axis'
Heidenhain Scales on all Axis'

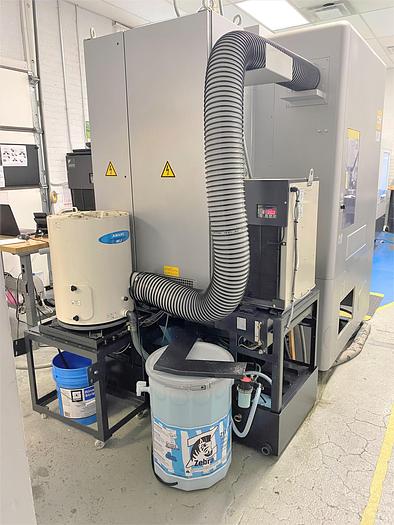

Integrated Torit Dust Collector
Oil Mist System with Mist Collector
Air Purged Dust Protection System

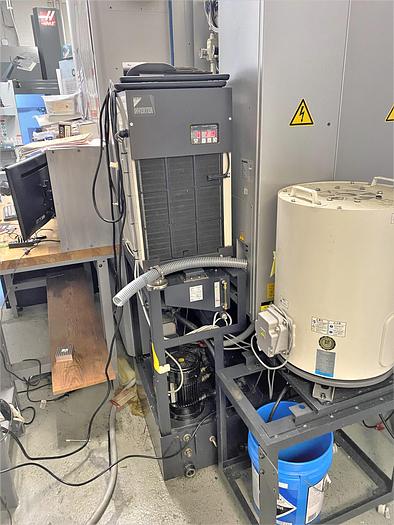

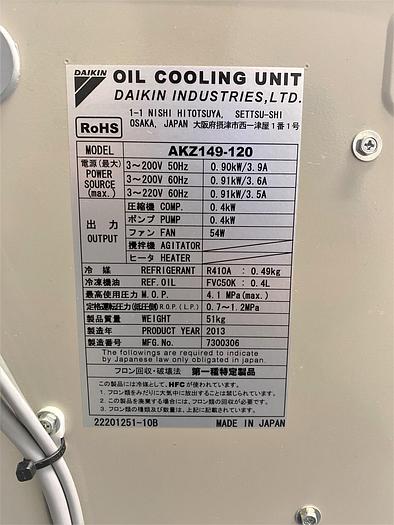

Daikin Spindle Chiller Unit

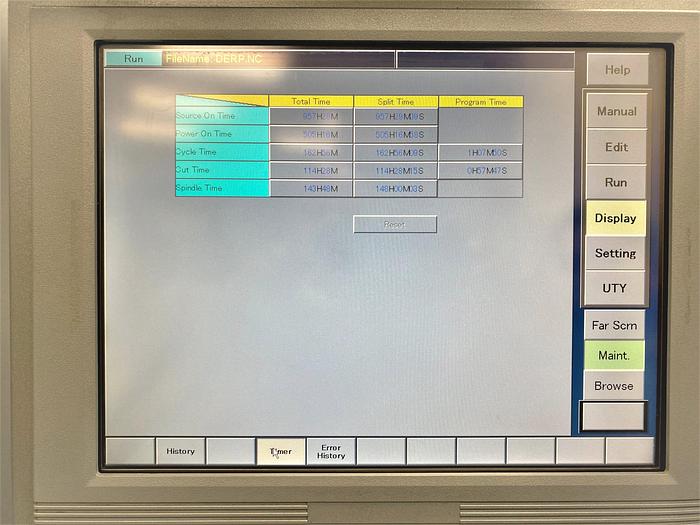

**ONLY 505 Power On Hours**
**ONLY 143 Spindle Hours**
Specifications
| Manufacturer | Sodick |
| Model | TT1 400A |
| Year | 2013 |
| Condition | Used |
| Stock Number | 118938 |

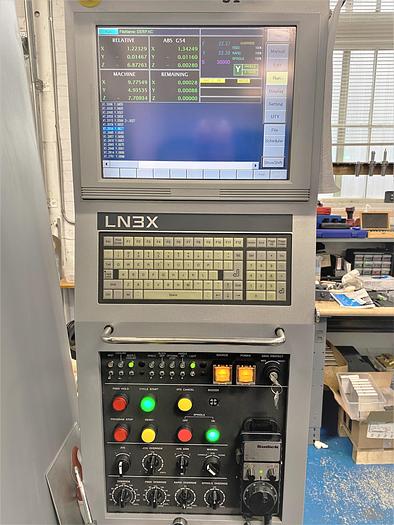

| Control | Sodick LN3X Control |
| Table Size | 16.54" x 10.24" |
| Maximum Table Load | 22.05 lbs |
| X-Axis Travel | 15.75" |
| Y-Axis Travel | 9.84" |
| Z-Axis Travel | 11.81" |
| Spindle Speed | 6,000 - 40,000 RPM |
| Spindle Taper | HSK E25 Taper |
| Spindle Motor | not available |
| Distance Spindle Nose to Table Top | 5.91" -17.72" |
| Tool Magazine Capacity | not available |
| Maximum Tool Diameter | .236" |
| Rapid Traverse Rates | 1440 IPM |
| Machine Dimensions LxWxH | 71" x 105" x 110" |
| Machine Weight | not available |
