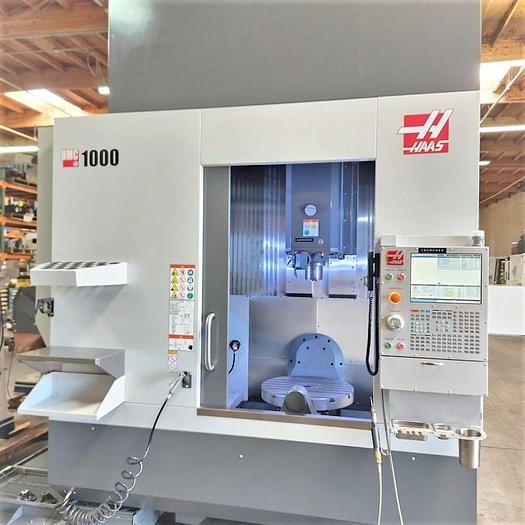

2021 Haas UMC-1000
2021 Haas UMC-1000
$194,500 (USD)
Location:California
Description

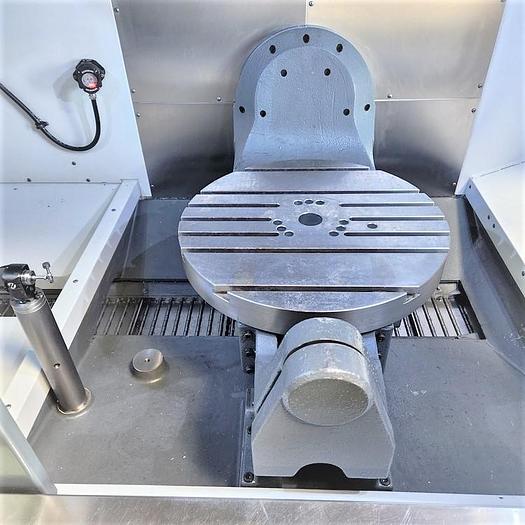

Trunnion Style 5th Axis Table
Coolant Through the Spindle - 1,000 PSI
15,000 RPM Spindle Option
Auxiliary Coolant Filter System
Haas Wireless Probing Package
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System

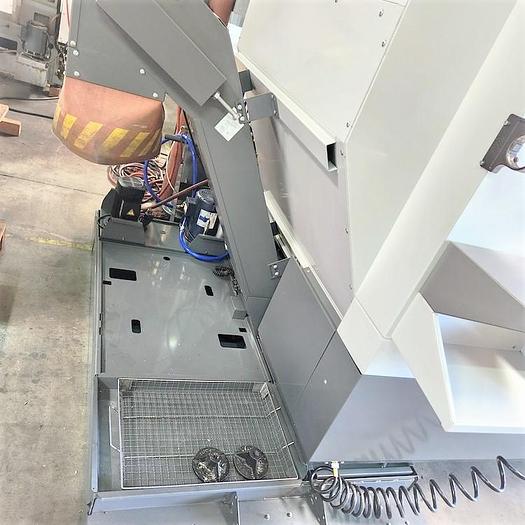

Chip Conveyor
Programmable Coolant Nozzle
30 Station Tool Changer
Rigid Tapping
Enclosure Exhaust System
Remote Jog Handle
High Speed Machining
Tool Air Blast
Coolant System with Tank & Pump & 95 Gallon Coolant Tank
Early Power Failure Detection Module
Ethernet Interface
USB Port Interface
RS 232 Port Interface

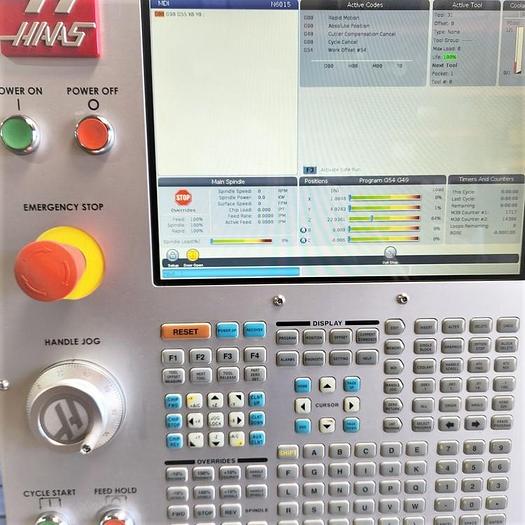

15" Color LCD Monitor w/ Touch Screen Control
Haas Connect
WiFi for Haas Machines
32 GB Expanded Programming Memory
All Available Manuals
Wired 220V Electrics

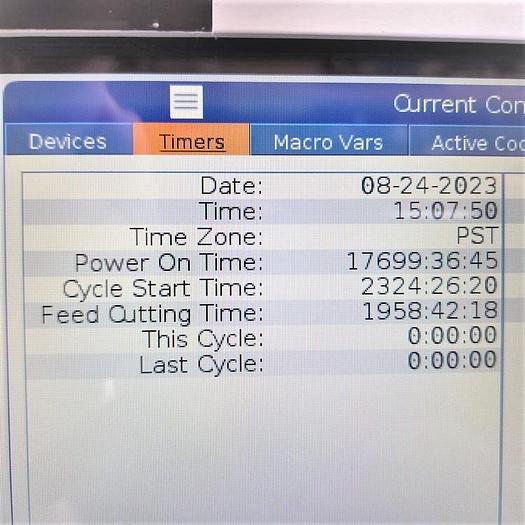

**Approximately 1,958 Feed Cutting Hours of use**
** Price New as Equipped at $ 264,475**
Specifications
| Manufacturer | Haas |
| Model | UMC-1000 |
| Year | 2021 |
| Condition | Used |
| Stock Number | 118940 |
| Table size | 24.8" Diameter |
| Table load capacity | 1,000 lbs |
| X axis travel | 40" |
| Y axis travel | 25" |
| Z axis travel | 25" |
| B axis rotate of trunnion | -35 Degrees to 120 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 Taper |
| Spindle speed | 15,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 29" |
| Tool magazine | 30 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 900 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 168" x 94" x 116" |
| Machine weight | 19,100 lbs |
