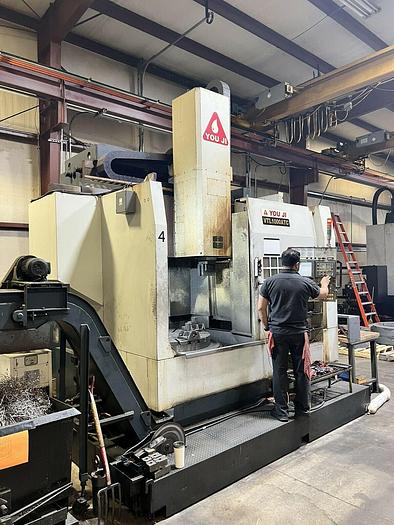

2009 You-Ji VTL 1000ATC
2009 You-Ji VTL 1000ATC
Contact us for price
Location:Oklahoma
orCall (863) 439-6066
Description
39.37" 4 Jaw Hydraulic Independent Chuck
12 Station Tool Changer
Chip Conveyor
Coolant System with Tank & Pump
Work Status Condition Lights
RS 232 Port Interface All Available Manuals
**Rigging is the responsibility of the buyer**
Specifications
| Manufacturer | You-Ji |
| Model | VTL 1000ATC |
| Year | 2009 |
| Condition | Used |
| Stock Number | 118951 |

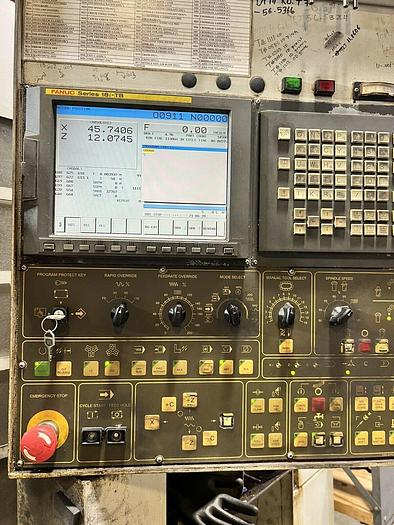

| Control | Fanuc 0i-TD |
| Table Diameter | 39.37" |
| Maximum Swing | 53.14" |
| Maximum Table Load | 8,800 lbs. |
| Maximum Turning Diameter | 43.30" |
| Maximum Turning Height | 35.43" |
| Z-Axis Travel | 31.49" |
| Cross Rail Travel | 20" |
| Table Speed | 1 - 600 RPM |
| Table Motor | 60 HP |
| Spindle Taper | BT50 7/24 |
| Number of Tool Positions | 12 Station Tool Changer |
| Cutting Feedrates | .39 - 78.74" |
| Machine Dimensions LxWxH | 141"x96"x130" |
| Machine Weight | 64,200 lbs. |
