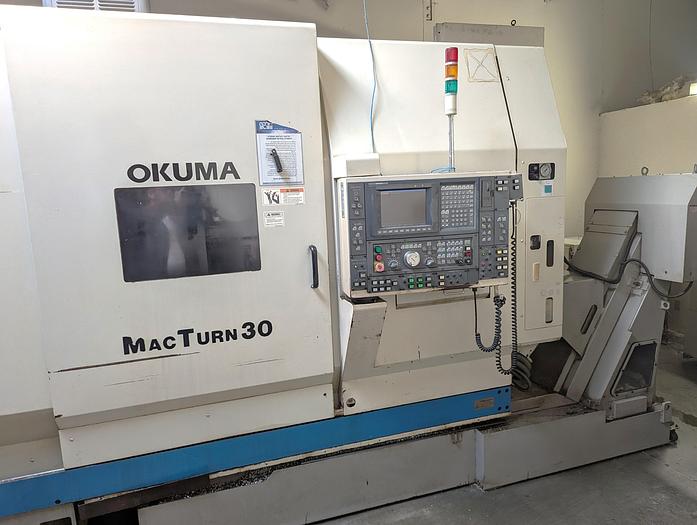

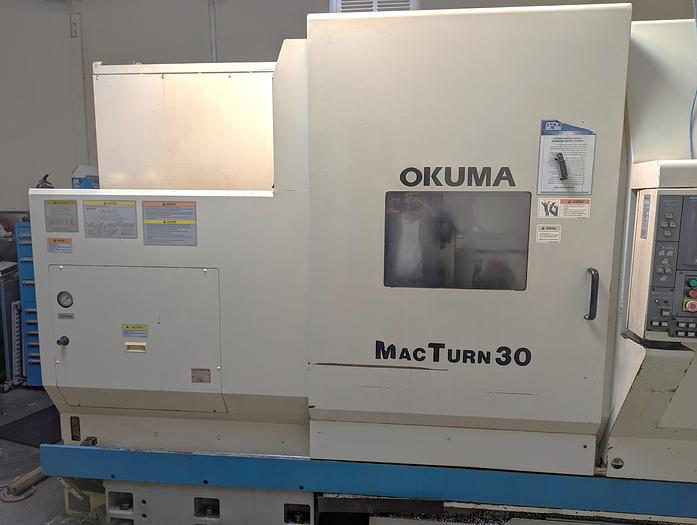

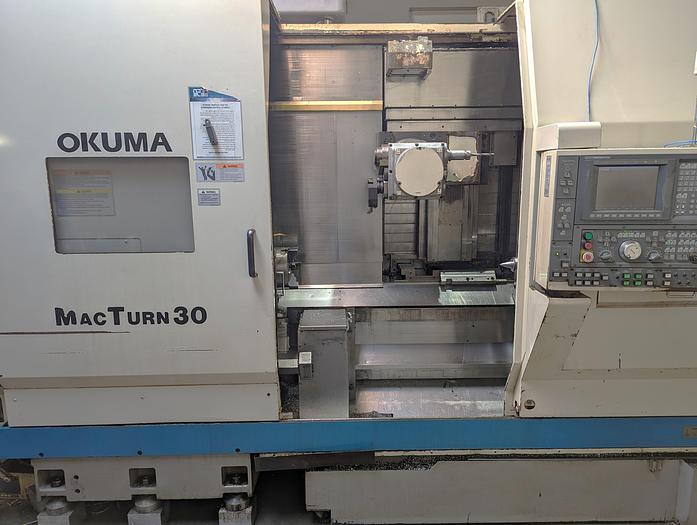

2000 Okuma Macturn 30/1000 Multi Axis Mill Turn Lathe w/ Y Axis

2000 Okuma Macturn 30/1000 Multi Axis Mill Turn Lathe w/ Y Axis

$24,950 (USD)

Location:California

orCall (863) 439-6066

Description

Upper B Axis Turret Full Contouring B-Axis Universal Head - .001 Degree

Y Axis Capability

Full C-Axis Spindle Rotation - .001 Degree

H2 Turret which has one side for mill tools and one side for static tools

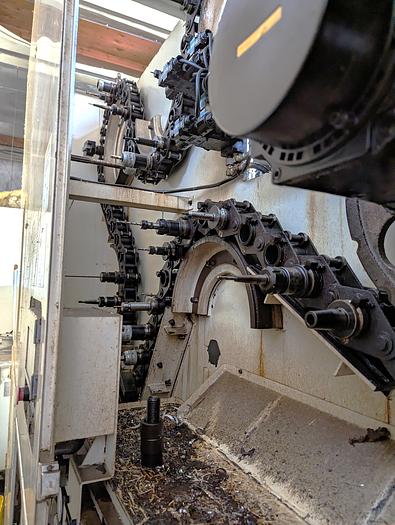

80 Station Automatic Tool Changer

Tailstock - Tow Along Type

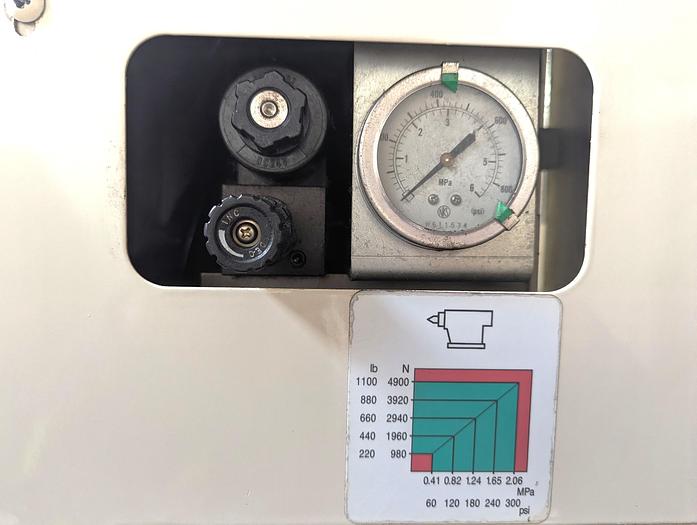

8" 3-Jaw Hydraulic Chuck

Tool Presetter

IGF Conversational Programming

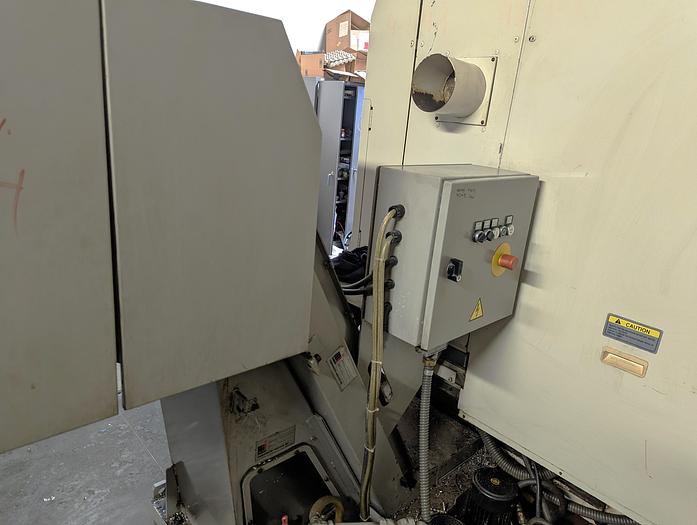

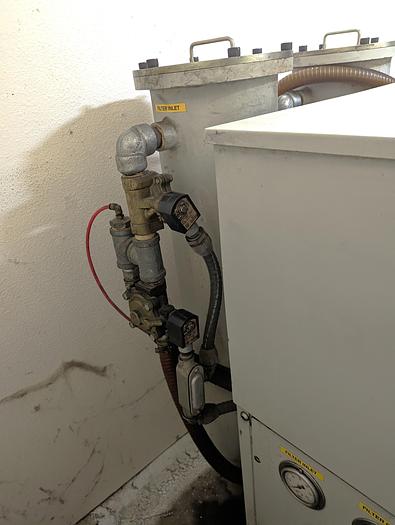

Chip Blaster EV2000 1900 PSI High Pressure Coolant

Coolant Through the Mill Tools

Chip Conveyor - Concept 2000

In Process Gauging - Probing

Synchronous Tapping

BT-40 Spindle Taper

Tool Life Management

Helical Cutting

Oil Chiller

Coolant System with Tank & Pump

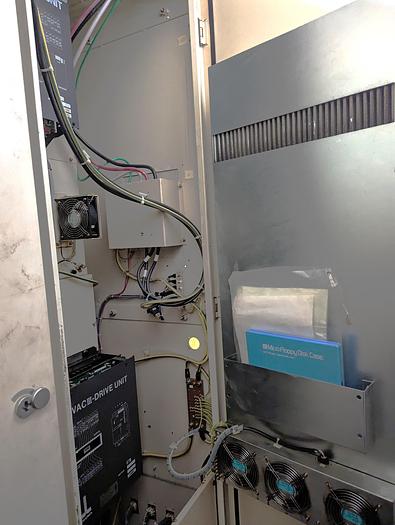

3.5" Floppy Disk Interface

RS-232 Port Interface - Added MOXA Network Interface to RS-232 as seen in photos

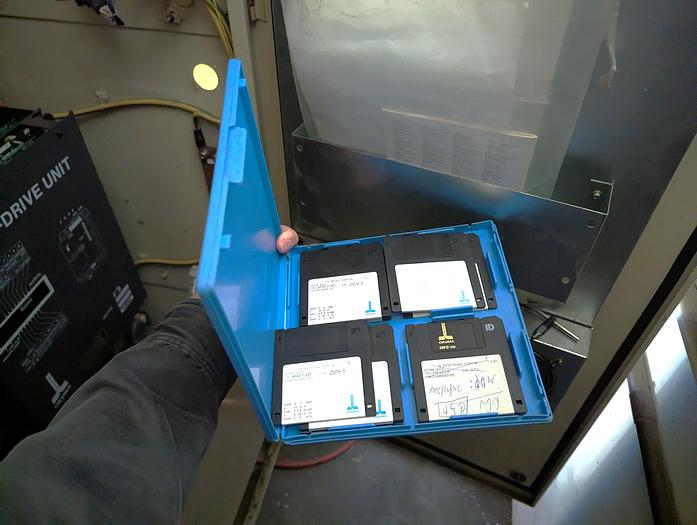

Original Software Disks

All Available Manuals and Tooling (Approximately 50 total holders, 10 of which are for turning)


Show All

Specifications

ManufacturerOkuma
ModelMacturn 30 Multi Axis Mill Turn Lathe
Year2000
ConditionUsed
Stock Number118953

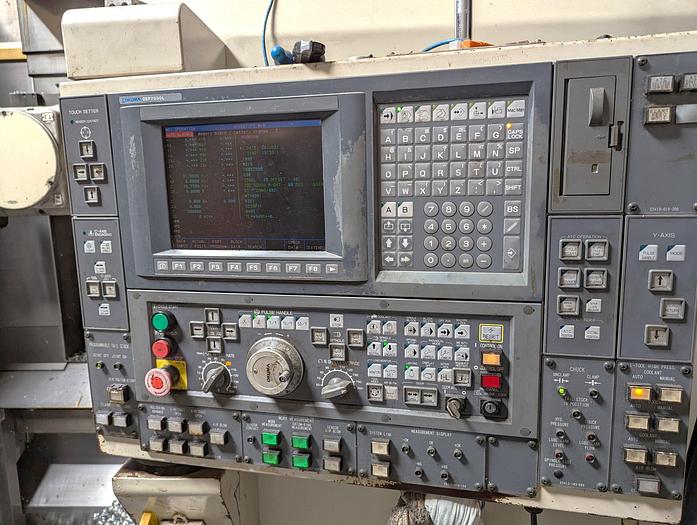

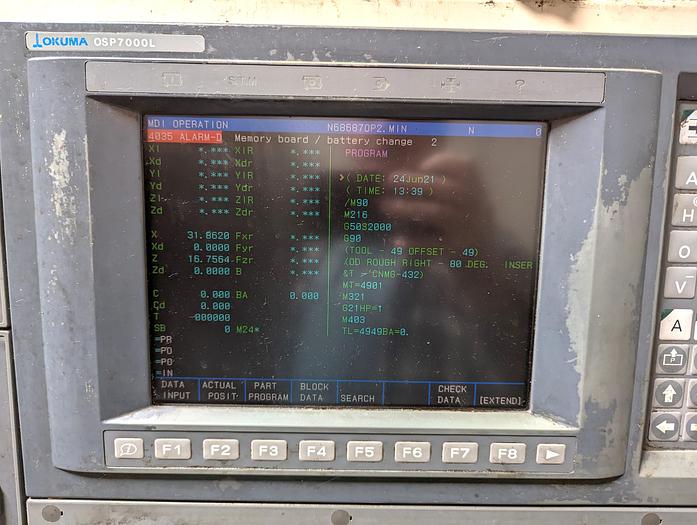

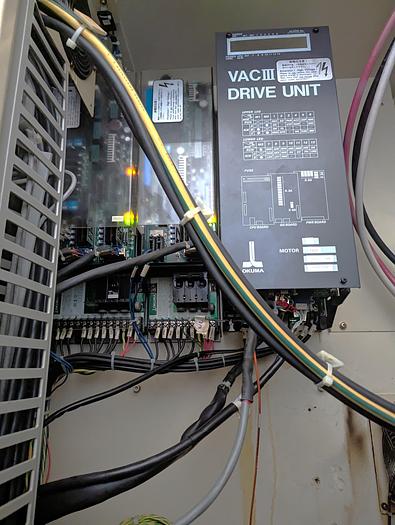

Machine ControlOkuma OSP 7000L w/ IGF Conversational Programming
Chuck Size8" 3-Jaw Hydraulic Chuck
Maximum Swing21.65"
Maximum Turning Diameter19.69"
Maximum Center Distance / Maximum Work Length39.37" / 39.37"
X-axis travel16.93"
Y-Axis Travel7.48" (+/- 3.74")
Z-Axis Travel42.91"
B-Axis Tilt Movement.001 Degree Movement
C Axis Spindle Rotation0.001 Degree Full C Axis
Spindle Nose / Bore / Bar CapacityA2-6" / 2.44" / 2.00"
Main Motor20 HP
Spindle Speed35 - 4,500 RPM - 2 Ranges
Milling Spindle Speed6,000 RPM
Milling Spindle Motor9 HP
Tool Magazine Capacity80 Station Tool Changer
Maximum Tool Diameter / Length / Weight4.33" / 11.81" / 22 lbs
Rapid Traverse Rates X, Y / Z1181 IPM / 1024 IPM / 1575 IPM
Machine Dimensions LxWxH154" x 96" x 91"
Machine Weight23,275 lbs
