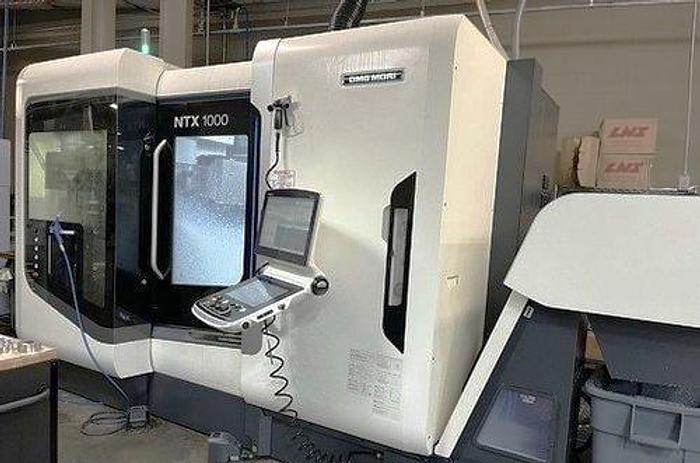

2020 DMG Mori NTX 1000 2nd Generation

2020 DMG Mori NTX 1000 2nd Generation

$369,500 (USD)

Location:Tennessee

Description

5-Axis Simultaneous Capability with Direct Drive Motor in B Axis

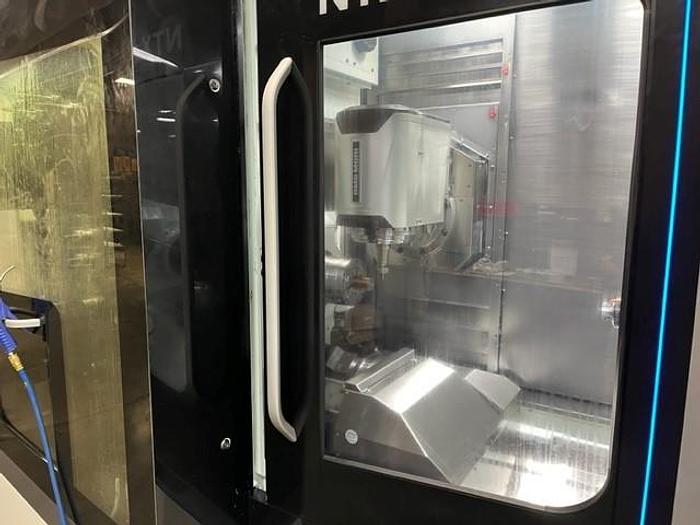

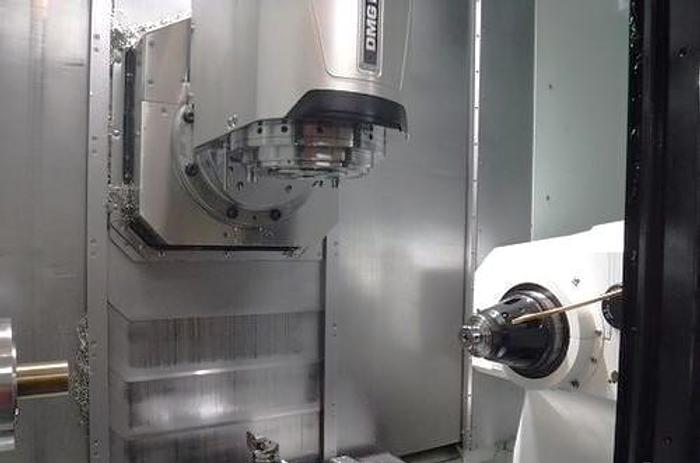

Pendulum Style B-Axis - 240 Degree Movement with Live Milling/Drilling Capability

Y Axis Capability on Upper B Axis Turret Only

Full C Axis Spindle Rotation

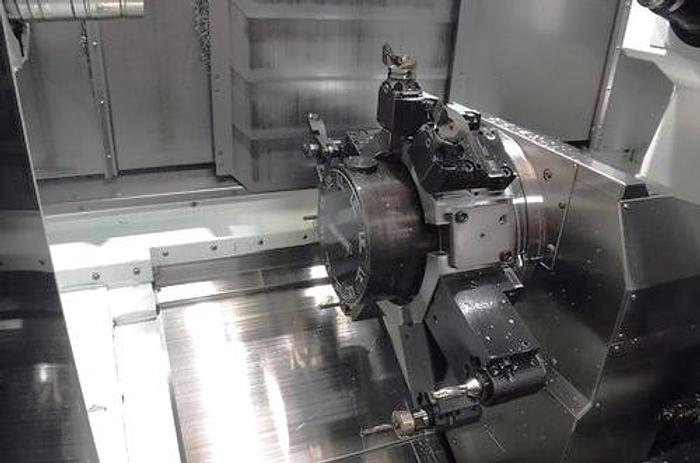

Lower 10 Station Turret with Live Milling/Drilling Capability

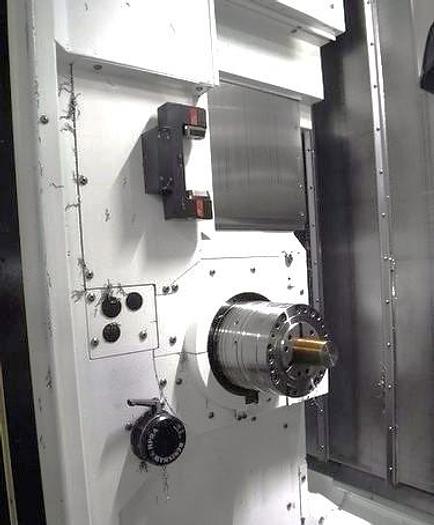

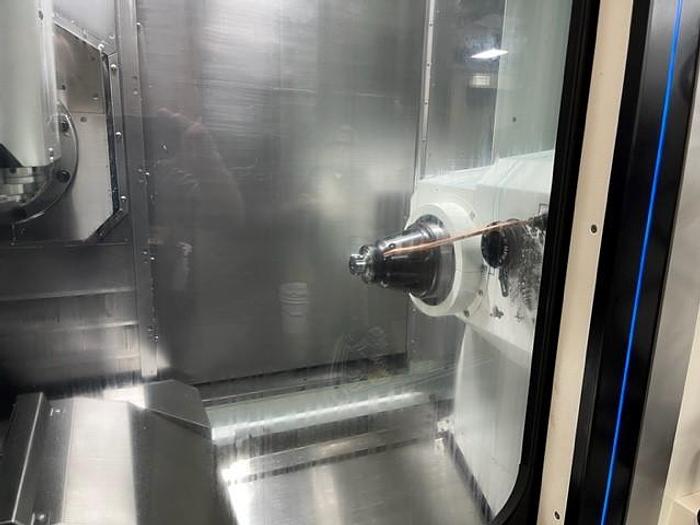

Subspindle

Hainbuch Sanntop 8" 3 Jaw Hydraulic Chuck with Hollow Chuck & Hollow Cylinder for Main Spindle

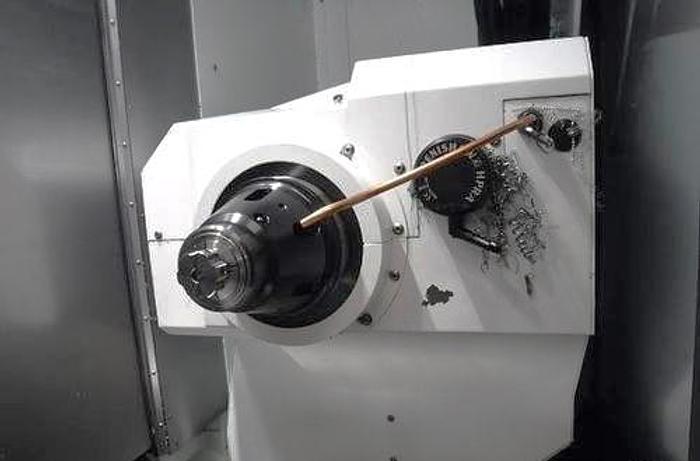

Royal 3J Sub Spindle Collet Chuck

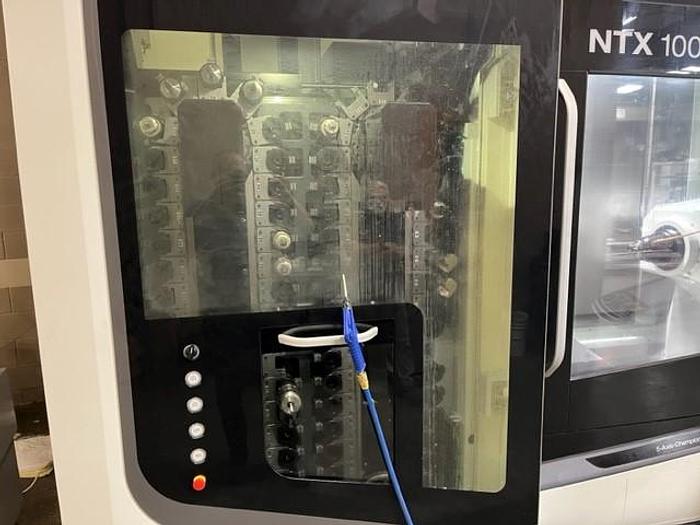

76 Station Tool Changer

High Speed 20,000 RPM Live Milling Capability

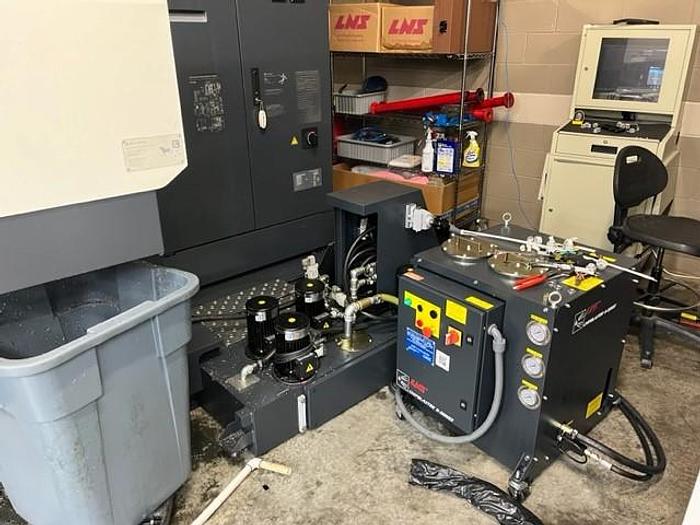

LNS Chip Blaster High-Pressure Coolant

Interface for LNS Barfeed

Interface for Mist Collector

In Machine Work Piece Measuring System Radio Signal Transmission Type Sensor 9 (Renishaw RMP600)

Manual In Machine Blum Laser Tool Setter with Tool Breakage Detection (Contact Type / BLUM Z-Pico) (Removable Type)

LNS MB Series Mist Collector

Chip Conveyor - Right Side

Through the Spindle Coolant

Interface ONLY for Super-High Pressure Coolant System

Coolant Gun

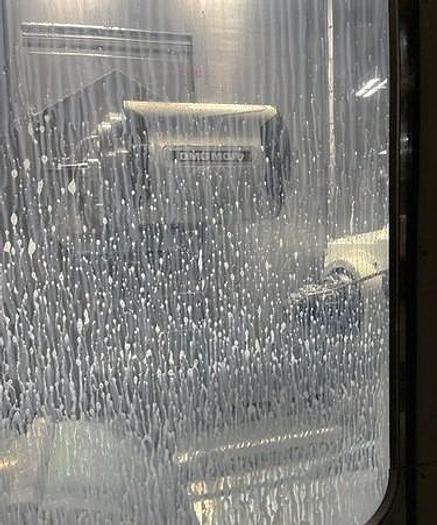

Rotating Clear-View Window

Air Blow for Tool Tip

Air Blow for Chuck

Signal Lamp

Addition of Optional Block Skip

Island, Open Pockets

High Speed Canned Cycle

Manual Pulse Generator

Alternating Speed

3D Quick Set

Addition of Optional Block Skip

X Axis Direction JIS/ISO Standard

Multi Dry Filter

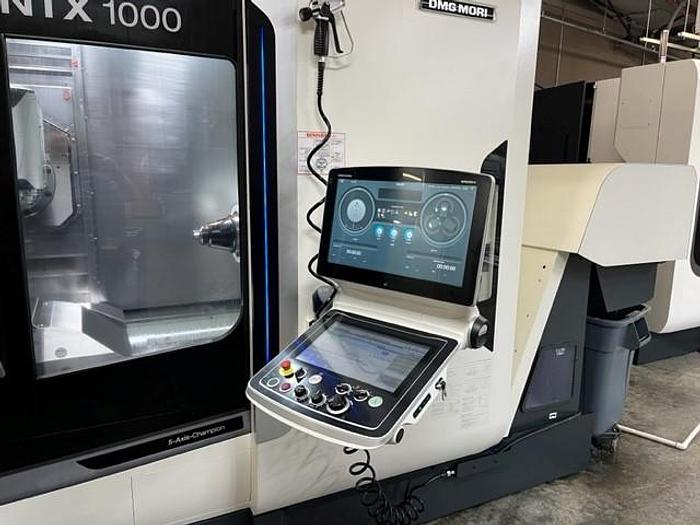

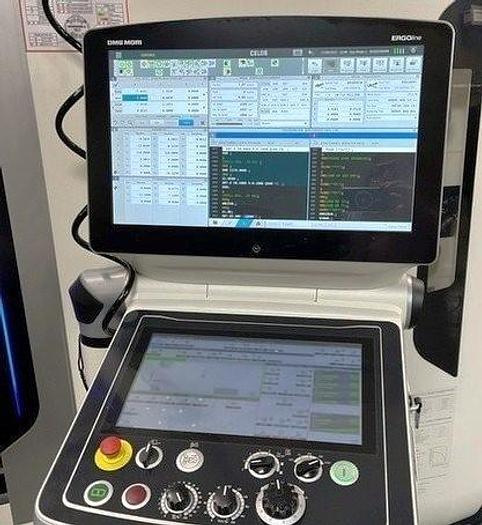

ERGOline Touch Control

(10) External M-Codes

4 Color Machine Signal Lamp

Thoroughly Controlled Thermal Displacement

Full-Closed Loop Control for X-Axis (Tool Spindle)

Full-Closed Loop Control for X-Axis (Lower Turret)

Chuck Foot Switch (Double) for Main & Counter Spindle

Wired 220V Electrics


**Power On Hours 18,915**

**Run Time Hours 4,616**

**Spindle Hours 1,900**


**Price New As Equipped at $573,025**

Specifications

ManufacturerDMG Mori
ModelNTX 1000 2nd Generation
Year2020
ConditionUsed
Stock Number118977
Machine ControlFanuc 31iB5 with Celos Control
Chuck Sizes Main / Subspindle8" Chuck / both 3J Collet and 6" Chuck for Sub Spindle
Maximum Swing26.77"
Maximum Turning Diameter16.93"
Maximum Cutting Length31.5"
Maximum Distance Between Centers41.3"
X1-Axis Travel17.9"
X2-Axis Travel10.7"
Y-Axis Travel8.3"
Z1-Axis Travel31.5"
Z2-Axis Travelnot available
B-Axis Tilt Movement240 Degrees
C-Axis Rotation.001 Degree
Spindle Nose / Spindle Bore / Bar CapacityA2-6" / 2.87" / 2.56"
Main Spindle Speed5,000 RPM
Spindle Motor - Main Spindle29.5 HP
Subspindle Speed6,000 RPM
Subspindle Motor15 HP
Milling Spindle Speed / Milling Spindle Motor20,000 RPM / 12 HP
Number of Tool Positions76 Station Tool Changer
Spindle TaperCAPTO C5
Lower Turret Positions10 Position Turret
Live Milling Speed - Lower Turret / Horsepower10,000 RPM / 2 HP
Machine Dimensions LxWxH164"x100.1"x100.1"
Machine Weight25,353 lbs
