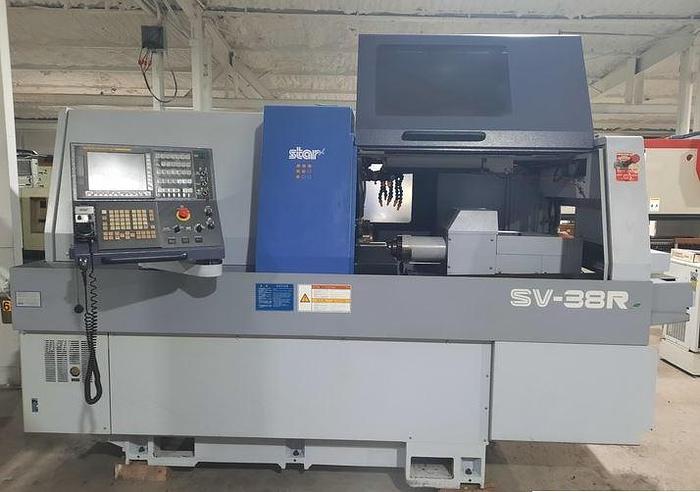

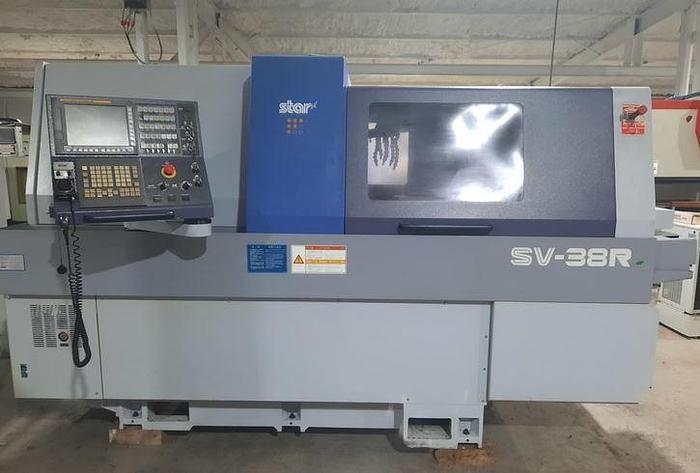

2015 Star SV-38R
No longer available
2015 Star SV-38R
Location:Florida
Description
10.4" Color LCD Display

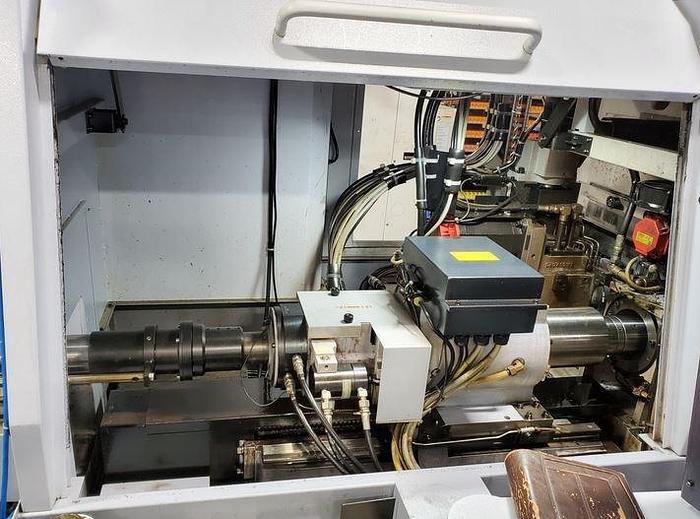

Sub Spindle

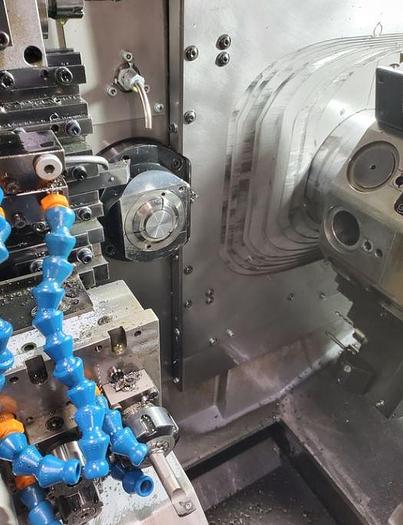

8-Spindle Unit w/ Y-Axis Control for Backworking

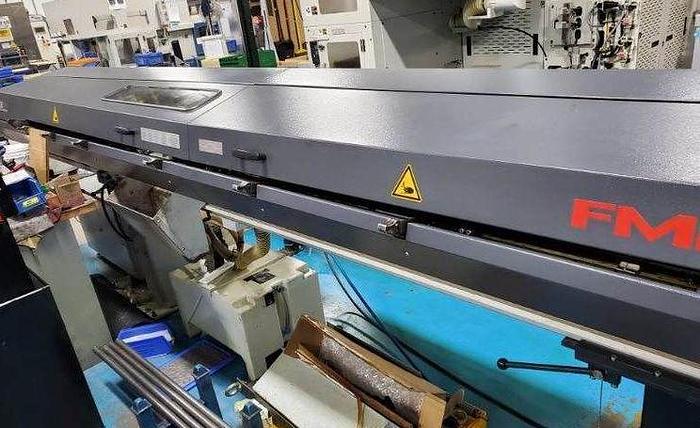

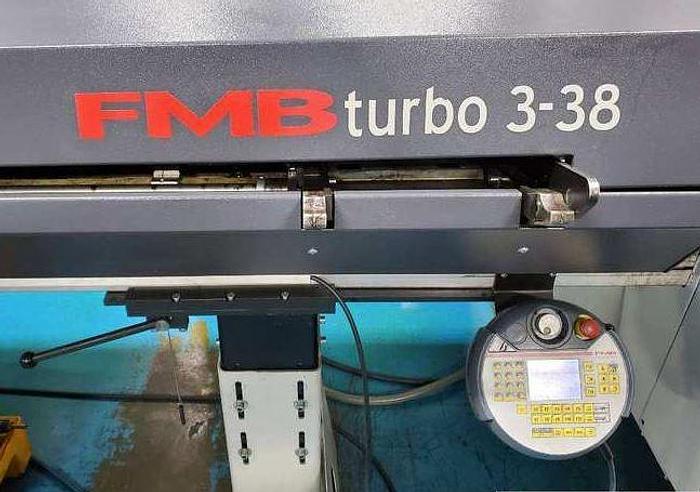

FMB 3-38 Turbo Barfeed
Broken Cutoff Tool Detector
Drive Unit for Revolving Guide Bushing
C-Axis Control for Main & Subspindle
Parts Conveyor
Remote Jog Handle

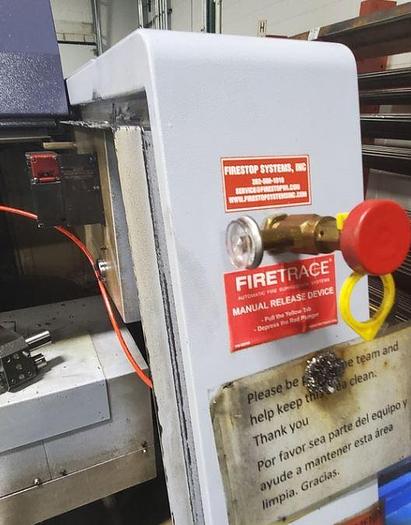

Firetrace System

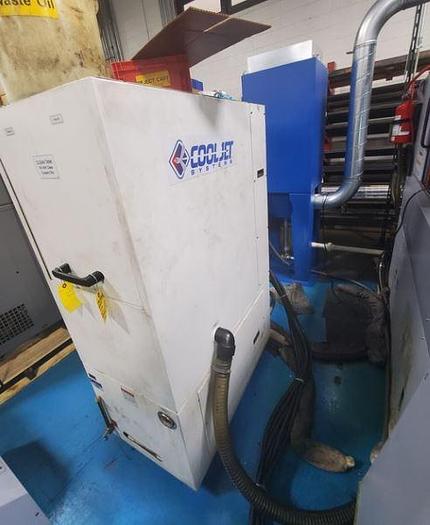

CoolJet System
(2) OD Turning Holders (Double Holders in Y)
(1) ID Z-Axis Live Tool (Double Holder in X)
(1) ID Boring Bar Holder (Triple ID Holder)
(1) Static Tool Holder in Z Backworking
(2) Live Tool Holders in Z Backworking

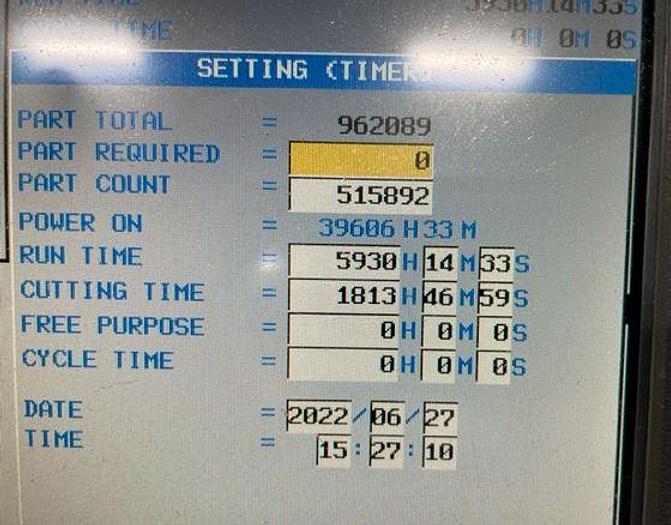

**Low Hours**
Specifications
Manufacturer | Star |
Model | SV-38R |
Year | 2015 |
Condition | Used |
Stock Number | 118992 |
Machine Control | Fanuc 31i |
Maximum Bar Capacity | 1.5" |
Maximum Headstock Stroke | 13.78" |
Spindle Speed | 7,000 RPM |
Spindle Motor | 15 HP / 10 HP |
Subspindle Speed | 7,000 RPM |
Subspindle Motor | 10 HP / 7.5 HP |
Number of Tool Positions | Gang Style |
Number of Turret Positions | 10 |
Maximum Drilling Capacity | .91" |
Maximum Tapping Capacity | M16xP2.0 |
Machine Dimensions LxWxH | 108"x52"x84" |
Machine Weight | 9,400 lbs |
