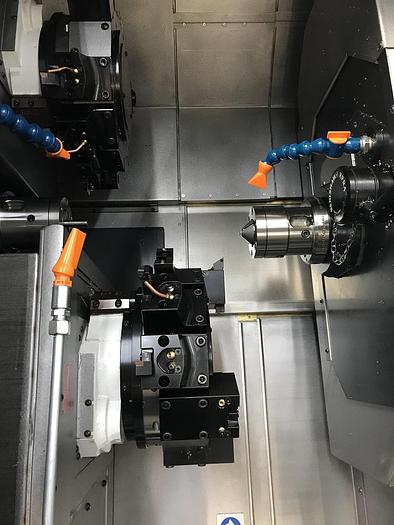

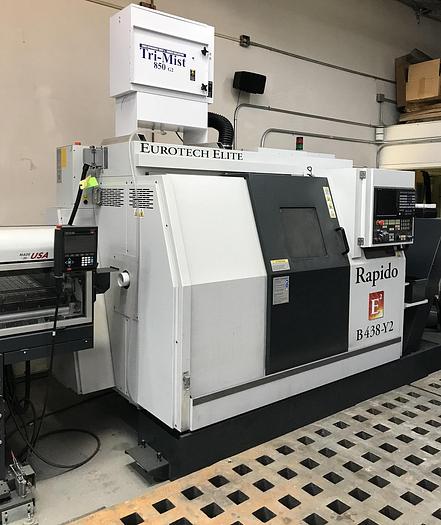

2021 Eurotech Rapido B438-SY2

No longer available
2021 Eurotech Rapido B438-SY2
Location:California
Description
Programmable Parts Catcher w/Parts Exit Conveyor
Scale Feedback
Rigid Tapping
Clear Shift Subspindle Option & Polygon Turning
Subspindle Ejector & Coolant Thru the Spindle Clean Out
Automatic Dual Tool Presetter
Chip Conveyor
Tri-MIst Collector
1,000 PSI High Pressure Coolant System
LNS Quick Load Servo S3 Magazine Loader
(3) X-Axis Live Tools
(3) Y-Axis Live Tools
Specifications
Manufacturer | Eurotech |
Model | Rapido B438-SY2 |
Year | 2021 |
Condition | Used |
Stock Number | 119005 |
Machine Control | Mitsubishi M730 VS-L |
Chuck Sizes Main / Subspindle | 4.53" / 4.53" |
C-Axis Rotation | .001 Degrees Both Spindles |
Maximum Swing | 5.51" |
Maximum Turning Diameter | 3.94" |
Maximum Bar Capacity | 1.5" |
Distance Between Spindles | 11.5" |
Main & Subspindle Speeds | 7,000 RPM |
Spindle Motor | Both 15 hp |
Number of Turrets | 2 |
Number of Turret Positions | 12 Each all Live |
Rotary Tool Speed / Rotary Motor | 6,000 rpm / 6 hp |
Machine Weight | 10,362 lbs |
