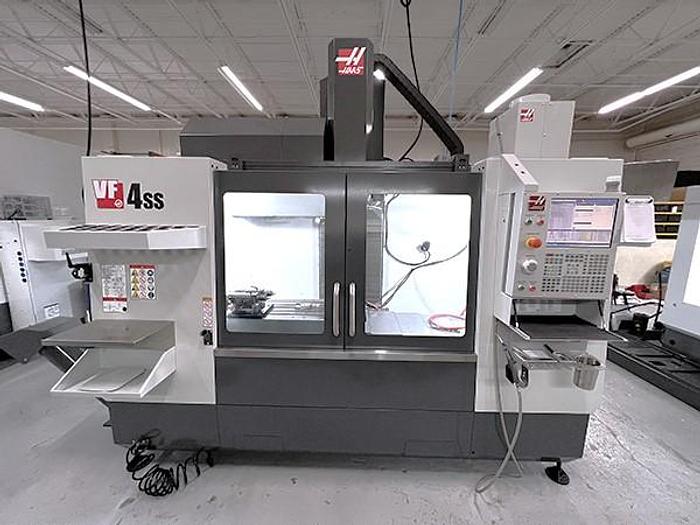

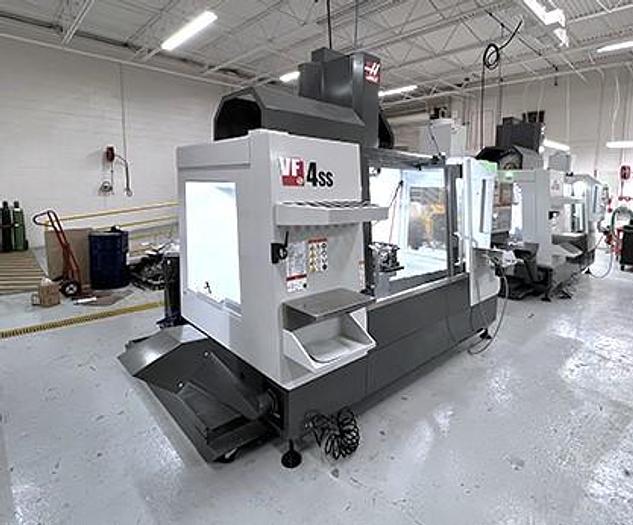

2021 Haas VF4SS
2021 Haas VF4SS
$99,500 (USD)
Location:Texas
Description
30+1 Position Side Mounted Tool Changer
Haas Wireless Intuitive Probing Package - Renishaw, (spindle mounted probe needs stylus replaced)
High Pressure Coolant Through the Spindle - 1000 PSI
4th Axis Drive & Wiring
Auger Style Chip Conveyor
High Speed Machining
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System
Programmable Coolant Nozzle
Auxiliary Coolant Filter System
Second Home Position
Enclosure Exhaust System
95 Gallon Coolant Tank
Coolant Tank Oil Skimmer System
Rigid Tapping
Coolant Tank with Pump
Variable Flow Coolant Pump

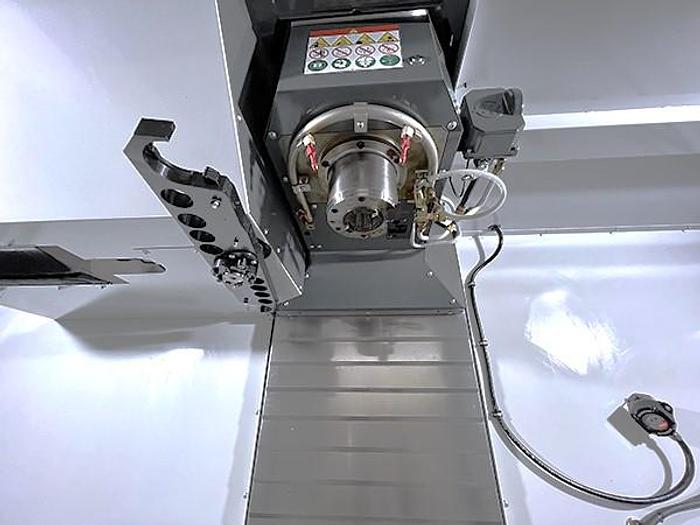

Inline Direct Drive 12,000 RPM Spindle
WiFi Connection
USB Port Interface
RS 232C Port Interface for DNC Operation

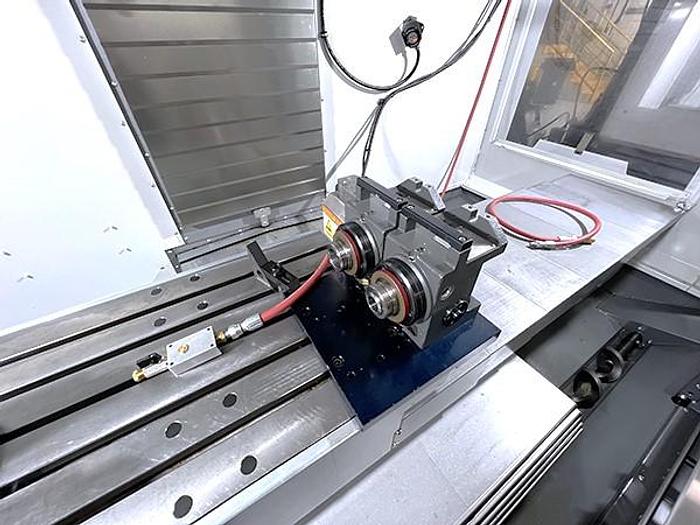

**PRICE DOES NOT INCLUDE THE HAAS HA5C-2 INDEXER UNIT IN PHOTOS**

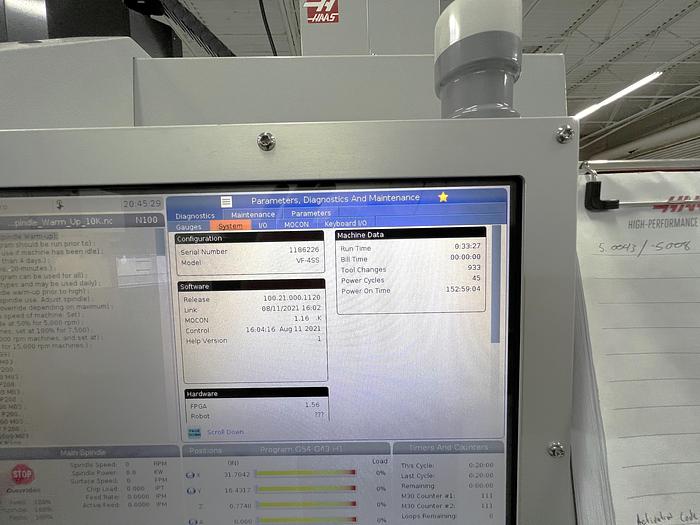

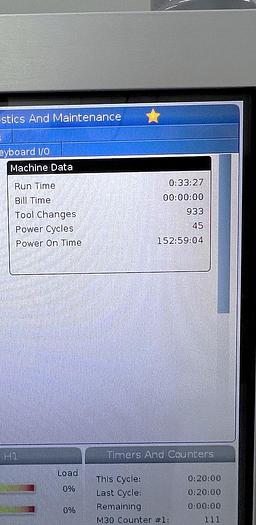

**Run Time Hours ONLY 33.27 hours**
**NEAR NEW, NEVER PUT INTO PRODUCTION**
**Manufactured New in October of 2021, installed in January of 2022**
**Price New as equipped today at $125,000**
Specifications
| Manufacturer | Haas |
| Model | VF4SS |
| Year | 2021 |
| Condition | Used |
| Stock Number | 119013 |
| Table size | 52" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 50" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 30 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 152" x 99" x 106" |
| Machine weight (approximately) | 13,800 lbs. |
