2011 Haas EC-400 6-Pallet Pool

2011 Haas EC-400 6-Pallet Pool

Contact us for price

Location:Wisconsin

orCall (863) 439-6066

Description

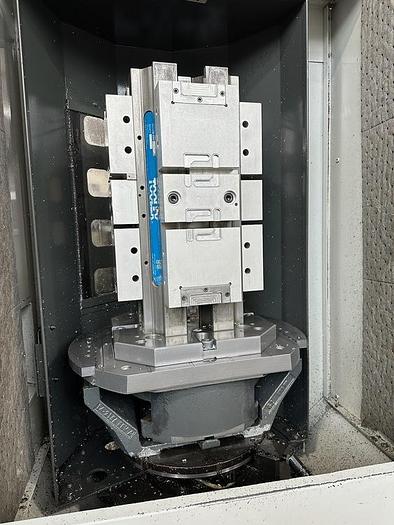

6 Pallet Pool Configuration with 6 Drilled and Tapped Pallets

64 Bit CNC Control w/15" LCD Screen

Inline Spindle

Full 4th Axis Rotary Table

70 Station Tool Changer

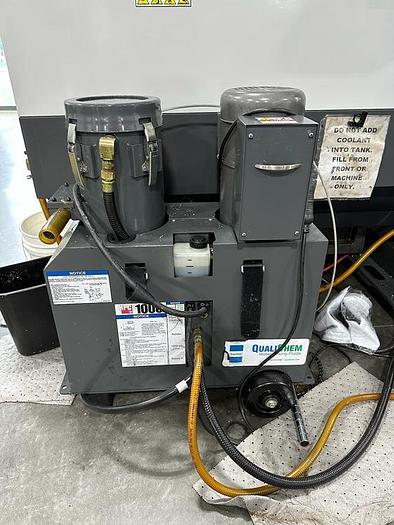

Coolant Thru the Spindle - 1000 PSI

Programmable Coolant

Color Remote Jog Handheld RPG

Through the Tool Air Blast

WIPS Wireless Intuitive Probing Package

Spindle Orientation

User Definable Macros

Coordinate Rotation & Scaling

Rigid Tapping

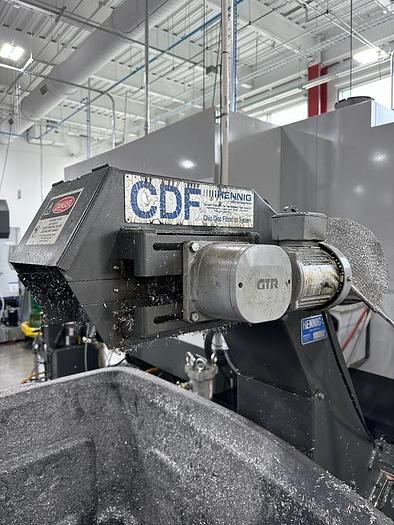

Chip Conveyor for Aluminum

Some Fixtures

All Available Manuals


Show All

Specifications

ManufacturerHaas
ModelEC-400 6-Pallet Pool
Year2011
ConditionUsed
Stock Number119022
Machine ControlHaas 64-Bit
Table Size / Number of Pallets15.75" x 15.75" / 6 Pallet Changer
Maximum Table Load880 lbs
Pallet Indexing.001 Degrees Full 4th
X-Axis Travel22"
Y-Axis Travel25"
Z-Axis Travel22"
Spindle Speed12,000 RPM
Spindle TaperCAT 40
Spindle Motor30 HP Vector Direct Drive
Tool Magazine Capacity70 Station Tool Changer
Maximum Tool Diameter / Length / Weight5" / 12" / 12 lbs
Rapid Traverse Rates1,400 IPM
Cutting Feedrates833 IPM
Machine Dimensions LxWxH202" x 102" x 113"
Pallet Pool Dimensions127" x 91" x 85"
Machine Weight31,200 lbs all together
