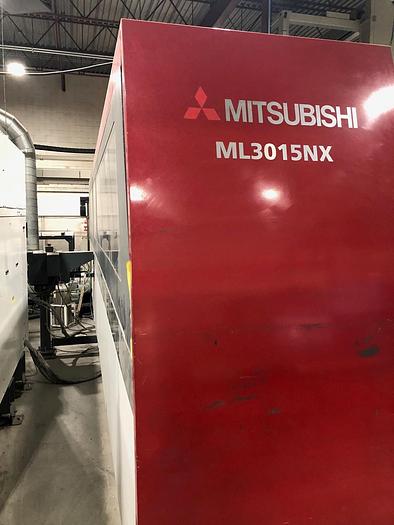

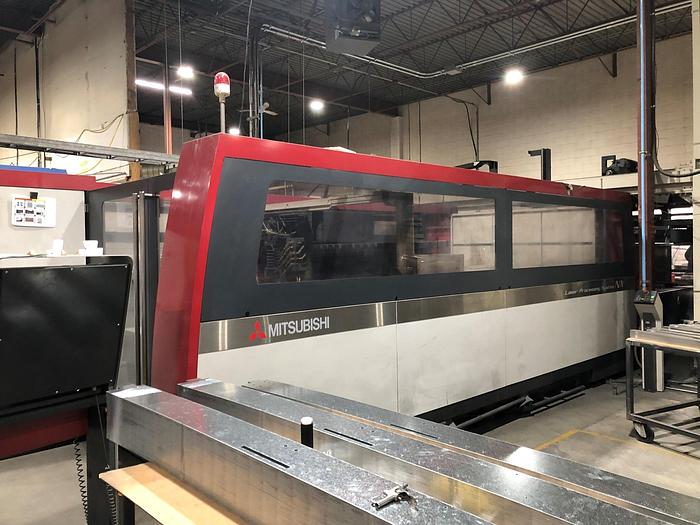

2008 Mitsubishi ML3015NX-40 Laser
2008 Mitsubishi ML3015NX-40 Laser
Contact us for price
Location:British Columbia, Canada
orCall (863) 439-6066
Description

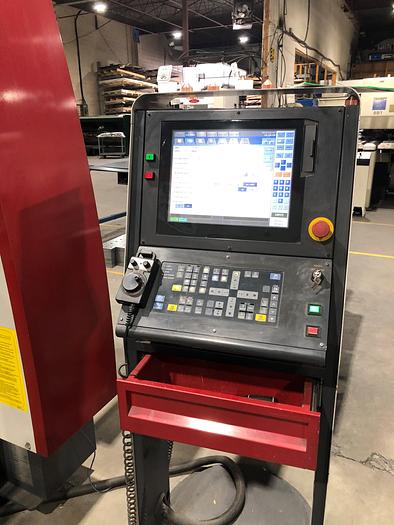

M700 Touch Screen w/NANO Technology & Windows XP Operating System
4,000 Watt Diamond Path Technology
CO2 Type Laser System

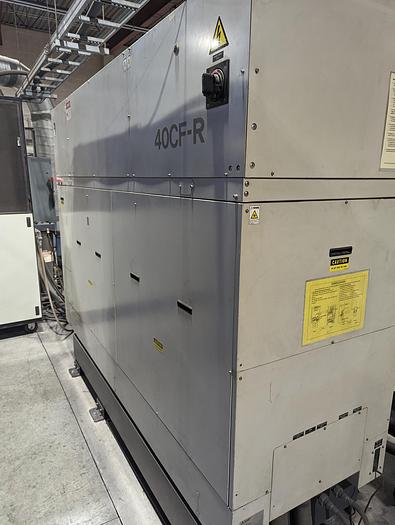

40CF-R Unique Resonator
X-Y Precision Rack & Pinion
Z Precision Linear Drive
Remote Jog Handle
Specifications
| Manufacturer | Mitsubishi |
| Model | ML3015NX-40 Laser |
| Year | 2008 |
| Condition | Used |
| Stock Number | 119028 |
| Machine Control | M700 Touch Screen |
| Table Size / Number of Pallets | 120"x60" / 2 |
| Maximum Table Load | 2,050 lbs |
| X-Axis Travel | 125.9" |
| Y-Axis Travel | 62.9" |
| Z-Axis Travel | 4.7" |
| Table Pass Height | 34.6" |
| Rapid Traverse Rates X / Z | 4,724 IPM / 4,724 IPM Single Axis |
| Rapid Traverse Rates X / Z Simultaneous | 6,680 IPM / 6,680 IPM |
| Maximum feed rates | 2,360 IPM |
| Machine Dimensions LxWxH | 440.4"x94.5"x |
| Installation Dimensions | 491"x347" |
| Machine Weight | 33,070 lbs |
