2013 DMG Mori NHX-5000
No longer available
2013 DMG Mori NHX-5000
$105,000 (USD)
Location:California
Description

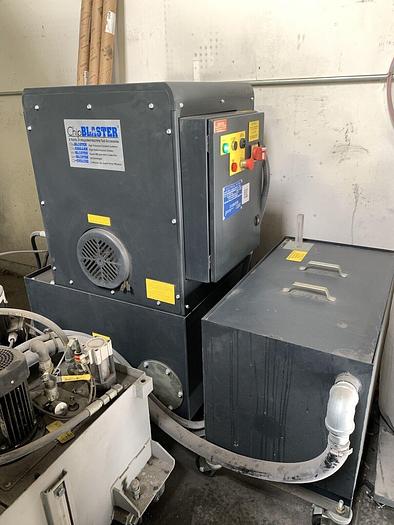

2 Pallet Changer System Full 4th Axis Rotary Table 1000 PSI Coolant Through the Spindle - (Chip Blaster)

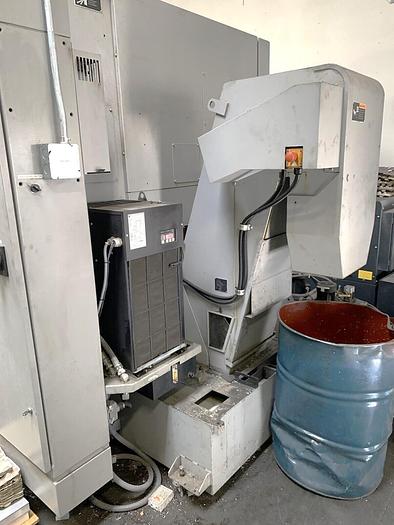

Chip Conveyor

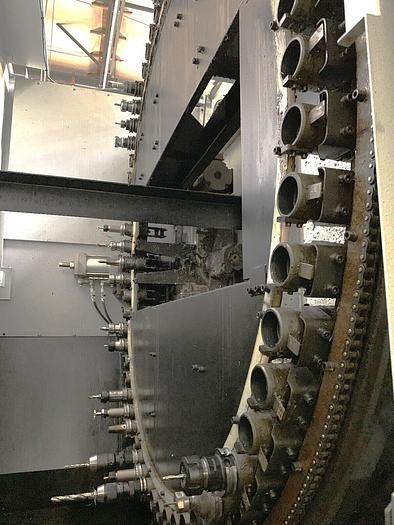

60 Station Tool Changer
12,000 RPM Spindle Remote Jog Handle
Flood Coolant with large separate coolant tank Rigid Tapping
Custom Macros
Spindle Orientation
200 Tool Coordinate/Offsets
99 Work Coordinate/Offsets
Pallet Seat Detection
50 MB Memory
Scales
USB Port Interface
RS 232 Port Interface All Available Manuals
(2) Tombstones
Specifications
| Manufacturer | DMG Mori |
| Model | NHX-5000 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 119030 |

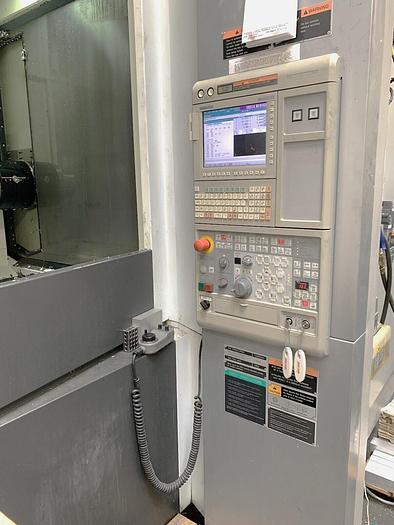

| Machine Control | Mitsubishi M730BM with MAPPS |
| Pallet Size / Number of Pallets | 19.7" x 19.7" / 2 Pallets |
| Maximum Weight on Table | 882 lbs. |
| Maximum Workpiece Height | 35.4" |
| Pallet Indexing | .001 Degrees |
| X-Axis Travel | 28.7" |
| Y-Axis Travel | 28.7" |
| Z-Axis Travel | 34.5" |
| Spindle Nose | #40 Taper |
| Spindle Speed | 12,000 RPM |
| Spindle Motor | 40 HP |
| Tool Magazine Capacity | 60 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 6.6" / 17.7" / 18 lbs. |
| Rapid Traverse Rates | 2,362 IPM |
| Cutting Feedrates | 984 IPM |
| Machine Dimensions LxWxH | 215" x 132" x 122" |
| Machine Weight | 33,000 lbs |
