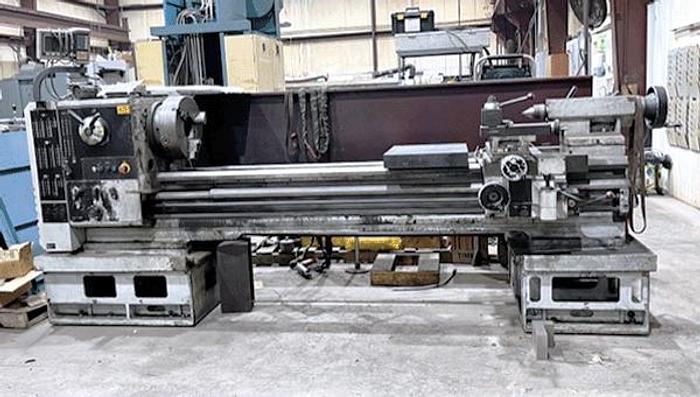

2001 Harrison M550 GH Engine Lathe
2001 Harrison M550 GH Engine Lathe
$23,500 (USD)
Location:Illinois
orCall (863) 439-6066
Description

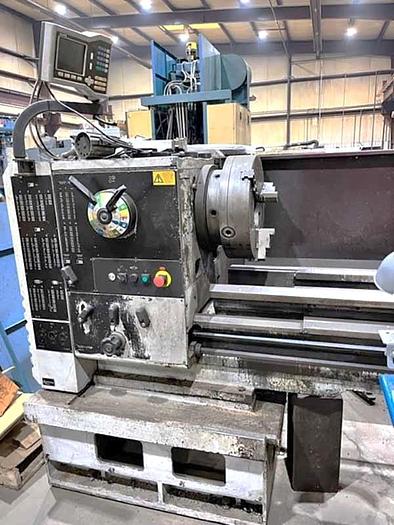

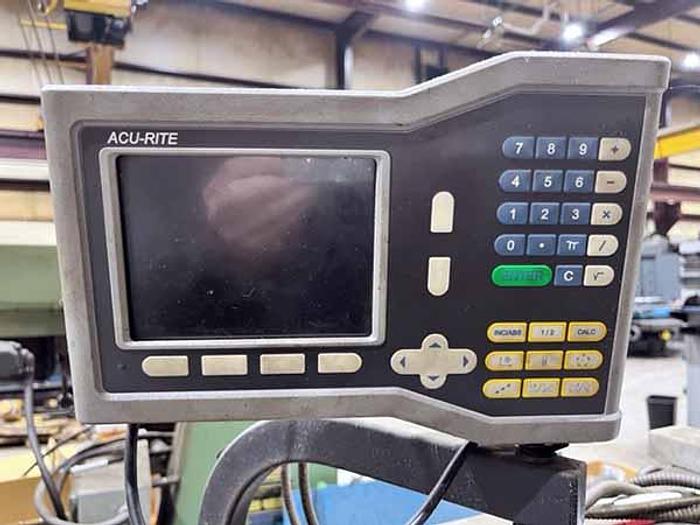

2 Axis Accurite Digital Readout

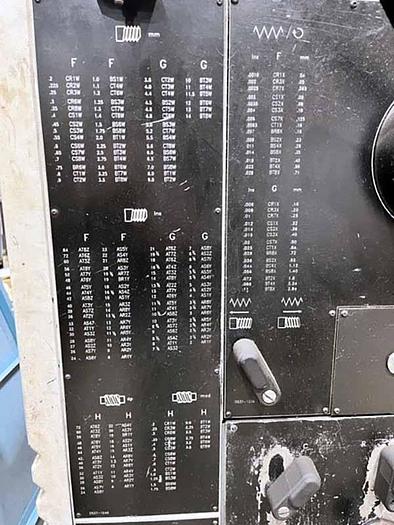

Inch/Metric Threading
Tailstock

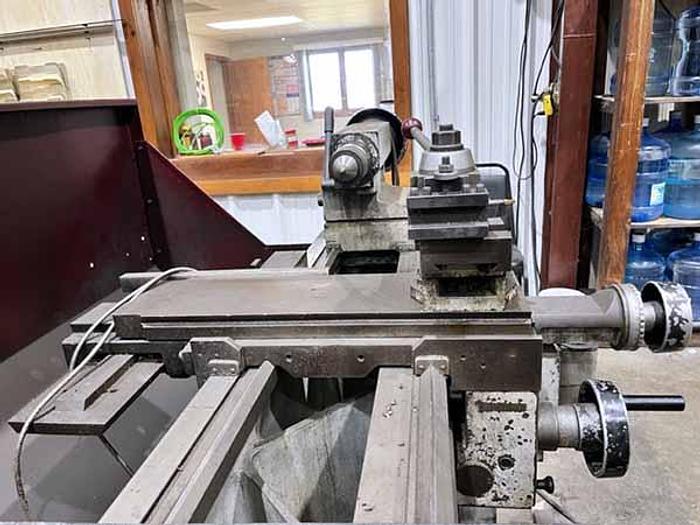

Tool Post

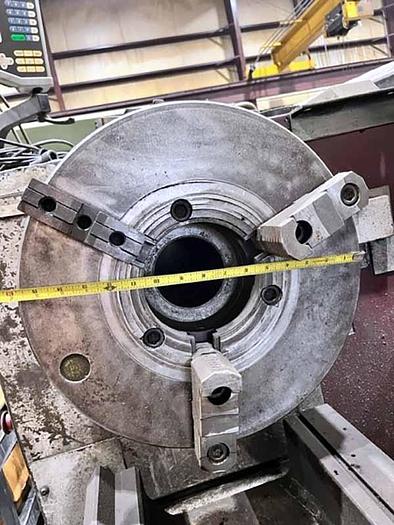

15.5" 3 Jaw Chuck
Coolant System
230-460V / 3 Phase / 60 HZ
All Available Manuals
Additional Miscellaneous Fixturing
Specifications
| Manufacturer | Harrison |
| Model | M550 GH Engine Lathe |
| Year | 2001 |
| Condition | Used |
| Stock Number | 119061 |
| Chuck Size | 15.5" 3 Jaw Chuck |
| Maximum Swing over Bed | 21.81" |
| Maximum Swing Over Cross Slide | 14.57" |
| Swing over Gap | 32.68" |
| Bed Width | 15.75" |
| Center Distance | 80" |
| Cross Slide Travel | 11.81" |
| Cross Slide Width | 8" |
| Compound Top Slide Travel | 7.5" |

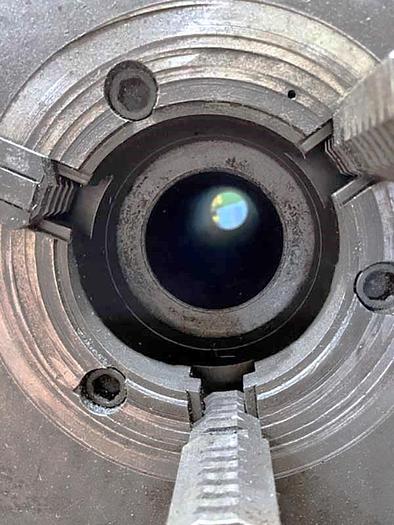

| Spindle Nose / Spindle Bore | D1-11 Camlock / 3" |
| Spindle Speeds | 18 - 1,800 RPM, 24 Speeds |
| Spindle motor | 10 HP |
| Number of Tool Positions | Aloris Style Tool Post |
| Longitudinal Feed Range | 0.0016 – 0.11 |
| Cross Feed Range | 0.0008 – 0.055 (48) |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.74" / 5.7" / #6 MT |
| Machine Dimensions LxWxH | 180"x63"x57" |
| Machine Weight | 7,942 lbs |
